Chapter 9 EtherNet/IP Communications

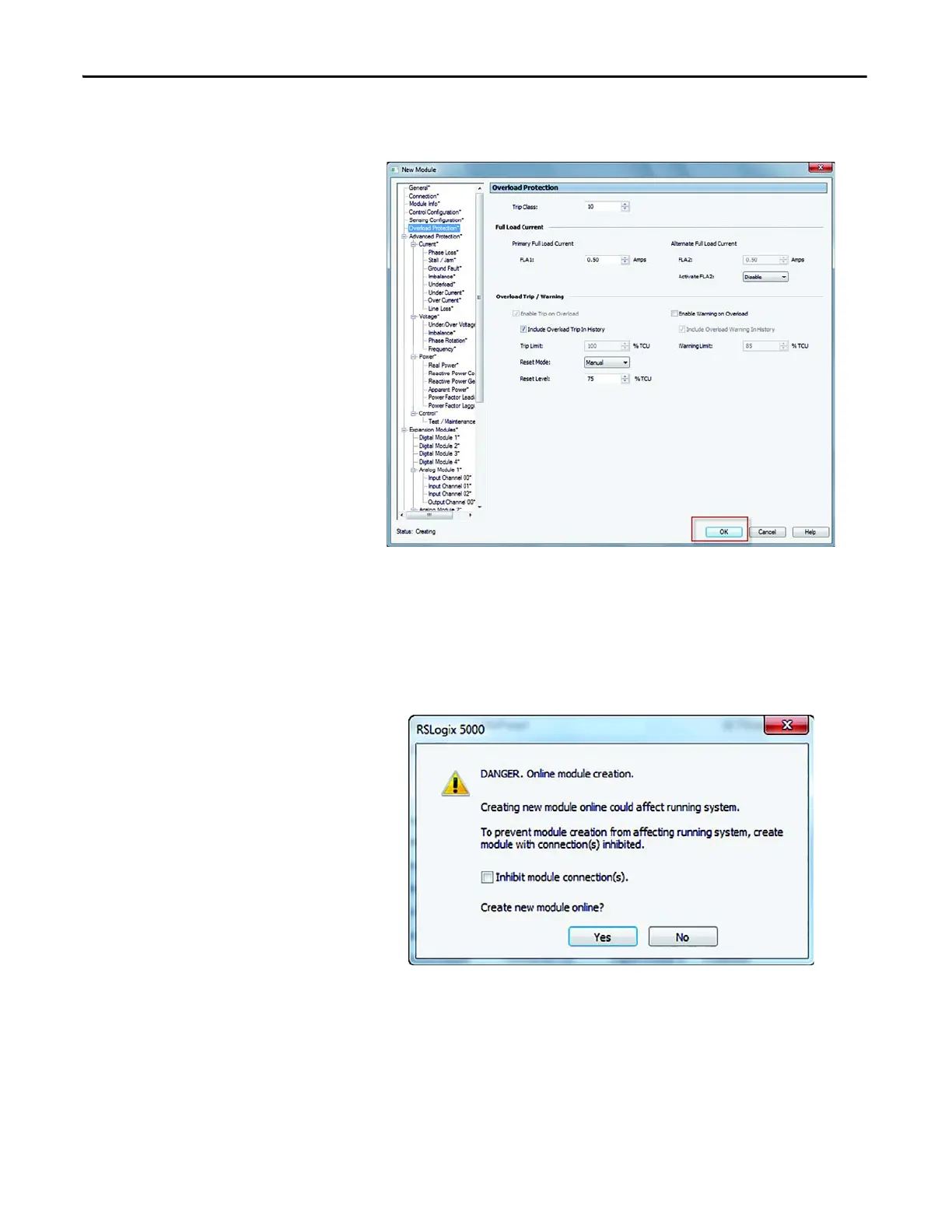

7. Navigate through the E300 Overload Relay device profile tree to make
additional configuration edits. When finished, press OK.
8. A display will appear verifying to create the module online. Press Ye s to add
the preconfigured E300 Electronic Overload Relay to the Ethernet tree
and communications between the E300 Electronic Overload Relay and
the ControlLogix controller will begin. The E300 Electronic Overload
Relay’s configuration data will be retained and stored in the ControlLogix
controller and in the RSLogix 5000 or Studio 5000 project. Press No to
return to the new module profile and make additional edits.
