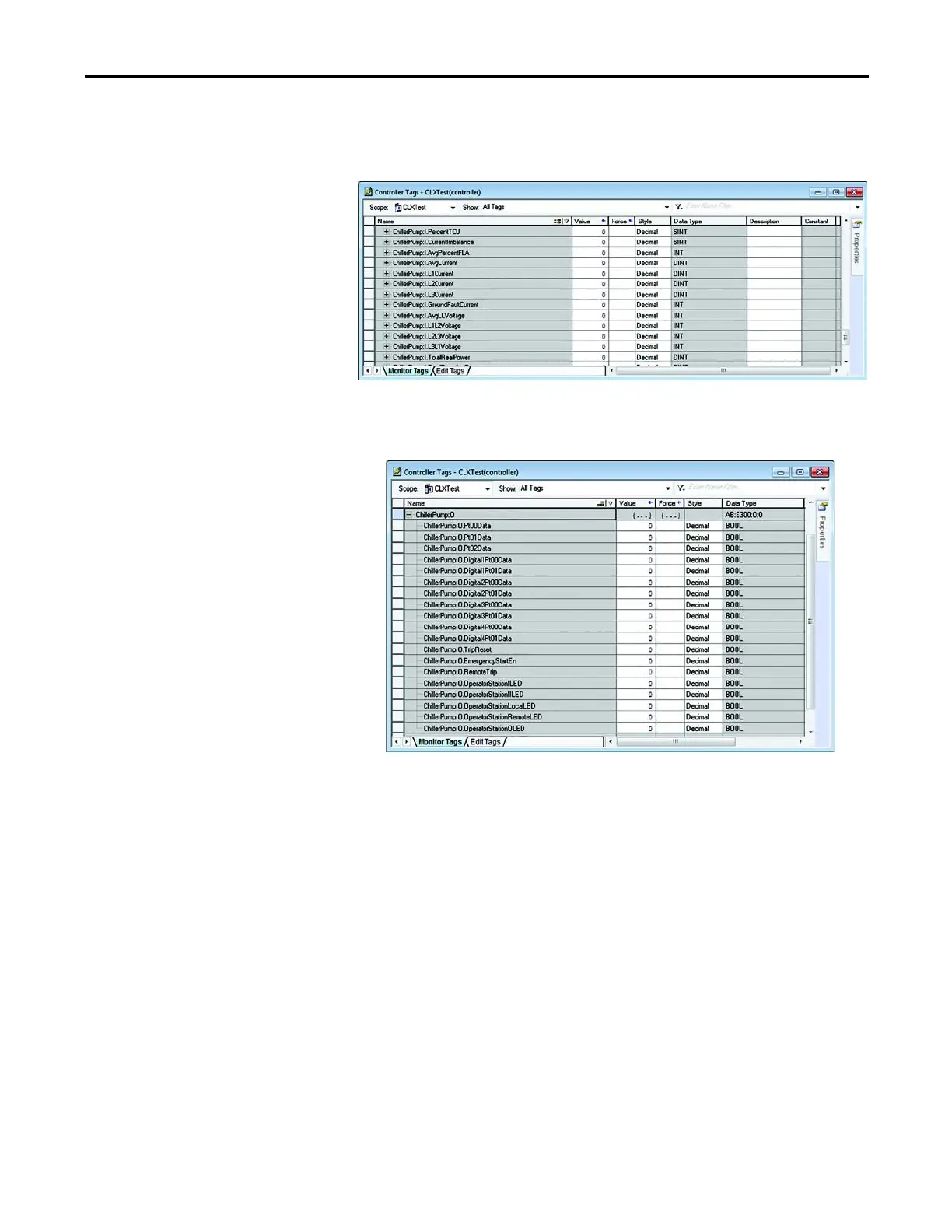

9. To access the data provided by the E300 Electronic Overload Relay
EtherNet/IP Communication Module, navigate to the input tags created
by the Add-on Profile.
10. To control the output relays or issue a remote reset command to the E300
Electronic Overload Relay navigate to the output tags created by the Add-
on Profile.
Manually Adding a New Module
You can manually add a preconfigured E300 Electronic Overload Relay offline to
any Logix processor, or you can manually add a preconfigured E300 Electronic
Overload Relay online to a ControlLogix processor. You can perform an upload
command to retain all of the E300 Electronic Overload Relay’s configuration
settings. Follow the steps provided to manually add an E300 Electronic Overload
Relay and retain its configuration settings with a new or existing RSLogix 5000
or Studio 5000 project. If you are running IntelliCENTER Integration Assistant
for Logix 5000, you can skip to step 4 and repeat these steps for each E300
Electronic Overload Relay that was added to the project while the project is
offline.
