EtherNet/IP Communications Chapter 9
Follow the steps provided to integrate an E300 Electronic Overload Relay using
the E300 Add-on Profile to a Logix controller offline:

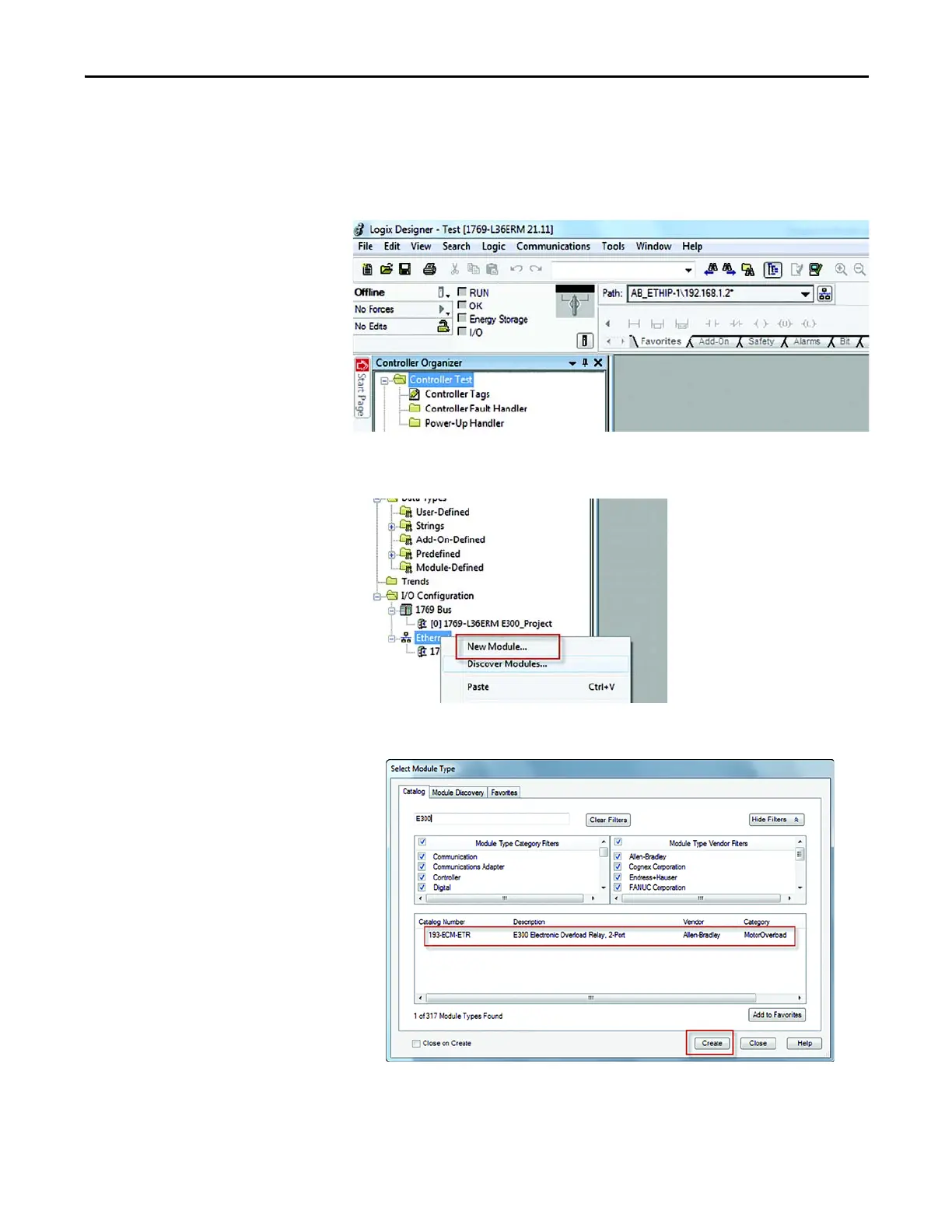

1. Create a new or open an existing RSLogix 5000 or Studio 5000 project
and verify that the Logix controller is offline.
2. Right-click on the EtherNet/IP scanner within the I/O Configuration
folder, then select New Module to open the Select Module Type window.
3. Select the E300 Electronic Overload Relay EtherNet/IP Communication
Module (193-ECM-ETR), then click Create.
