Chapter 9 EtherNet/IP Communications

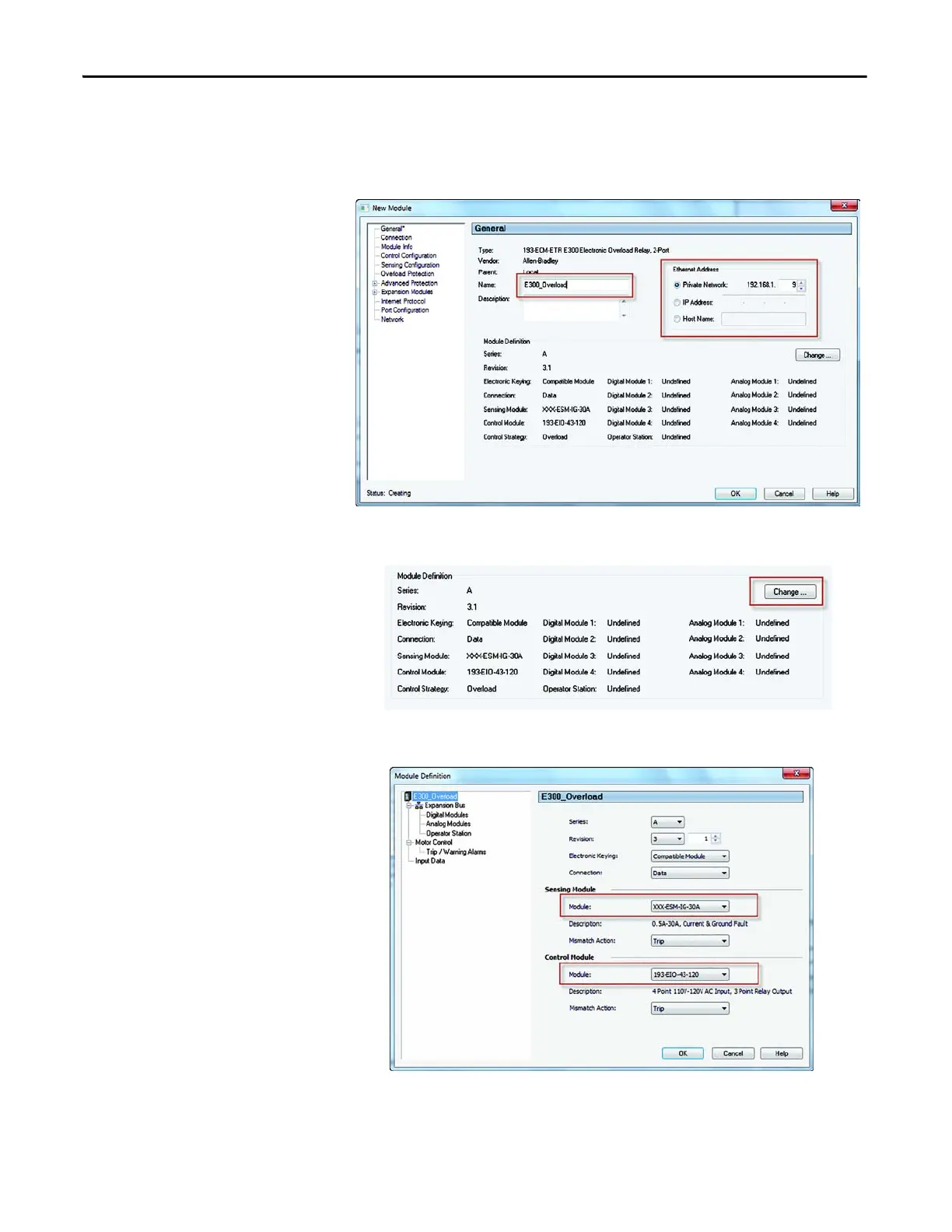

4. Enter a name and the IP address for the E300 Electronic Overload Relay
EtherNet/IP Communication Module. The name creates tags in RSLogix
5000 or Studio 5000 that can be used to read and write data from the E300
Electronic Overload Relay EtherNet/IP Communication Module.
5. Select Change to select the modules and accessories of the E300 Electronic
Overload Relay system.
6. Select the specific E300 Electronic Overload Relay Sensing and Control
Modules and their respective Option Match actions.
7. Right click on the Expansion Bus to add the specific Expansion Bus
accessories for the E300 Electronic Overload Relay system and select their
specific Option Match action. When finished, press OK.
