EtherNet/IP Communications Chapter 9

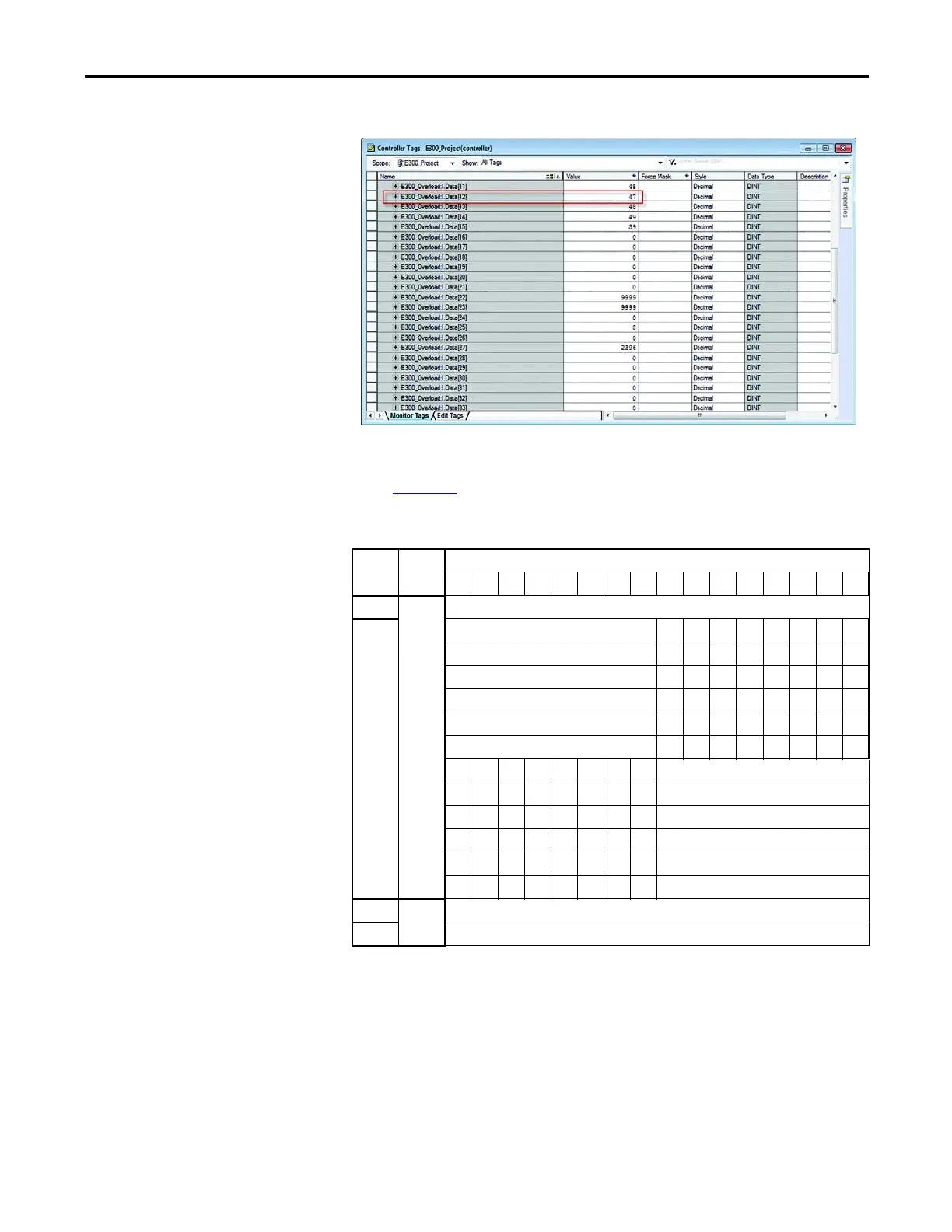

For example, E300_Overload:I.Data[12] represents L1 Current as shown below.
8. To control the output relays or remotely reset the E300 Electronic
Overload Relay, navigate to the output tags created by the Generic Profile.
Table 499 represents the Input Assembly data.
Table 499 - Instance 144 - Output (Consumed) Assembly
For example, E300_Overload:O.Data[0].0 represents Relay Output Pt00 as
shown below.
Bit
INT DINT1514131211109876543210
0
0
OutputStatus0
1
NetworkStart1 X
NetworkStart2 X
TripReset X
EmergencyStart X
RemoteTrip X
Reserved X X X
XHMILED1Green
XHMILED2Green
XHMILED3Green
X HMILED3Red
X HMILED4Red
X X X Reserved
2
1
DLXPtDeviceIn
3
DLXAnDeviceIn
