Basic Relay Operations
Making Simple Settings Changes
Conversely, the Port settings command has five instances (PORT F, PORT 1,
PORT 2, PORT 3, and PORT 5). To access the PORT 1 settings, type SET P 1
<Enter>. If you do not specify which port to set, the relay defaults to the
active port (the port you are presently using).
The Group settings can have the optional one-letter acronym S attached to the
command; you can enter SET 1 or SET S 1 for Group 1 settings, SET 2 or
SET S 2 for Group 2 settings, etc. If you do not specify which group to set, the
relay defaults to the present active group. If Group 6 is the active group, and
you type SET <Enter>, for example, you will see the settings prompts for the
Group 6 settings.
Settings: Terminal
When you change settings (with any SET command) from a terminal, the
relay shows the setting category, prompt, present value, and action prompt.
Figure 4.11 shows two settings examples: multiple-line settings (SID and
RID) and an in-line setting (NUMBK) for relay Global settings from Access
Level P (protection). The relay prompts you for input by presenting an action
prompt. You have many options for navigating the settings at the
? action
prompt.
Table 4.6 lists the operations possible from a settings action prompt.

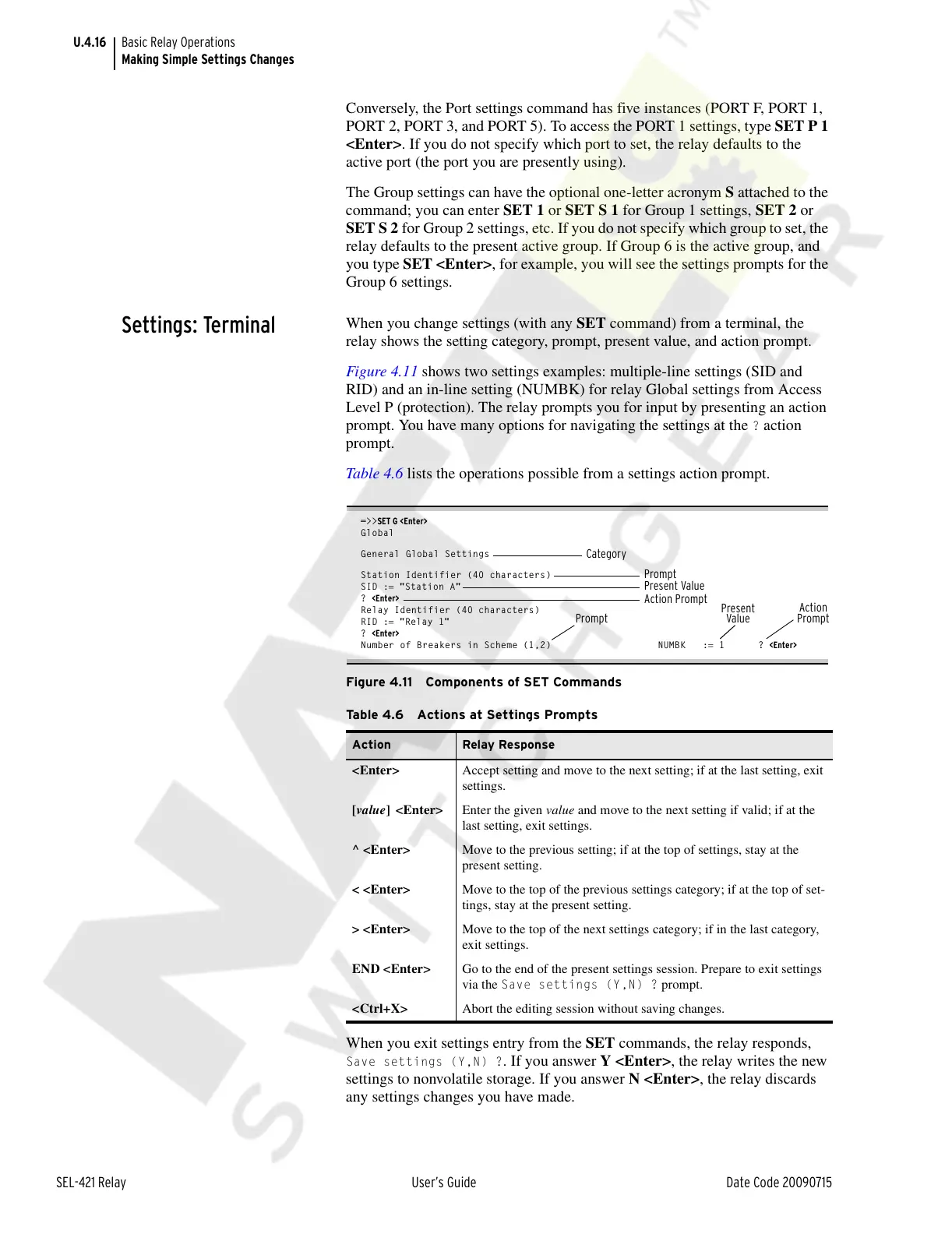

Figure 4.11 Components of SET Commands
When you exit settings entry from the SET commands, the relay responds,
Save settings (Y,N) ?. If you answer Y <Enter>, the relay writes the new
settings to nonvolatile storage. If you answer N <Enter>, the relay discards
any settings changes you have made.
Table 4.6 Actions at Settings Prompts
Action Relay Response
<Enter> Accept setting and move to the next setting; if at the last setting, exit
settings.
[value]
<Enter> Enter the given value and move to the next setting if valid; if at the
last setting, exit settings.
^ <Enter> Move to the previous setting; if at the top of settings, stay at the
present setting.
< <Enter> Move to the top of the previous settings category; if at the top of set-
tings, stay at the present setting.
> <Enter> Move to the top of the next settings category; if in the last category,
exit settings.
END <Enter> Go to the end of the present settings session. Prepare to exit settings
via the
Save settings (Y,N) ? prompt.
<Ctrl+X> Abort the editing session without saving changes.
=>>SET G <Enter>
Global
General Global Settings
Station Identifier (40 characters)
SID := "Station A"
? <Enter>
Relay Identifier (40 characters)
RID := "Relay 1"
? <Enter>
Number of Breakers in Scheme (1,2) NUMBK := 1 ? <Enter>
Category
Prompt
Present Value
Action Prompt
Prompt
Present
Action
Value
Prompt
