Firmware and Manual Versions
Firmware
The optional Ethernet card (SEL-2701 or SEL-2702) must be paired with a
compatible SEL-421 or SEL-421 version. You may need to upgrade your
SEL-421
firmware to access features in new versions of the Ethernet cards.
Table A.1 includes notes on SEL-421 modifications that support new features
of the Ethernet cards.
To find the firmware revision number in your Ethernet card, first connect to
the SEL-421 with the ACC command. View the FIDs with the VERSION
command. Look for the Ethernet card Firmware Identification (FID) label in
the response under Communications Card:
FID=SEL-270x-Rxxx-Vx-Zxxxxxx-Dxxxxxxxx
In the FID label, the 4 digits after “SEL” indicate which Ethernet card is
installed. The firmware revision number follows the R and the release date fol-
lows the D.
For example,
SEL-2701-R108-V0-Z002001-D20051205
is for an SEL-2701 Ethernet card, firmware revision number 108, release date
December 5, 2005.
Table A.3 lists current Ethernet card firmware versions with compatible
SEL-421 versions.
Newer SEL-2702 card firmware (R106 and higher) uses a different software
library from lower versions and is unable to process version 001 CID files.
ACSELERATOR Architect generates CID files from ICD files so the ICD file
SEL-2702-R104-V0-Z001001-D20070717
SLBT-2701-R102-V0-Z000000-D20051107
➤ Made improvements to IEC61850 control operation priorities
when using IEC61850 GOOSE messaging.
➤ Allocated additional memory for read/write of large IEC 61850
messages.
➤ Fixed ability to pulse Breaker and Latch control bits using DNP
LAN/WAN when DNPMAP = AUTO.
20070717
SEL-2702-R103-V0-Z001001-D20070223
SLBT-2701-R102-V0-Z000000-D20051107
➤ Added support for synchrophasors over Ethernet. 20070223
SEL-2702-R101-V0-Z000000-D20060808
SLBT-2701-R102-V0-Z000000-D20051107
➤ Added support for pulse operations on DNP LAN/WAN control
points, both paired and unpaired.
➤ Added ability to sense local operations and update IEC 61850
origination category.
20060808
SEL-2702-R100-V0-Z000000-D20060630
SLBT-2701-R102-V0-Z000000-D20051107
➤ Initial version. 20060703
Table A.2 Ethernet Card Firmware Revision History (Sheet 2 of 2)
Firmware Identification (FID) Number Summary of Revisions
Manual
Date Code

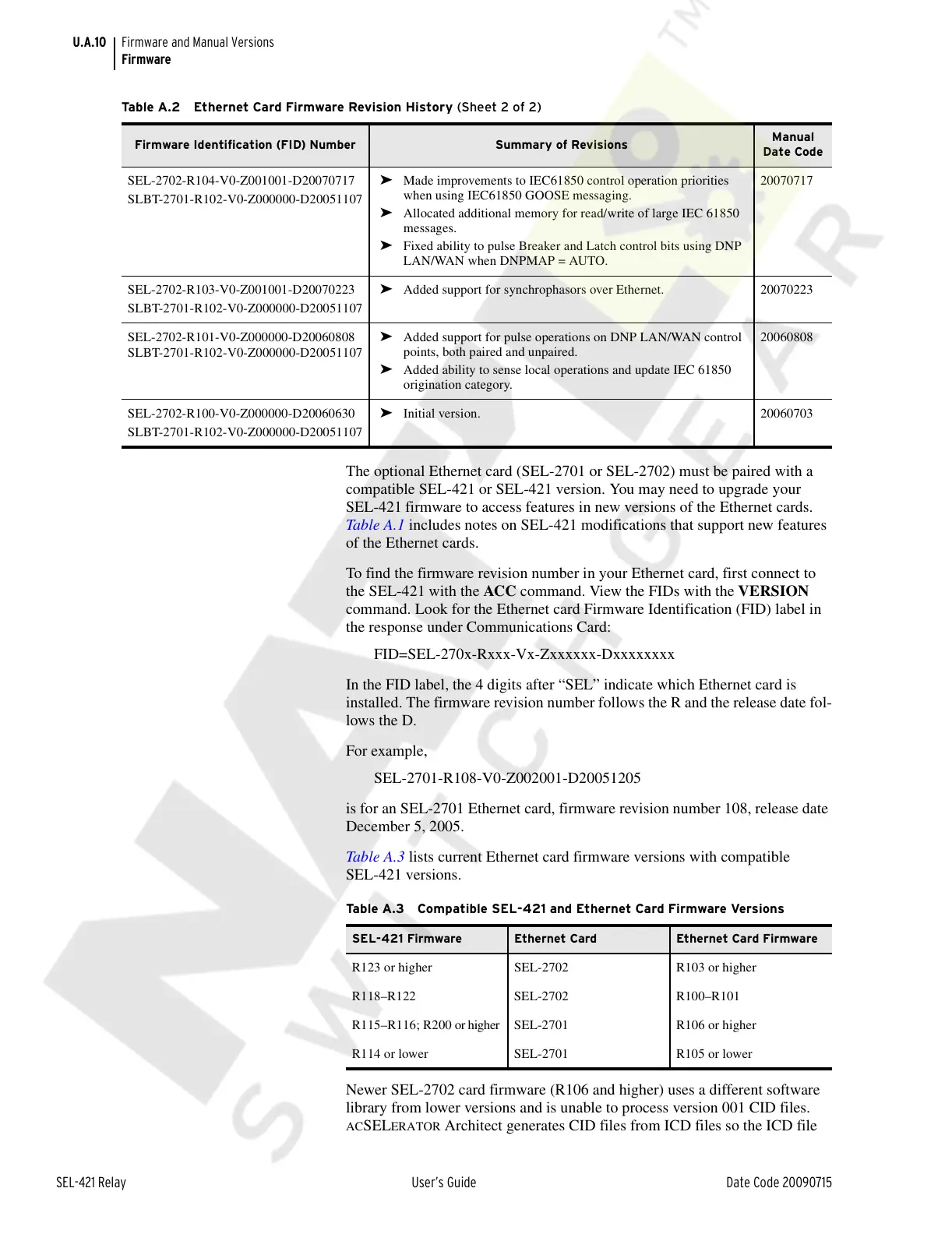

Table A.3 Compatible SEL-421 and Ethernet Card Firmware Versions
SEL-421 Firmware Ethernet Card Ethernet Card Firmware
R123 or higher SEL-2702 R103 or higher
R118–R122 SEL-2702 R100–R101
R115–R116; R200 or higher SEL-2701 R106 or higher
R114 or lower SEL-2701 R105 or lower
