U.2.3
Date Code 20090715 User’s Guide SEL-421 Relay
Installation
Shared Configuration Attributes

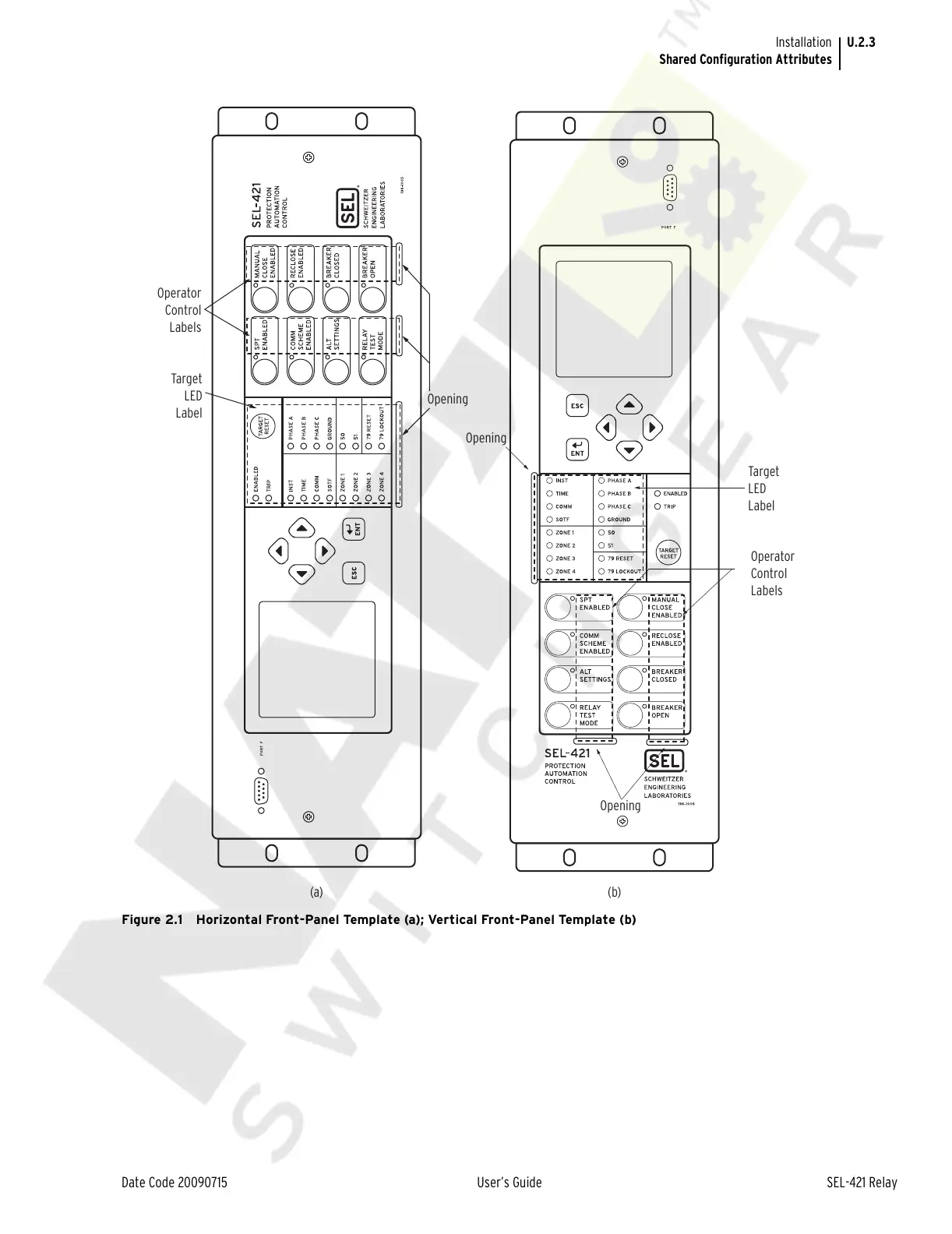

Figure 2.1 Horizontal Front-Panel Template (a); Vertical Front-Panel Template (b)
Operator
Control
Labels
Target
LED
Label
Opening
(a) (b)
Opening
Target
LED
Label
Opening
Operator
Control
Labels
Courtesy of NationalSwitchgear.com
