Basic Relay Operations
Operating the Relay Inputs and Outputs

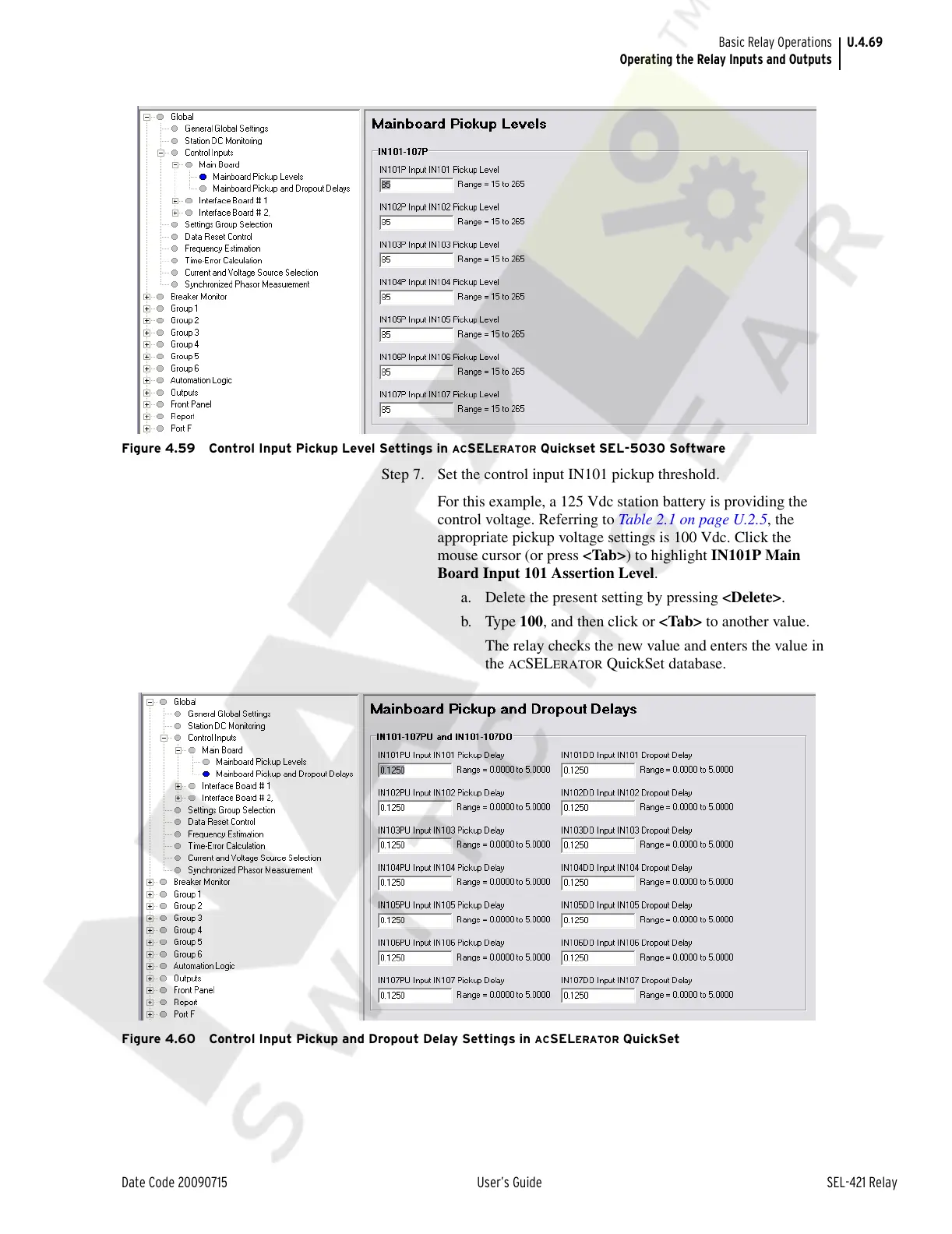

Figure 4.59 Control Input Pickup Level Settings in ACSELERATOR Quickset SEL-5030 Software
Step 7. Set the control input IN101 pickup threshold.
For this example, a 125 Vdc station battery is providing the
control voltage. Referring to Table 2.1 on page U.2.5, the
appropriate pickup voltage settings is 100 Vdc. Click the
mouse cursor (or press <Tab>) to highlight IN101P Main
Board Input 101 Assertion Level.
a. Delete the present setting by pressing <Delete>.
b. Type 100, and then click or <Tab> to another value.
The relay checks the new value and enters the value in
the
ACSELERATOR QuickSet database.
Figure 4.60 Control Input Pickup and Dropout Delay Settings in ACSELERATOR QuickSet
