Operation - Operating instruments
6 - 10
830 / 07.2012
Original operating instructions

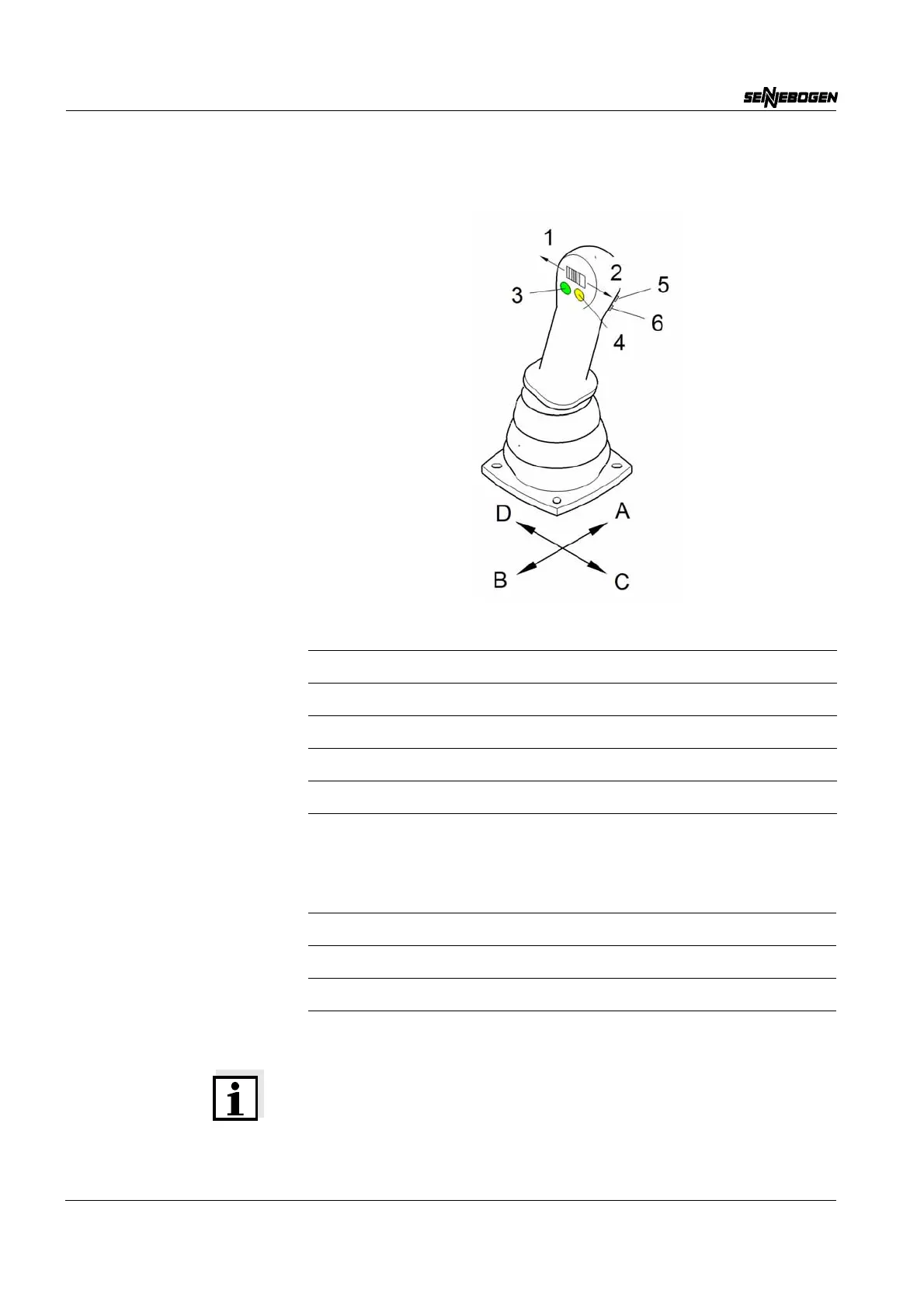

6.3.3 Control lever, left
Directions of movement
Note
The bypasses for the safety limit shutdown “Retract/extend stick” and
“Hoist up/down”.
Item Description
1 Grab, swing left (proportional)
2 Grab, swing right (proportional)
3Unused
4Horn
5Unused
6 Boom shutdown bypass
Direction Description
A
Extend stick
B
Retract stick
C
Swing upper structure, right
D
Swing upper structure, left
