Operation - Operating instruments
6 - 28
830 / 07.2012
Original operating instructions

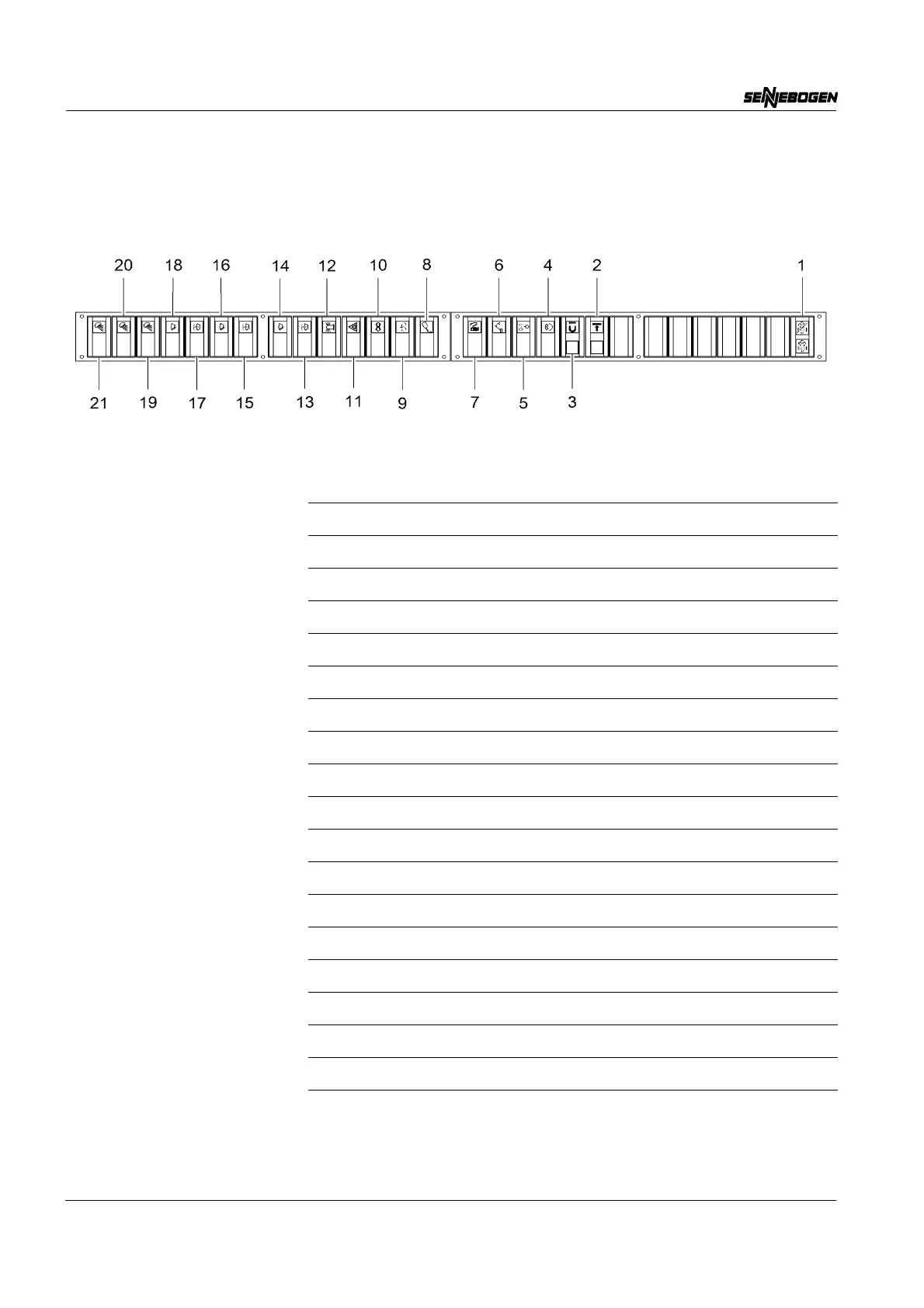

6.3.12Control panel, top right
Item Description
1 Start/cancel particulate filter regeneration
2* Auxiliary limiting boom, extend stick
3* Magnet unit
4 Grab control
5* Grab function
6* Floating boom setting
7* Diesel filter heating off/on
8 Central lubrication
9 Swing ring lubrication
10 Direction indicator
11 Flashing warning lamps
12* Flashing alarm lamp
13* Front window washer system, lower
14* Front windscreen wiper, bottom
15* Roof light washer system
16* Rooftop window wiper
17 Front window washer system
18 Front windscreen wiper
19* Headlights, upper structure
