Operation - Work application
6 - 55
830 / 07.2012
Original operating instructions
Extending the full
outriggers

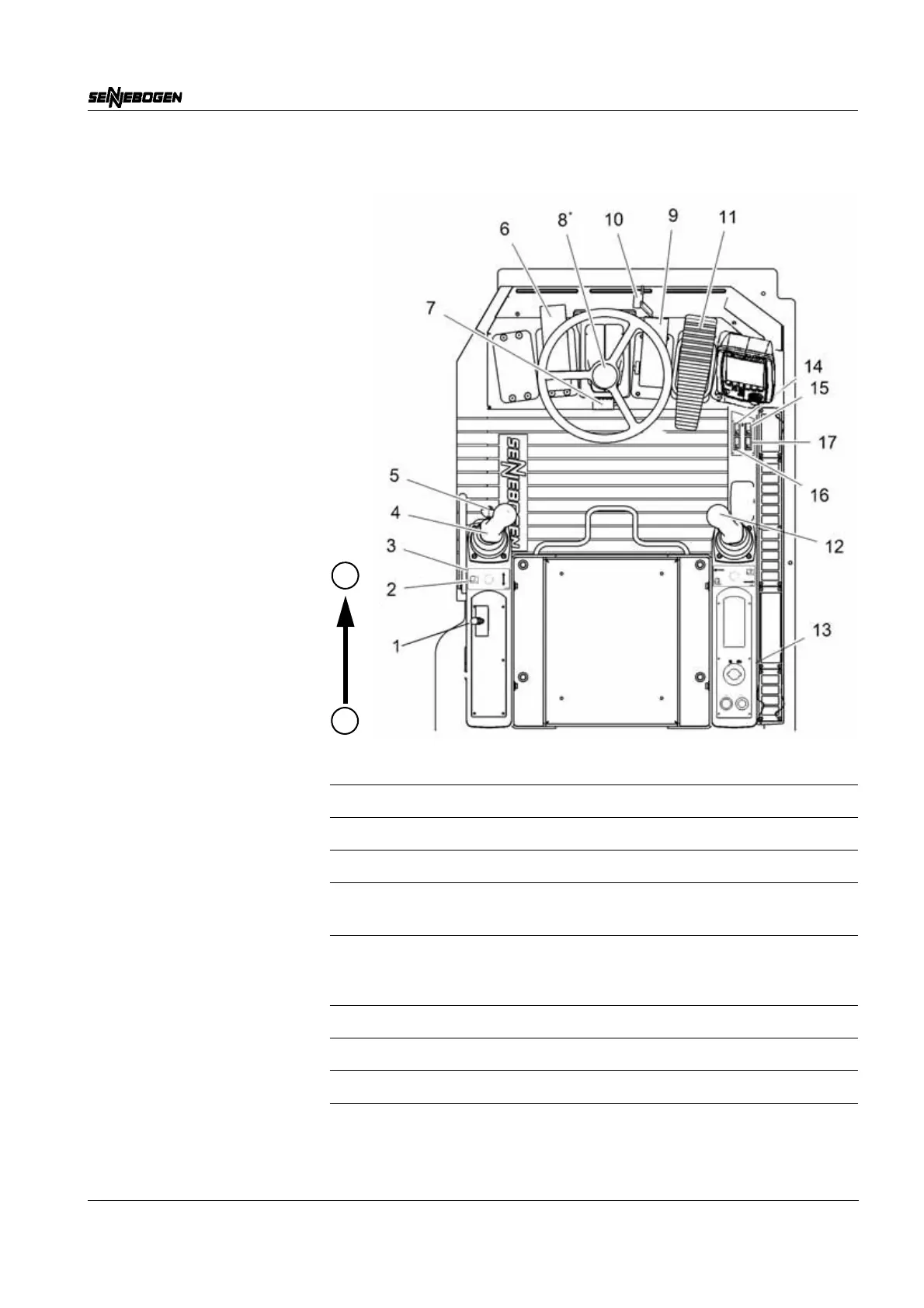

Item Description
Total actuation
1 Outrigger lever
a Forward = extend
b Back = retract
(push lever as far as it will go)
Individual actuation
Outrigger
14 Front left
15 Front right
16 Rear left
17 Rear right
