Operation - Work application
6 - 70
830 / 07.2012
Original operating instructions

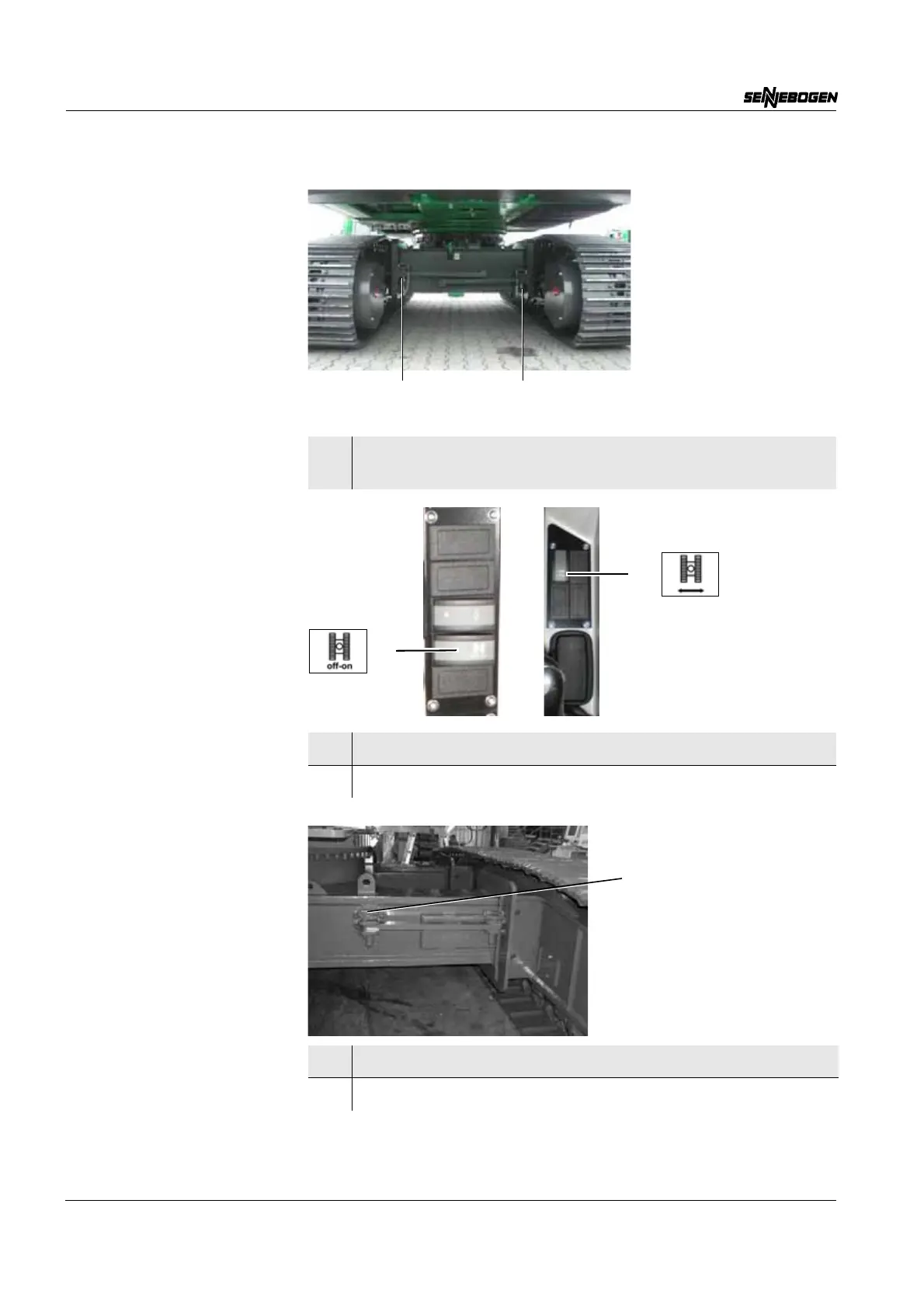

Extending
the running gear
1 Unlock and remove the 4 locking bolts (1) on the telescoping
running gear of the undercarriage.
2 Enable telescoping with switch (2).
3 Use switch (3) to extend the undercarriage.
4 Reinsert the 4 locking bolts (1) and secure.
5 Disable the telescoping function with switch (2).
