Operation - Work application
6 - 84
830 / 07.2012
Original operating instructions

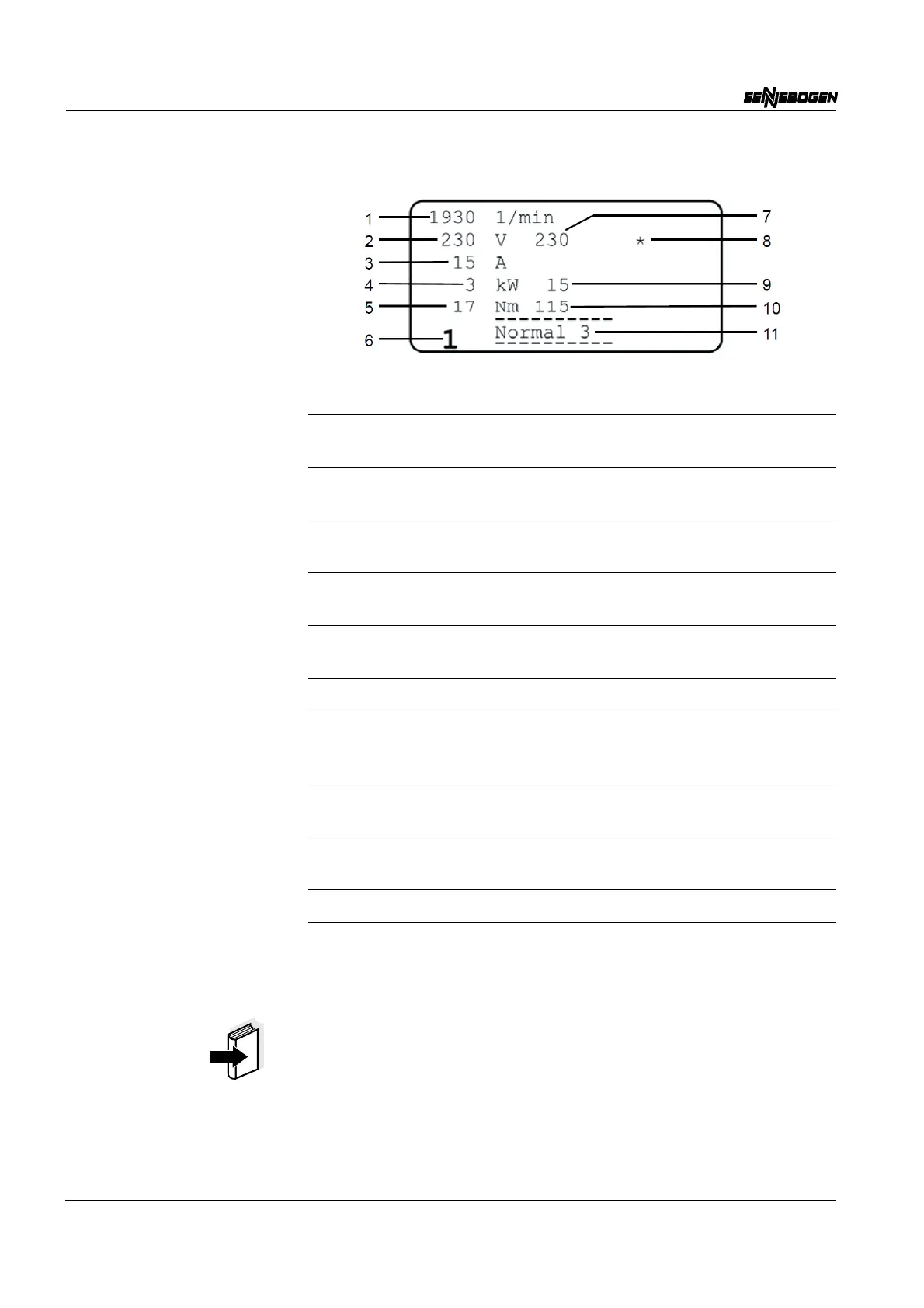

Overview of the display
Note
Additional information on the control unit (4) can be found in Chapter
10.
Designation Function
Speed (1) Displays the current drive speed of the
generator.
Magnetic voltage (2) Displays the magnetic voltage currently
being applied.
Magnetic current (3) Displays the present current measured on
the magnetic plate.
Power consumption (4) Displays the current power consumption on
the magnetic plate.
Torque (5) Displays the current torque on the
generator drive.
Program display (6) Displays the selected program.
Magnetic voltage
preselection (7)
Displays the set maximum magnetic
voltage (for special applications with
reduced magnetic force).
Programming mode (8) Programming mode active. The parameter
marked “*” can be selected for processing.
Magnetic power
preselection (9)
Displays the set maximum magnetic power
(load limit sensing control).
Torque preselection (10)
Displays the set maximum torque.
Plain text display (11) Displays system and operating statuses as
well as error messages.
