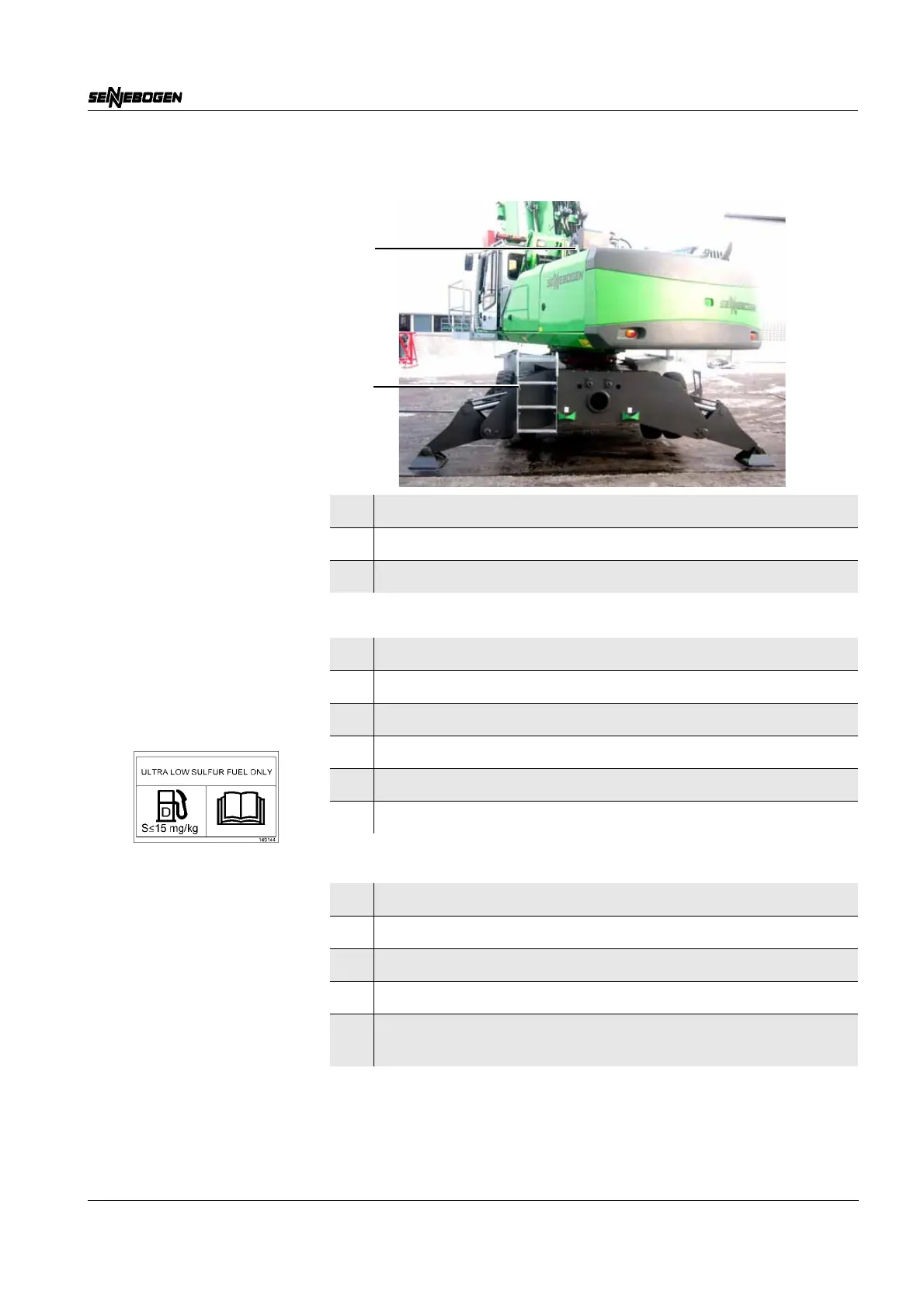

Operation - Refueling the machine
6 - 87
830 / 07.2012
Original operating instructions
Manually
Using a refueling pump
1 Swivel the upper structure 30 degrees to the left.
1 Lower attached loads and the boom to the ground.
2 Shut down the engine.
3 Using the step (2), climb onto the step grid at the rear left.
4 Open the filler strainer cap (1).
5 Clean the strainer.
6 Insert a funnel in the filler strainer.
7 Carefully pour in fuel through the funnel.
8 Close the cover (1) again.
1 Lower attached loads and the boom to the ground.
2 Shut down the engine.
3 Move the key switch to the āPā position.
4 Open the left rear service access door.
5 Open the filler strainer cap.
This will allow air to escape from the fuel tank.
