Siemens SIMOCODE pro System Manual

Mounting, wiring, interfaces
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
13-27

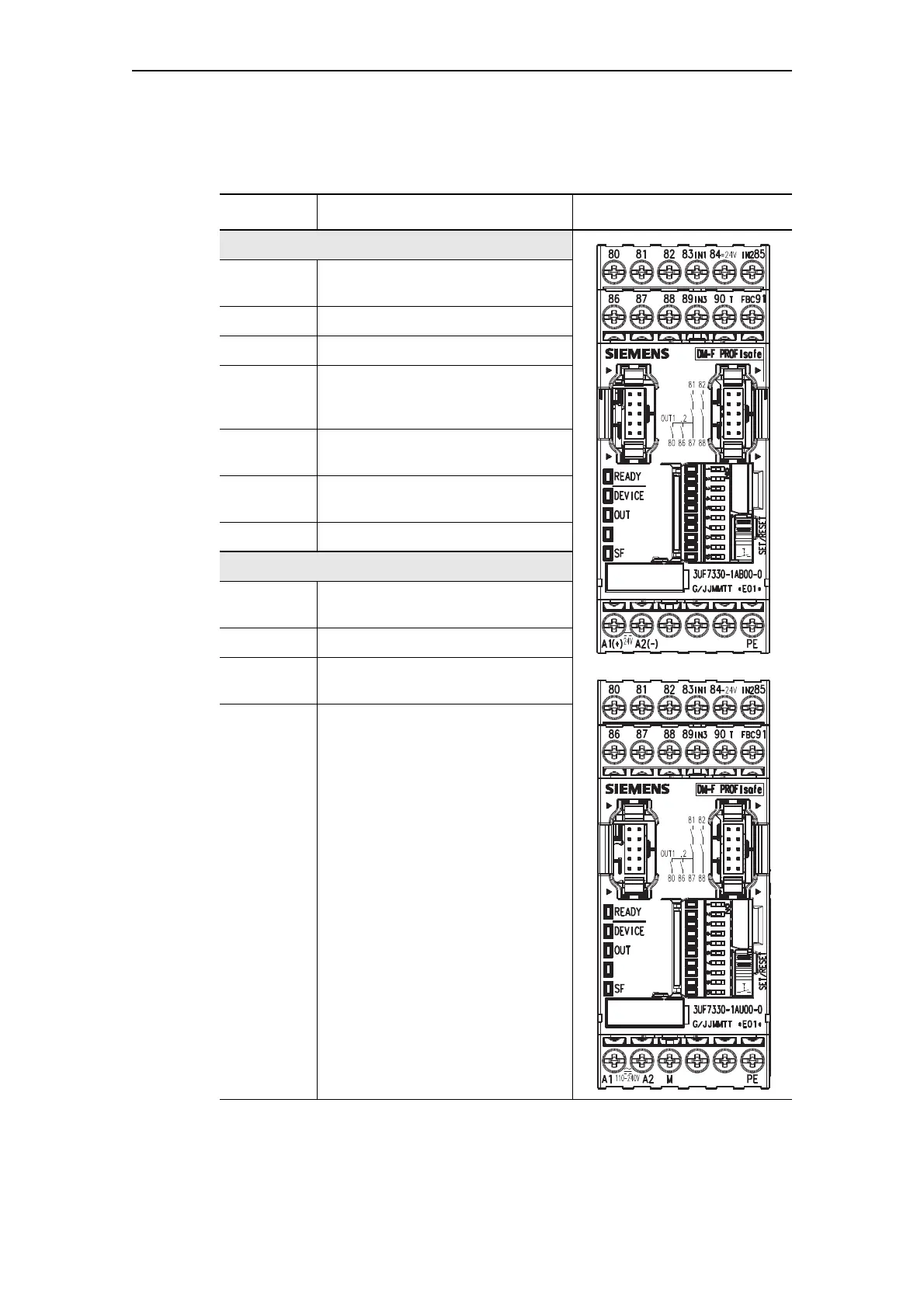

Digital module DM-F PROFIsafe pin assignment
The following table shows the pin assignment of the removable terminals:
Table 13-12: Pin assignment of the removable terminals of the digital module DM-F PROFIsafe,
24 V DC version and 110-240 V UC version
Connection Assignment
Upper terminals
80, 86 Digital module, relay outputs 1 (80)
and 2 (86)
81, 87 Relay enabling circuit 1, NO contact
82, 88 Relay enabling circuit 2, NO contact
83 (IN1)
85 (IN2)
89 (IN3)
Digital module inputs 1,2,3
84 Digital module supply
Inputs 1 to 3 24 V DC
90 (T) Feedback circuit supply (FBC)
24 V DC
91 (FBC) Feedback circuit
Lower terminals
A1(+) Voltage supply connection 110 to
240 V AC/DC or +24 V DC
A2(-) N or -24 V
M Ground (reference potential inputs,
only 3UF7320-1AU00-0)
PE Protective earth

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
