Siemens SIMOCODE pro System Manual

System description
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
1-75
Displays the current status of all device I/Os
The "Device I/Os" menu item gives a complete overview of the current
status of all inputs and outputs of the basic unit and any connected
expansion modules (except for the earth-fault module) The type of status
information displayed is, therefore, directly dependent upon the
SIMOCODE pro hardware configuration.

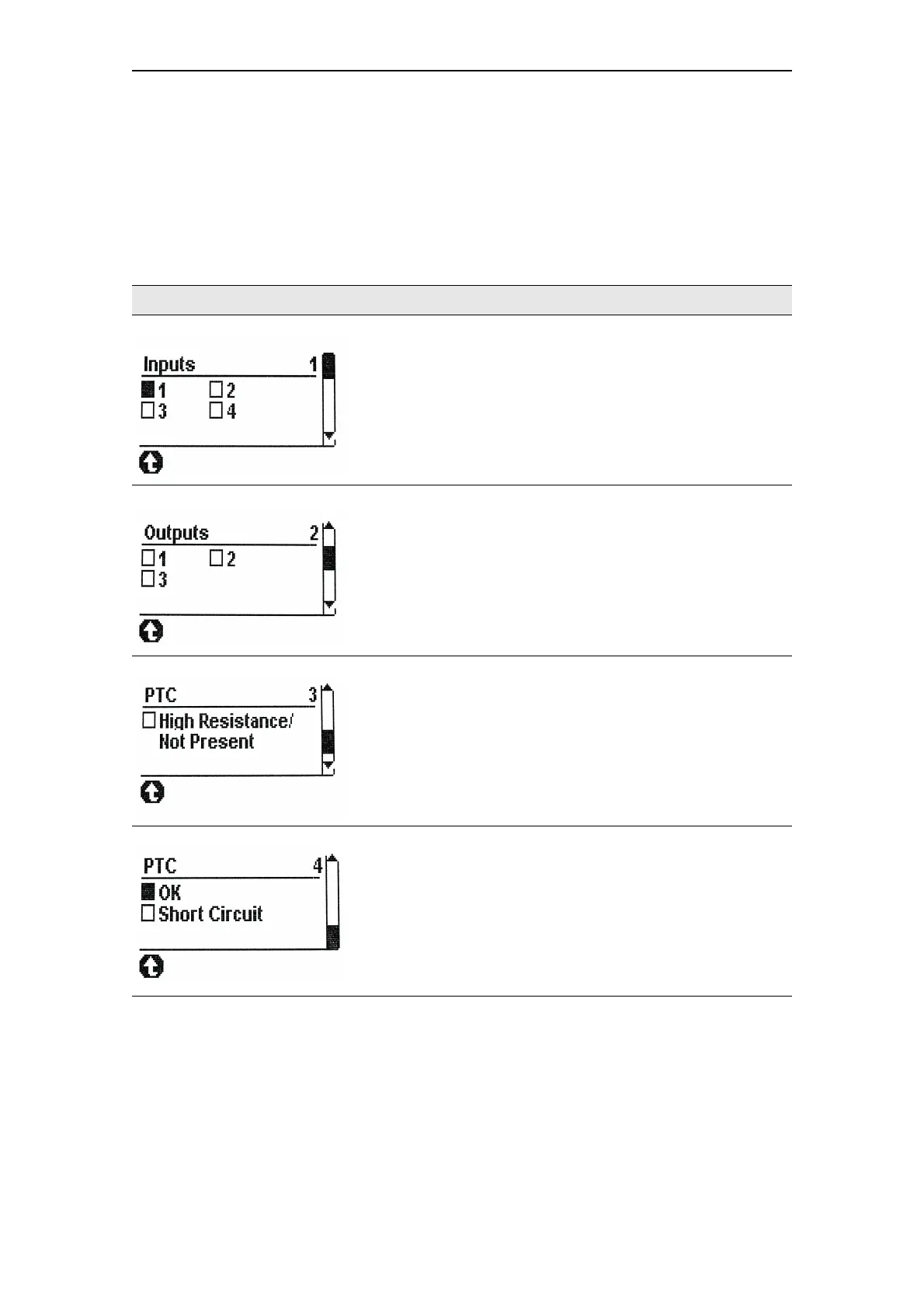

Here are the most important menus:
Basic unit
Inputs 1, 2, 3, 4
Outputs 1, 2, 3
PTC high resistance/not present
PTC ok, PTC short circuit

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
