Siemens SIMOCODE pro System Manual

System description
SIMOCODE pro
1-76 GWA 4NEB 631 6050-22 DS 03

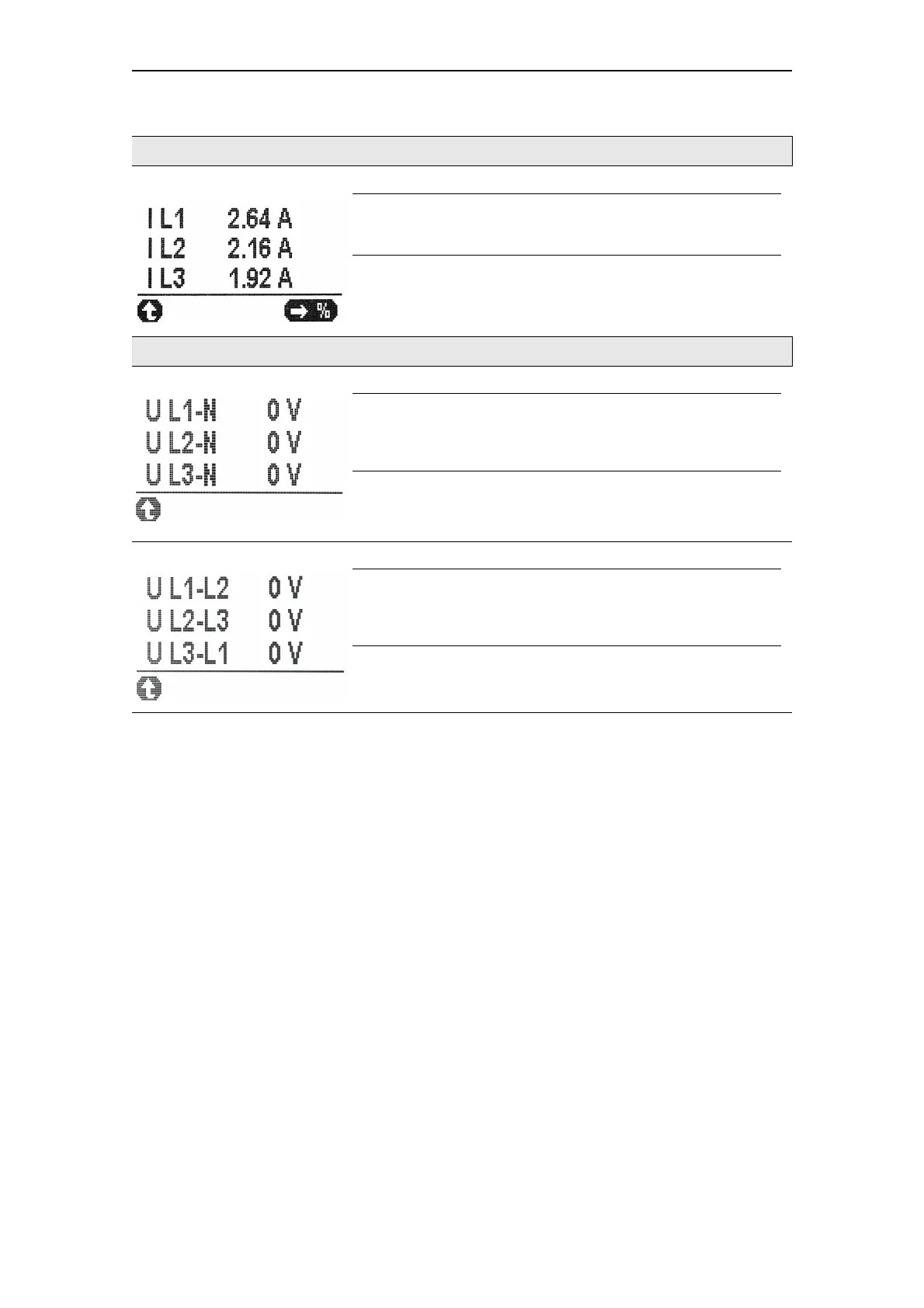

Current measuring
I L1, I L2, I L3 Displays the currents in all three phases in A.
Note
Only available if a current measuring module or current/voltage
measuring module is used.
Voltage measurement
UL1-N, UL2-N, UL3-N (example) Displays all phase voltages in V.
Note
Only possible if a current/voltage measuring module is being used.
If an OPD above version *E04* is used: Values will only be
displayed if phase voltage is set/configured.
U L1-L2, U L2-L3, U L3-L1 Displays all line-to-line voltages in V.
Note
Only possible if a current/voltage measuring module is being used,
line-to-line voltage is set/configured and the OPD used is above
version *E04*.
Table 1-15: Displays the current status of all device I/Os

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
