Expanding the Operator Interface (BE1) 08/2005
3 Syntax
© Siemens AG, 2005. All rights reserved
BE1/3-26 SINUMERIK 840D sl/840D/840Di/810D HMI Installation and Start-Up Guide (IAM) – 08/2005 Edition

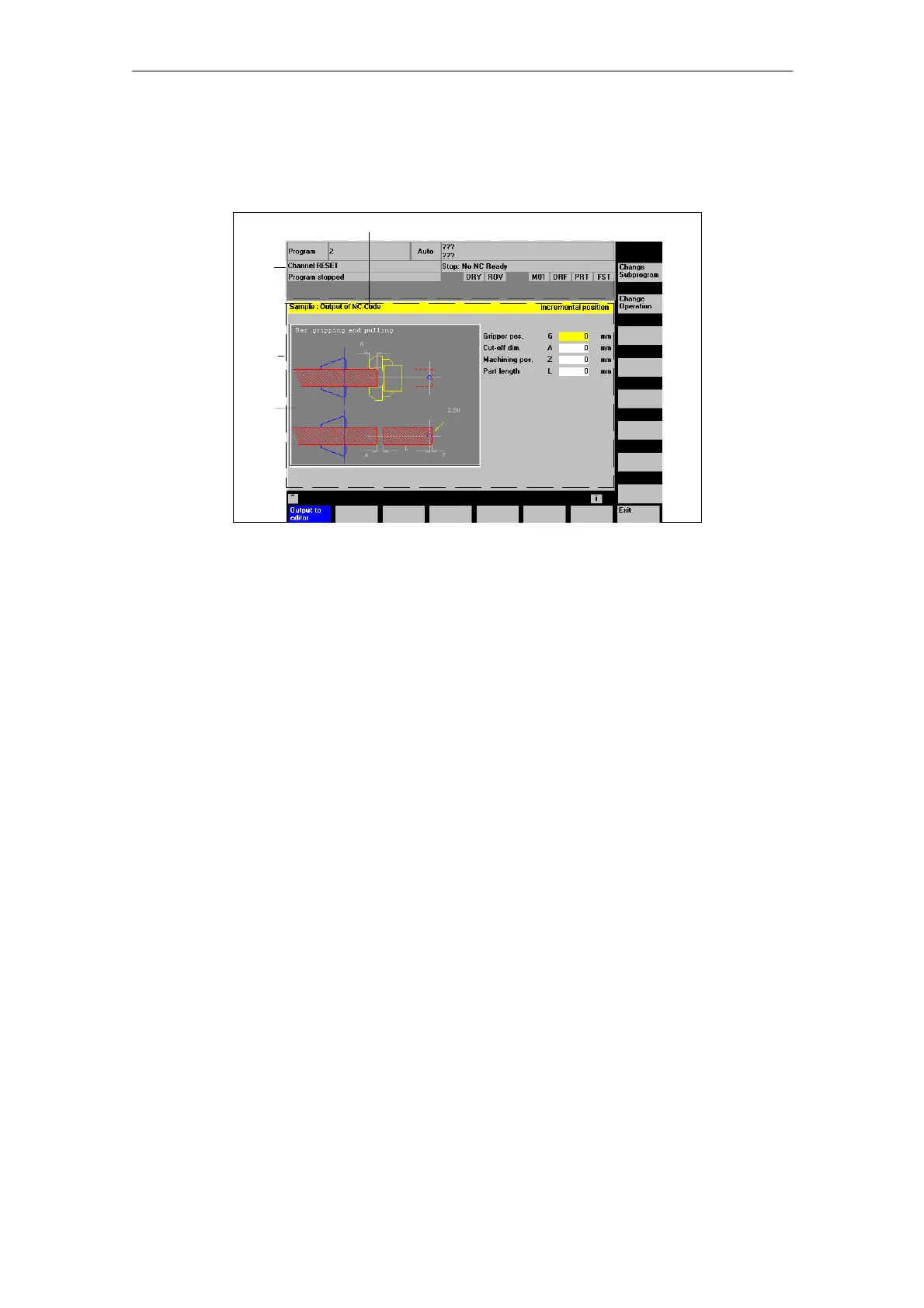

3.3.2 Screen form properties
Graphic
Display line with headline
Header
Main body
of screen
form
The properties of the screen form are defined in the start identifier line of the form
screen:
//M(Identifier/[Header]/[Graphic]/[Dimension]/[System or user variable]/[Graphic
position]/[Attributes])
where:
Identifier Name of the screen form
Header Screen form header as text or call for text
(e.g., $85011) from a language-specific
text file (see Section 7.1 General information about the
configuring environment).
Graphics Graphics file (with path) in double quotation marks.
See also Subsection 3.3.10 "Display images".
Dimension Position and sized of main body of screen form in
pixels (distance from left, distance from top,
width, height), measured from the top left corner
of the screen. The measurements are separated
by commas.
System or System or user variable to which
user variable current cursor position is assigned.
The cursor position can be sent to the NC/PLC
via the system or user variable.
The first variable has the index 1.
The sequence matches the configuring sequence
of the variables.
Graphic position Position of graphic (distance from left, distance
from top) in pixels, measured from the top left
corner of the main body of the screen form. The
minimum clearance from the top is 18 pixels.
The data is separated by commas.
