08/2005 Starting Up HMI Embedded (IM2)
4 Functions/Parameterization
© Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl/840D/840Di/810D HMI Installation and Start-Up Guide (IAM) – 08/2005 Edition
IM2/4-69
With the arrival of the "Ping" on the PC, the IP address of the requesting NCU 7x0
is known and the "Viewer" application (mmcR.exe) with this destination IP address
can be started on a PC. This application runs as client. The machine can be
monitored and controlled via this remote PC.
The transfer of files between the remote PC and the machine is handled with local
drives (see Chapter: 3: Network operation with HMI Embedded):
4.17.1 Configure "RCS Host Embedded"
Adapting NCU 7x0 to router (VPN network)
NCU 7x0 and router are connected via an Ethernet cable.
If the NCU 7x0 is already in the network, save the current network configuration.
To adapt the network configuration of the NCU 7x0 to the configuration of the
Ethernet interface of the router, proceed as follows:
Start the machine, press the "Start-up" -> "HMI" -> "Netw. config." soft keys and
make the following entries:

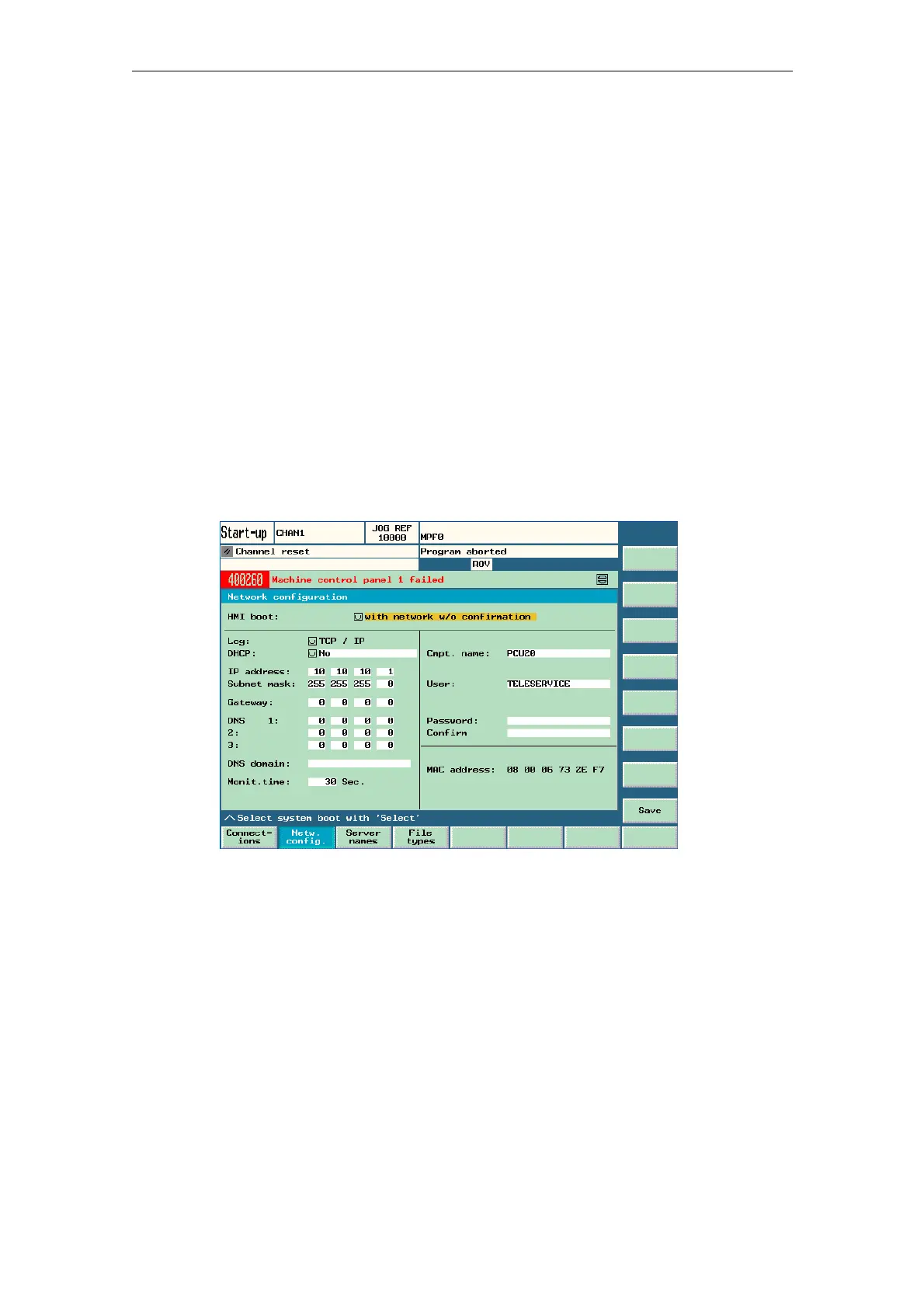

Fig. 4-7 Configuration of the Ethernet interface "Router NCU 7x0"
The entries
• IP address
• Subnet mask
• Gateway
are already specified by the router configuration and are only used as examples
here.
When you press the "Save" soft key, the NCU 7x0 is restarted.
