Starting Up HMI Embedded (IM2) 08/2005
4 Functions/Parameterization
© Siemens AG, 2005. All rights reserved
IM2/4-70 SINUMERIK 840D sl/840D/840Di/810D HMI Installation and Start-Up Guide (IAM) – 08/2005 Edition
Adapt machine to the remote PC
In the "Start-up" operating area, press the ETC key ">" and the soft key "Remote
diagnosis". The following window appears:

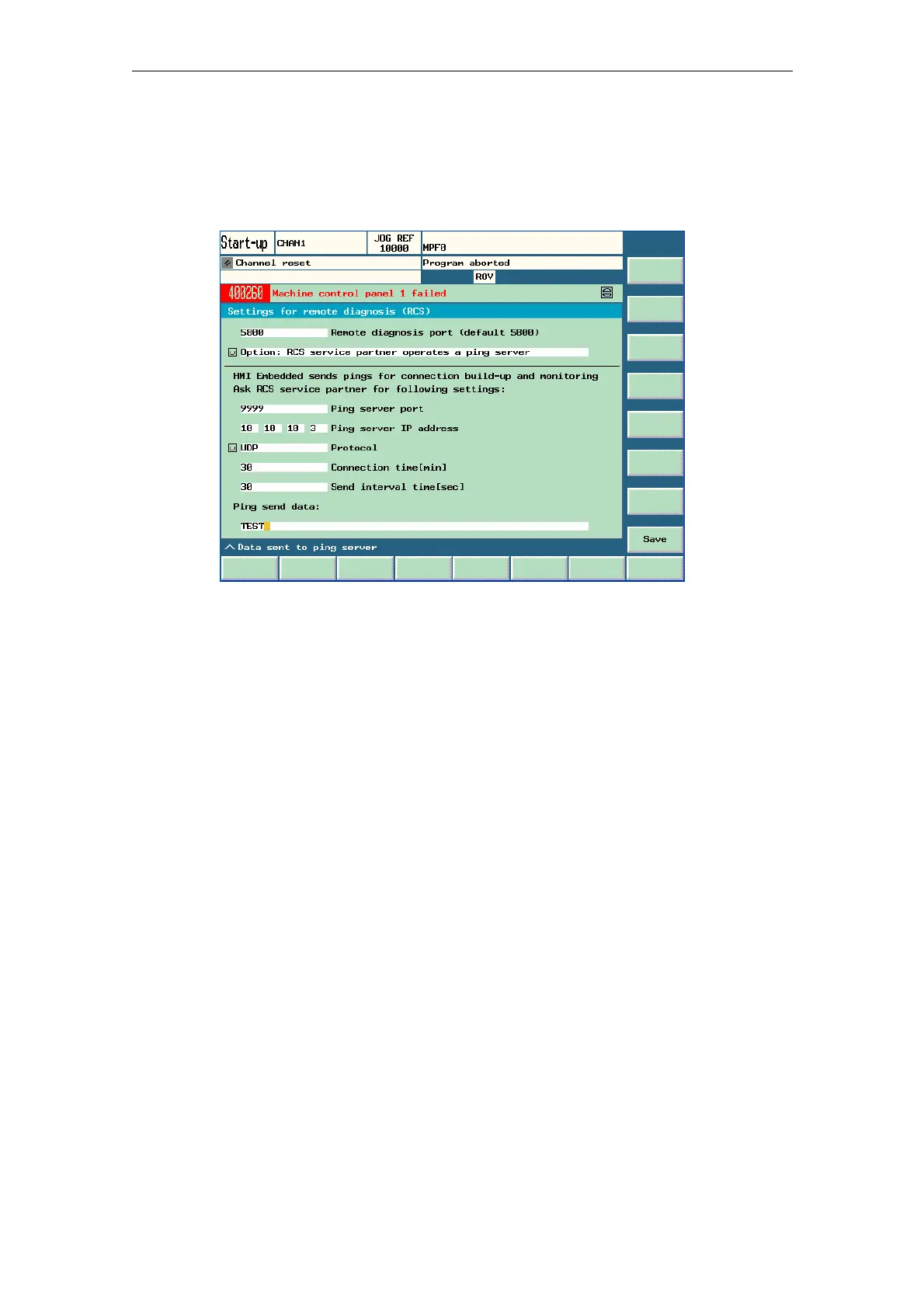

Fig. 4-8 Setting up logon server
The port number, default 5800, is entered in the "Port for remote diagnosis
(default 5800)" input field for the server process (remote diagnosis). The same port
number must be entered in the "Viewer" application on the remote PC.
Option: "RCS service partner operates a Ping server" selected
By selecting the option "RCS service partner operates a Ping server", the remote
PC is triggered to operate a Ping server. The subsequent settings must be
obtained from the service partner operating a Ping server:
• Ping server port
• IP address on which the "Ping" server runs
• Protocol selection, UDP or TCP/IP
• Connection duration (min): Entry for the maximum time for the duration of the
remote diagnosis. After this time expires, the connection is interrupted.
• Transmission interval (sec): The Ping data is transmitted cyclically in this
interval from the NCU 7x0 to the remote PC. This is used for the monitoring of
the connection.
• Ping transmission data: Entry of an agreed user data string
