4 Functions/Parameterization
© Siemens AG, 2005. All rights reserved
IM2/4-74 SINUMERIK 840D sl/840D/840Di/810D HMI Installation and Start-Up Guide (IAM) – 08/2005 Edition
Press the "Configuration" button to display the "RCS-Configuration" window. See
fig.: 4-10: Port setting
File transfer
The file transfer is performed in the "Program" operating area. When you press the
soft key defined via "logic drives", the contents of the selected folder are displayed.
The transfer can be performed using the vertical soft keys.

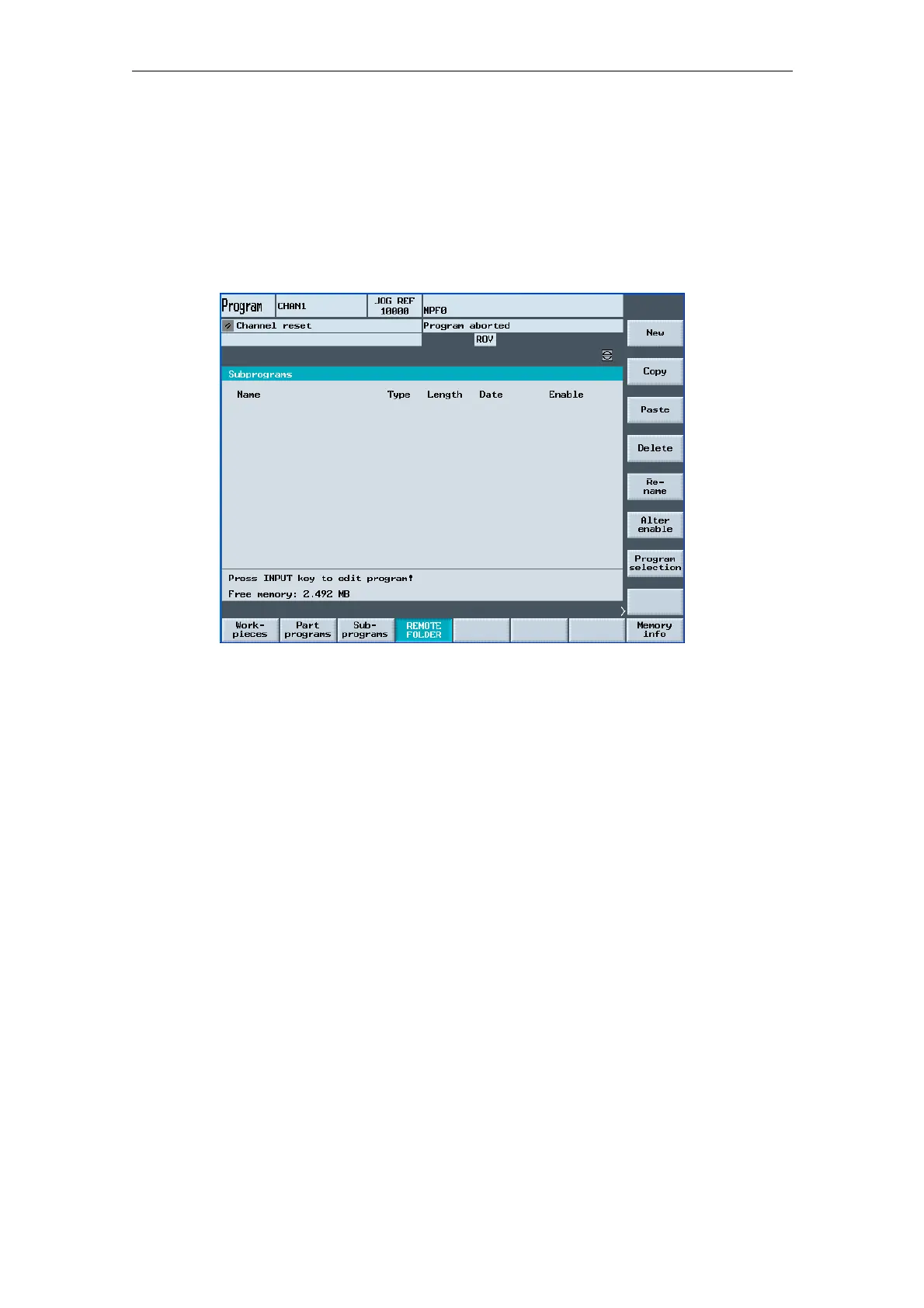

Fig. 4-12 Share folder for file transfer
