08/2005 Commissioning HMI Advanced (IM4)
5 HMI software on PC
© Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl/840D/840Di/810D Installation and Start-Up HMI (IAM) - 08/2005 Edition
IM4/5-169

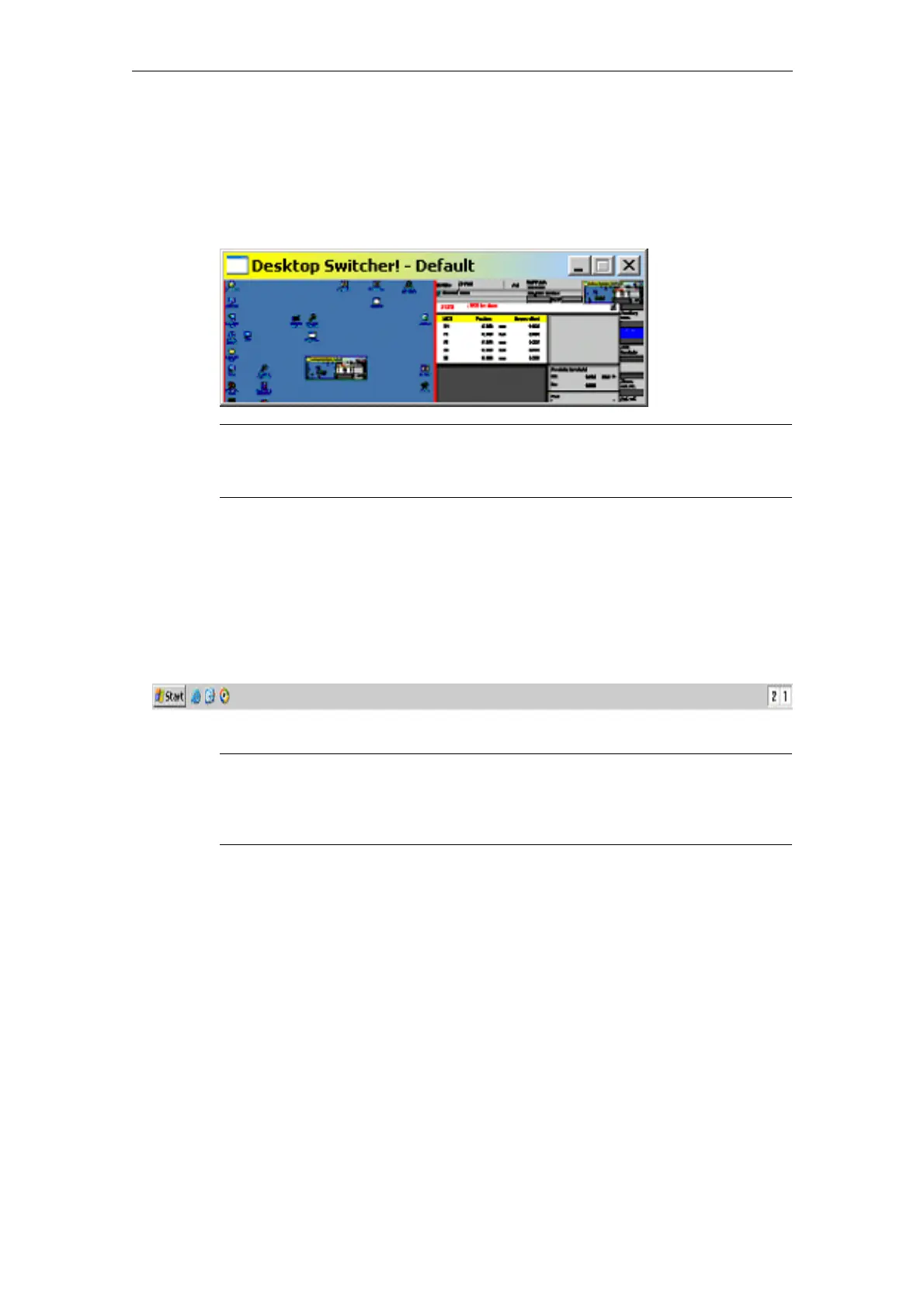

Desktop switch dialog
When configured accordingly, this dialog box is displayed on the screen in the
current desktop. Click the left-hand side to activate the standard desktop (1), click
the right-hand side to activate the HMI desktop.
Note
If WindowOnTop = FALSE is configured (see below), the window must first be
brought to the front by pressing Alt-Tab, if it is covered by the application.
Icons in the taskbar
The configured desktops are displayed on the right of the taskbar. The active
desktop is highlighted. To switch desktops, click the desktop number you require.
1 Standard desktop
2 HMI desktop
(3, 4) Other optional desktops
Note
Since the taskbar is covered up in the HMI desktop, the user must first make it
visible by pressing the left or right Window key in order to be able to actuate the
corresponding desktop icons.
