Section 04 TRANSMISSION
Sub-Section 05 (PULLEY DISTANCE AND ALIGNMENT)
04-05-3
Tundra II LT
1. Driven pulley movement
2. Engine movement
CAUTION : The rear suspension must be
mounted on the vehicle and track tension
and alignment must be done to provide the
right frame width.

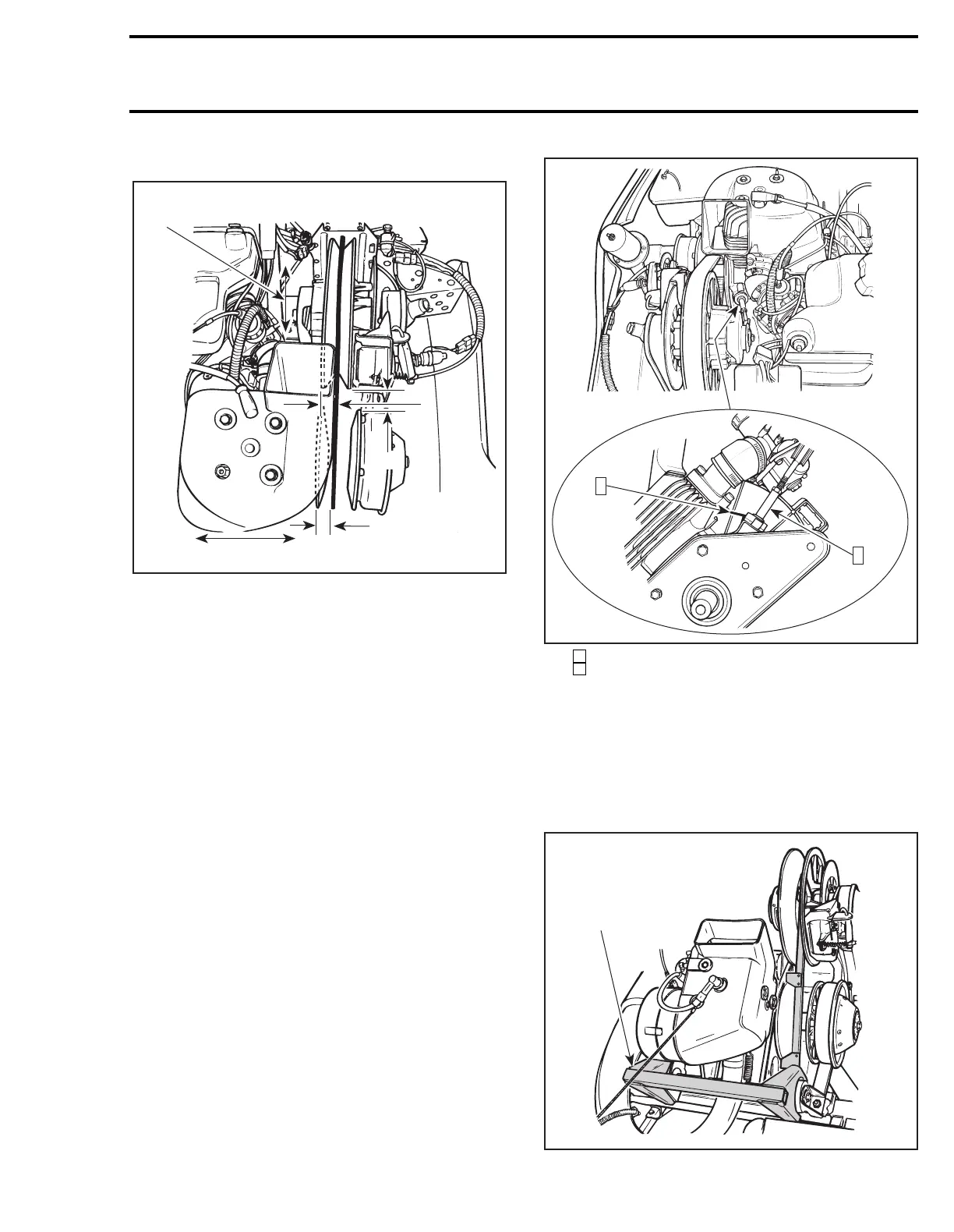

Pulley Distance Adjustment Method
Slacken the 4 chaincase retaining bolts, unlock
and raise pulley support.
Move chaincase to obtain specific adjustment and
adjust driven pulley support length accordingly
(light contact).
Step : Push and hold
Step : Raise support
Pulley Alignment Method
Engine Movement
Slacken the support retaining bolts and install en-
gine support positioner (P / N 529 0245 00) to
keep from altering distance between both sup-
ports.
TYPICAL
Y
X
A05D0CA
1
2
Z
A05D0PA
2
1
1
2
A03B02A
529 0245 00
