PDW-700/V1 (E)

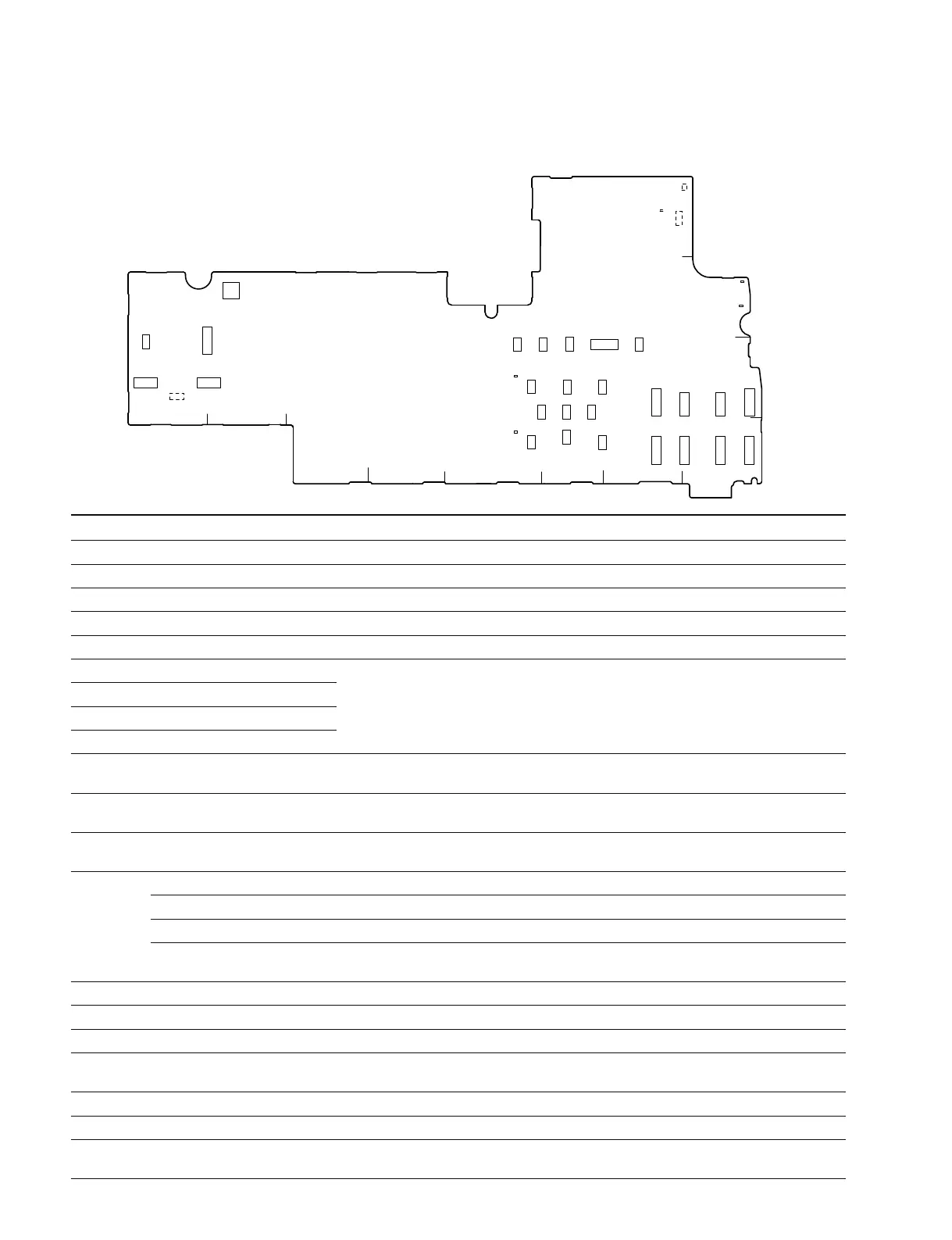

FP-157 board
Ref.No. Bit Name Function Factory setting
D842 _ WARNING Warning light. Lights when FP-CPU is abnormal
*
_
D843 _ THUMBNAIL Displays thumbnails
*
_
D844 _ SUB CLIP Lights during the clip playback
*
_
D845 _ TEST Lights during the FP-CPU initialization
*
_
D846 _ ACCESS Lights when the disc drive is being accessed
*
_
S1 _ CH1 FRONT/REAR/WRR FRONT
S2 _ CH2
S3 _ CH3
S4 _ CH4
S10 _ AUTO1 (ON:H/OFF:L) Selects the adjustment method of the audio level for audio _
channel 1
*
S20 _ AUTO2 (ON:H/OFF:L) Selects the adjustment method of the audio level for audio _
channel 2
*
S460 _ MONITOR Audio monitor select switch
*
_
(CH1/2, CH3/4)
S501 1 NC _ OFF
2NC _ OFF
3NC _ OFF
4 _ Turns on when 5P XLR of the AUDIO output of OFF
the AXM-38 board is changed to 3P
*
S700 _ ASSIGN2 Turns ON/OFF the assigned function
*
OFF
S701 _ CCC_SW Changes the color temperature
*
_
S702 _ ASSIGN1 Allocates the switch functions
*
OFF
S703 _ MONITOR Audio monitor select switch
*
_
(CH-L/MIX/CH-R)
S830 _ CPU_RESET Resets the CPU _
S831 _ BRIGHT* Brightness adjustment
*
_
S832 _ THUMBNAIL/ Thumbnail
*
_
ESSENCE MARK
S700
S460
S702
S703
S701
S840
S834
S835
S831
D842
S841
S832
D843
D844
S842
S833
S845
S844
S843
S846
D846
S836
S837
S838
S839
S1
S2
S4
S3
S20
S10
S911
S830
D845
S501
AB
CD
EF
G
H
4
3
2
1
