1-32
PDW-700/V1 (E)

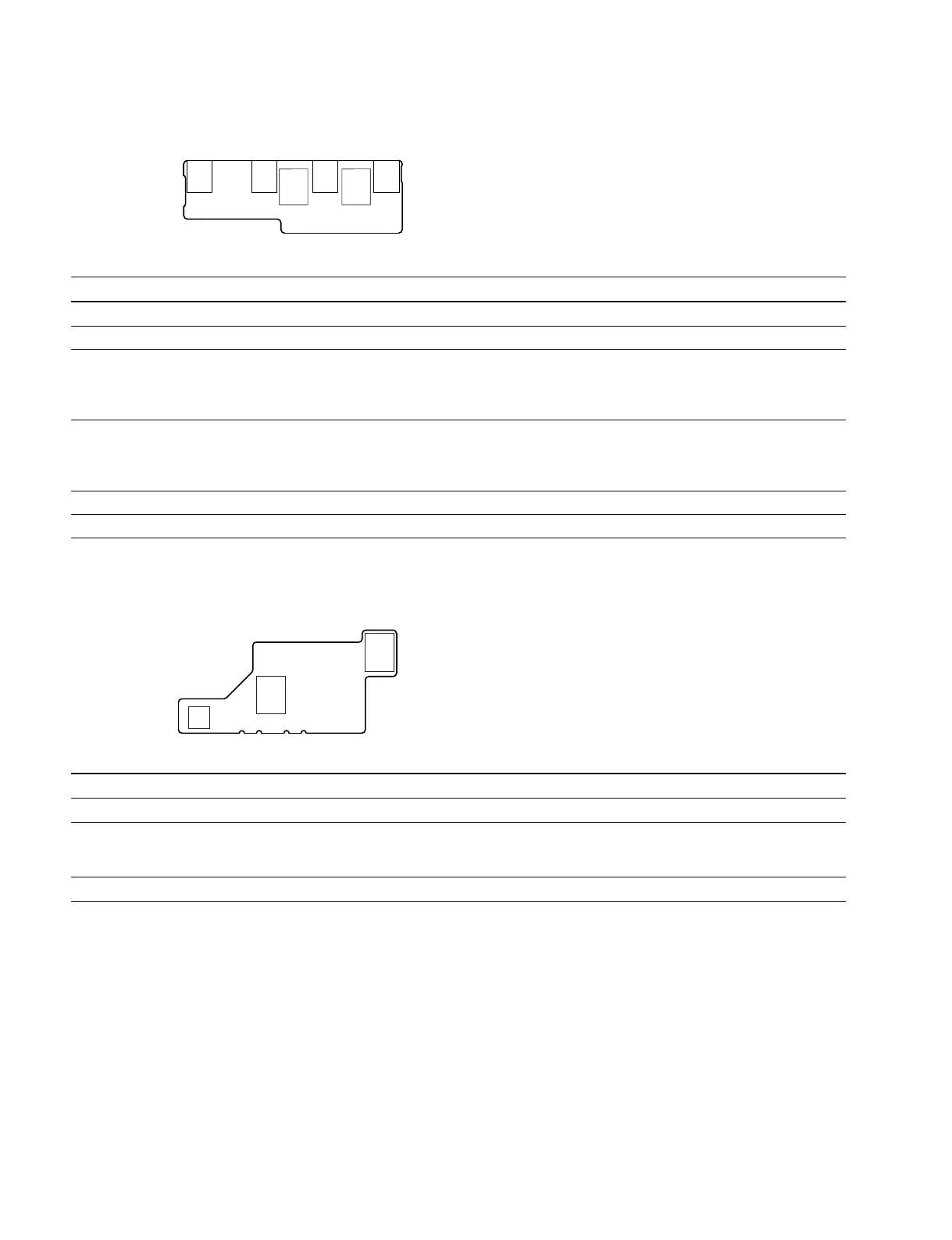

SW-1391 board
Ref.No. Name Function Factory setting
S1 VDR (SAVE/STBY) Switches the VDR operation state (SAVE/STBY)
*
SAVE
S2 GAIN (L/M/H) Switches gain (L/M/H)
*
L=0 dB, M=6 dB, H=12 dB
S3 WHITE BAL Switches the white balance memory PRST=3200K
(B-A-PRESET/ATW) PRST : Adjusts the color temperature to the preset value
A/B : Calls the saved white balance value
ATW : Switches the ATW operations
S4 OUTPUT Switches the output signal
*
_
(DCC : ON_OFF/BARS_CAM) Turns on/off the dynamic contrast control
*
BARS : Outputs the color bar signal
*
CAM : Turns on/off the DCC function
*
S5 MENU (ON/OFF) Turns on/off the MENU switch
*
OFF
S6 MENU (ON/OFF) Turns on/off the MENU switch
*
OFF
* : Refer to the “Operation Manual”.
SW-1425 board
Ref.No. Name Function Factory setting
S1 REC START The button used to start/stop recording
*
_
S2 AUTO_W/B_BAL The switch used to automatically adjust white _
balance/black balance.
Turns on/off the electronic shutter
*
S3 SHUTTER Turns on/off the electronic shutter
*
_
* : Refer to the “Operation Manual”.
S1
S2S4S3
S5S6
S2
S1
S3
