1-31
PDW-700/V1 (E)

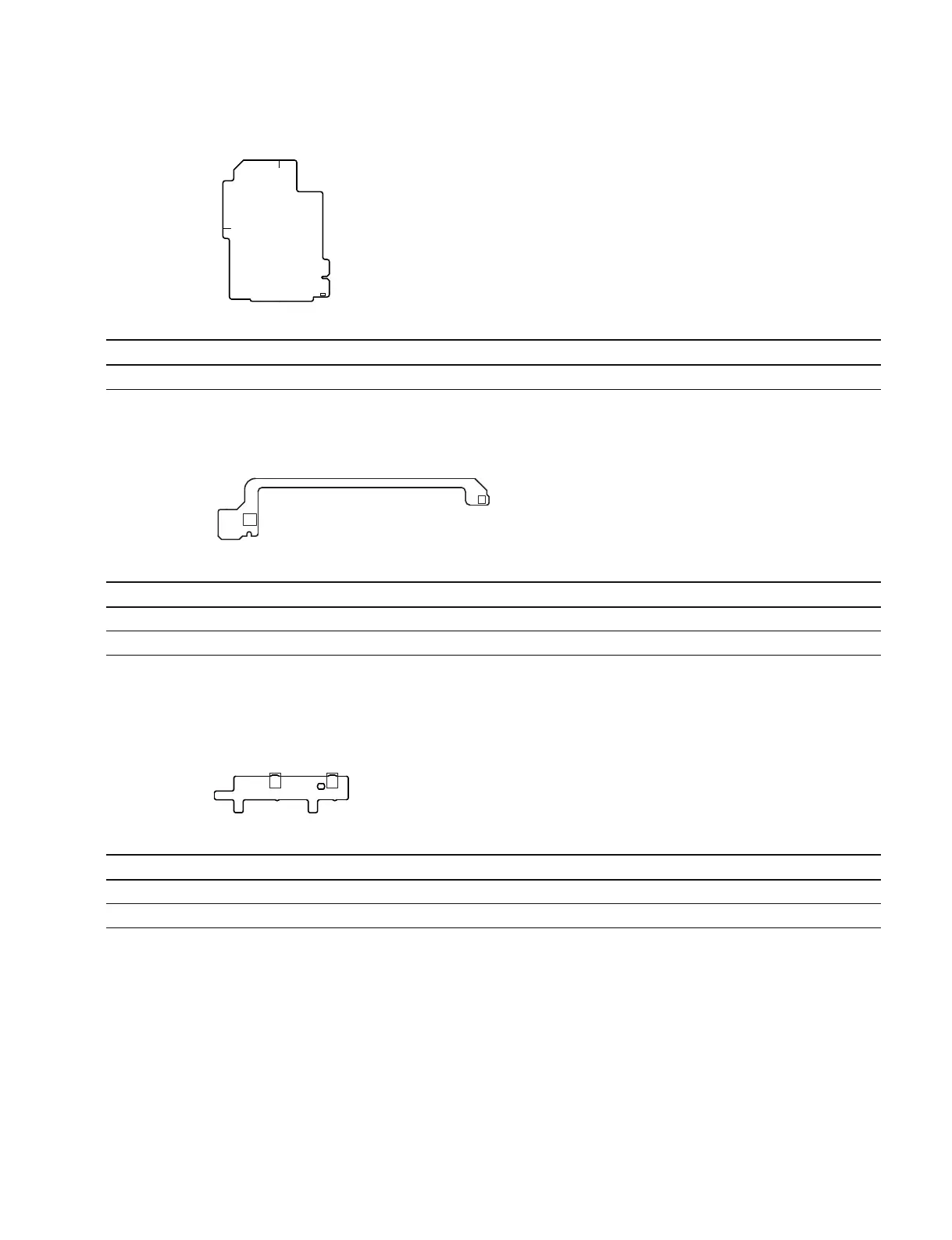

MS-86 board
Ref.No. Name Function Factory setting
D1 MEMORY STICK Lights when being accessed
*
_
* : Refer to the “Operation Manual”.
SW-1125G board
Ref.No. Name Function Factory setting
S1 IN SENSE Cartridge presence OFF
S2 STBY OFF Cartridge chucking state OFF
SW-1352 board
Ref.No. Name Function Factory setting
S1 CH1 (ON/OFF) Turns ON/OFF the +48 V
*
OFF
S2 CH2 (ON/OFF) Turns ON/OFF the +48 V
*
OFF
* : Refer to the “Operation Manual”.
D1
1
2
A
B
S1
S2
S2
S1
