1-30
PDW-700/V1 (E)

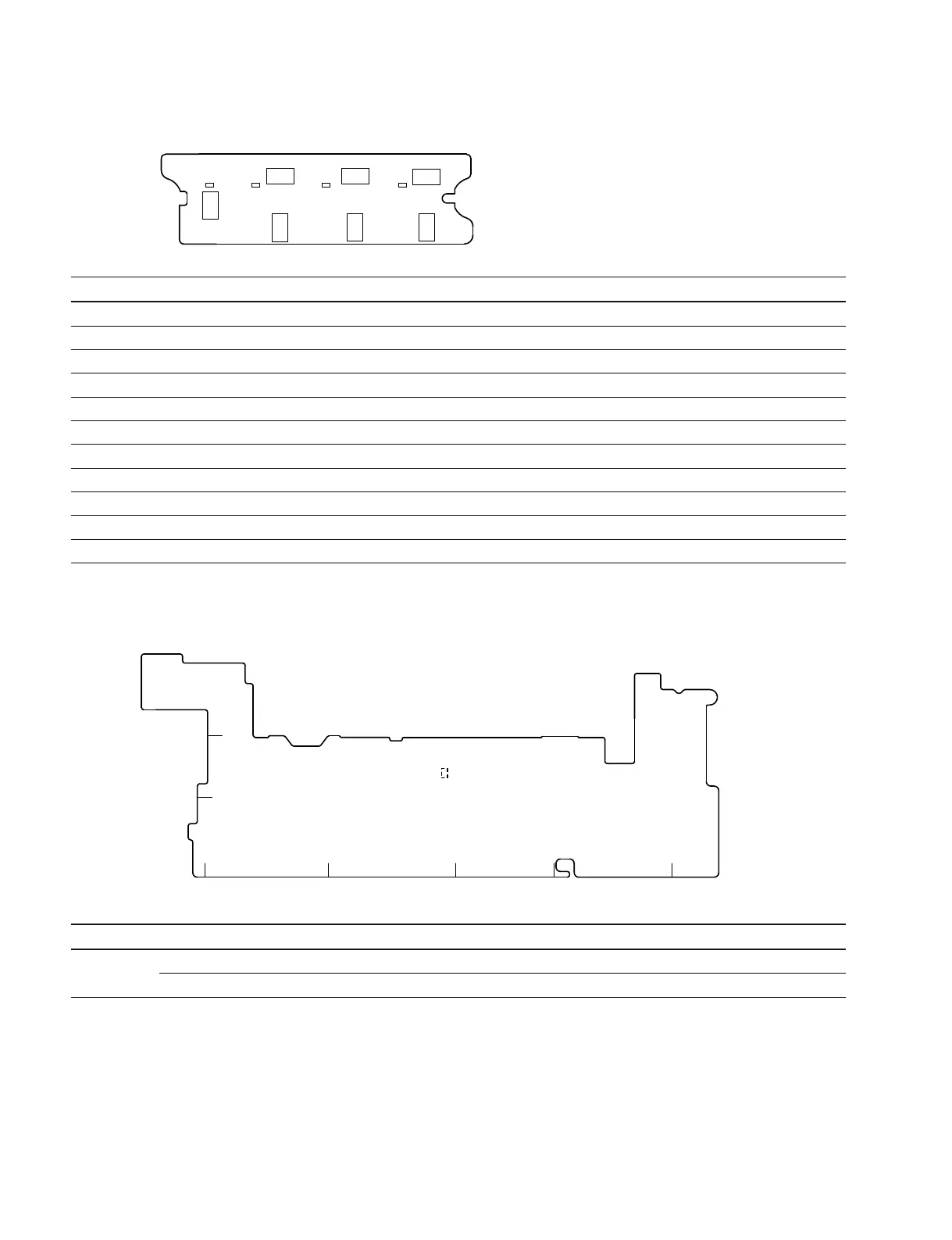

KY-623 board
Ref.No. Name Function Factory setting
D1 FF Lights during fast-forward playback
*
_
D2 PLAY Lights during playback of the disc
*
_
D3 REW Lights during fast-rewind playback
*
_
D4 EJECT Blinks during disc ejection
*
_
S1 STOP Stops playback
*
_
S2 FF Fast forward
*
_
S3 PLAY Disc playback
*
_
S4 REW Fast rewind
*
_
S5 NEXT Moves to the next clip
*
_
S6 PREV Moves to the previous clip
*
_
S7 EJECT Ejects the disc
*
_
* : Refer to the “Operation Manual”.
MB-1111 board
Ref.No. Bit Name Function Factory setting
S1 0 Normal boot Starts iTRON-CPU mandatorily in normal mode OFF
1 Recovery boot Starts iTRON-CPU mandatorily in recovery mode OFF
S6
S1
S5
S7
D4
D3
D2
D1
S4
S3
S2
S1
C
B
A
1
23456
