ST STM32WL55JC User Manual

RM0453 Rev 2 393/1454
RM0453 General-purpose I/Os (GPIO)
426
GPIOx_BSRR and GPIOx_BRR registers allow atomic read/modify accesses to any of the
GPIOx_ODR registers. In this way, there is no risk of an IRQ occurring between the read
and the modify access.
Figure 43 and Figure 44 show the basic structure of a standard and a 5V-tolerant I/O port
bit.
Table 70 gives the possible port bit configurations.

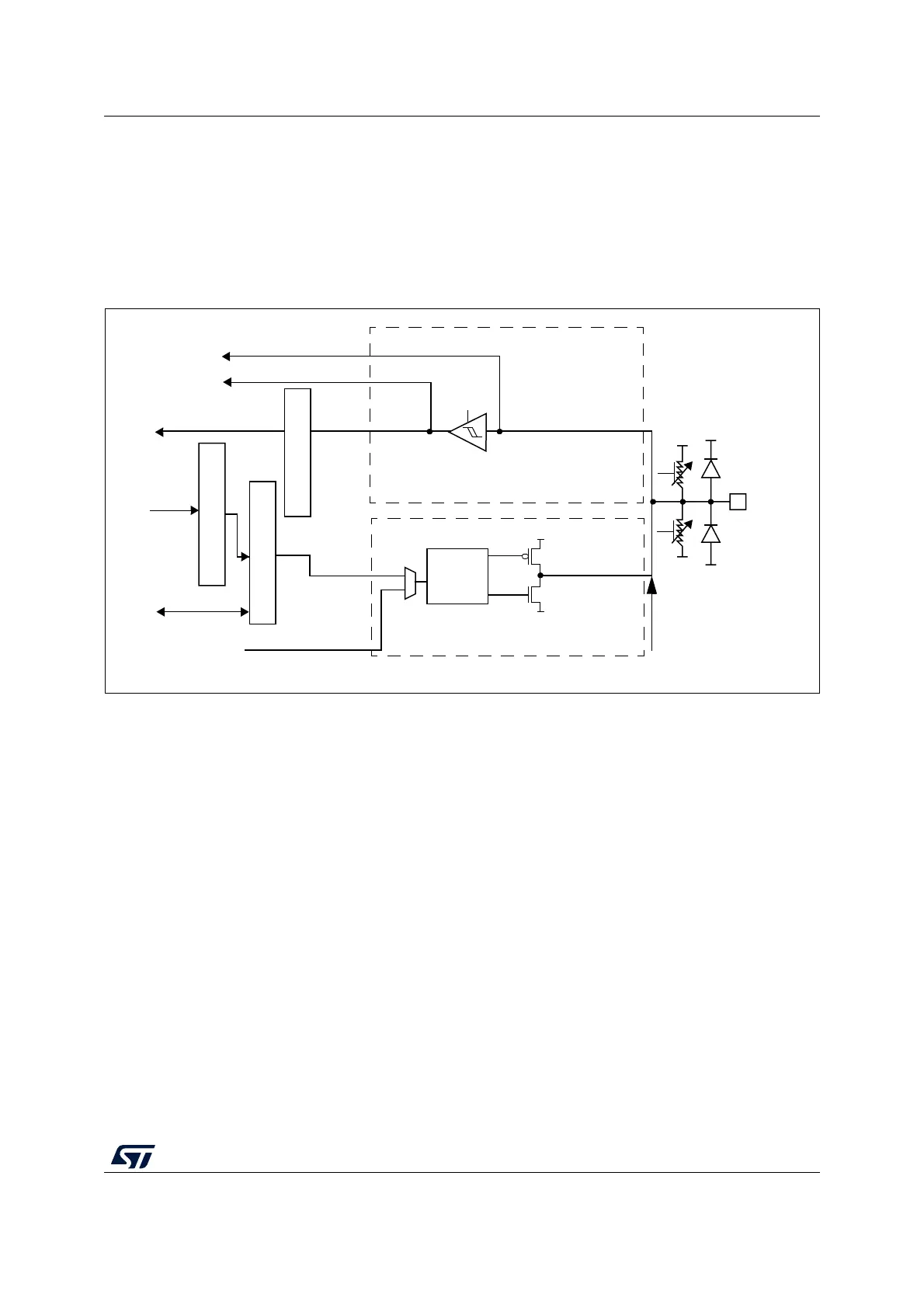

Figure 43. Basic structure of a standard I/O port bit
Alternate function output
Alternate function input
Push-pull,
open-drain or
disabled
Input data register
Output data register
Read/write
From on-chip
peripheral
To on-chip
peripheral
Output
control
Analog
on/off
Pull
Pull
down
on/off
I/O pin
V
DDIOx
V
DDIOx
V
SS
V
SS
trigger
V
SS
V
DDIOx
Protection
diode
Protection
diode
on/off
Input driver
Output driver
up
P-MOS
N-MOS
Read
Bit set/reset registers
Write
Analog
MS31476V1
