RM0453 AES hardware accelerator (AES)
695
23.4.16 AES DMA interface
The AES peripheral provides an interface to connect to the DMA (direct memory access)
controller. The DMA operation is controlled through the AES_CR register.
Data input using DMA
Setting the DMAINEN bit of the AES_CR register enables DMA writing into AES. The AES
peripheral then initiates a DMA request during the input phase each time it requires to write
a 128-bit block (quadruple word) to the AES_DINR register, as shown in Figure 125.
Note: According to the algorithm and the mode selected, special padding / ciphertext stealing
might be required. For example, in case of AES GCM encryption or AES CCM decryption, a
DMA transfer must not include the last block. For details, refer to
Section 23.4.4: AES
procedure to perform a cipher operation.

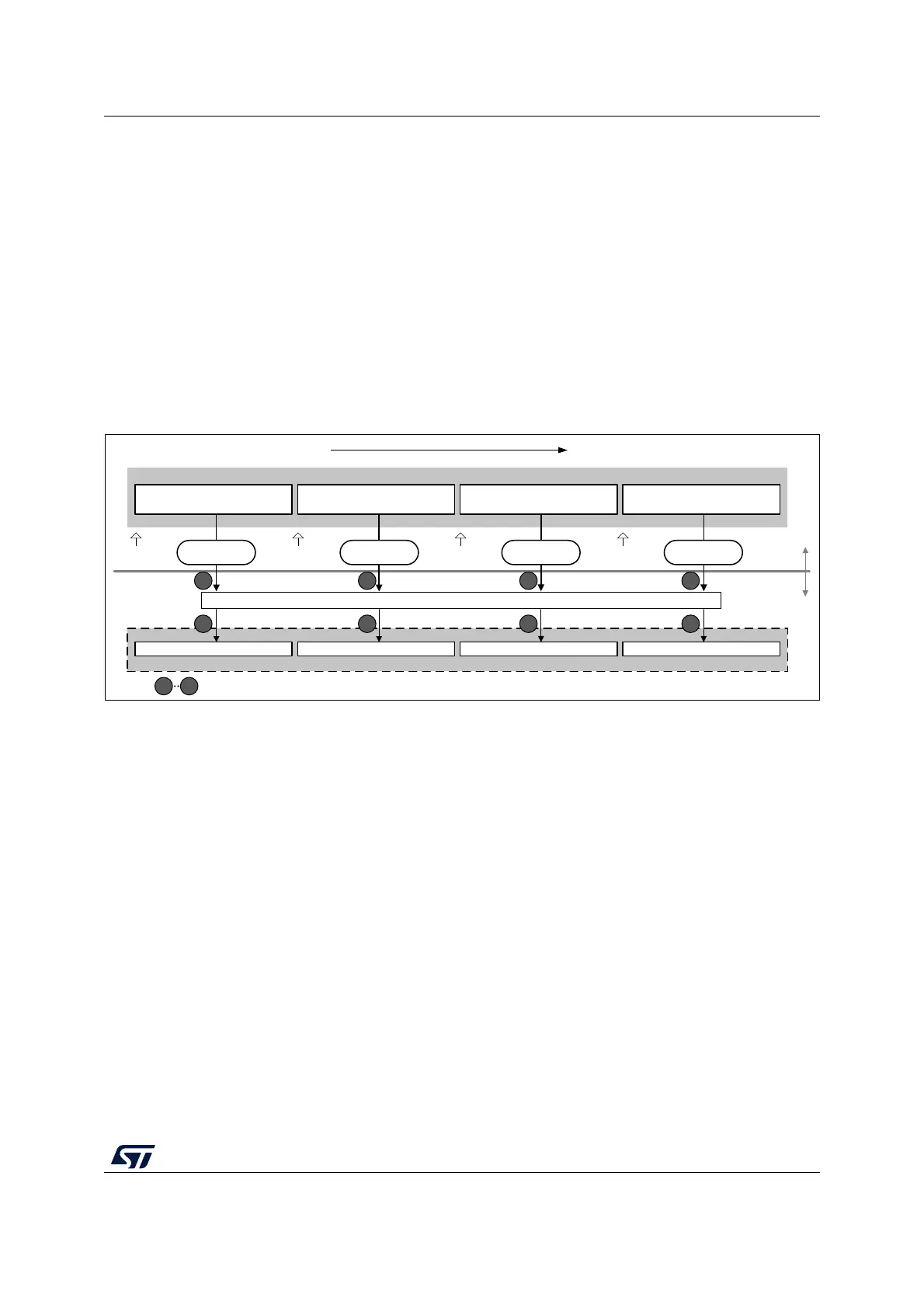

Figure 125. DMA transfer of a 128-bit data block during input phase
Data output using DMA
Setting the DMAOUTEN bit of the AES_CR register enables DMA reading from AES. The
AES peripheral then initiates a DMA request during the Output phase each time it requires
to read a 128-bit block (quadruple word) to the AES_DINR register, as shown in Figure 126.
Note: According to the message size, extra bytes might need to be discarded by application in the
last block.
MSv42160V1
AES core input buffer
AES_DINR
LSB
MSB
(No swapping)
Memory accessed through DMA
Word2Word3 Word0Word1
DMA
single write
DMA req N DMA req N+1 DMA req N+2 DMA req N+3
I127 I96
I63 I32
I31 I0
I64I95
D127 D96
D63 D32
D31 D0
D64D95
DIN[127:96] DIN[95:64] DIN[63:32] DIN[31:0]
DMA
single write
DMA
single write
DMA
single write
Chronological order
Increasing address
LSBMSB
AES
peripheral
System
1 2 3 4
1
Order of write to AES_DINR
1 2 3 4
4
