DMA request is sent). This is to avoid generating both update and capture interrupt when
clearing the counter on the capture event.
When an update event occurs, all the registers are updated and the update flag (UIF bit in
TIMx_SR register) is set (depending on the URS bit):
• The buffer of the prescaler is reloaded with the preload value (content of the TIMx_PSC
register).
• The auto-reload active register is updated with the preload value (content of the
TIMx_ARR register). Note that if the update source is a counter overflow, the auto-
reload is updated before the counter is reloaded, so that the next period is the expected
one (the counter is loaded with the new value).
The following figures show some examples of the counter behavior for different clock
frequencies.

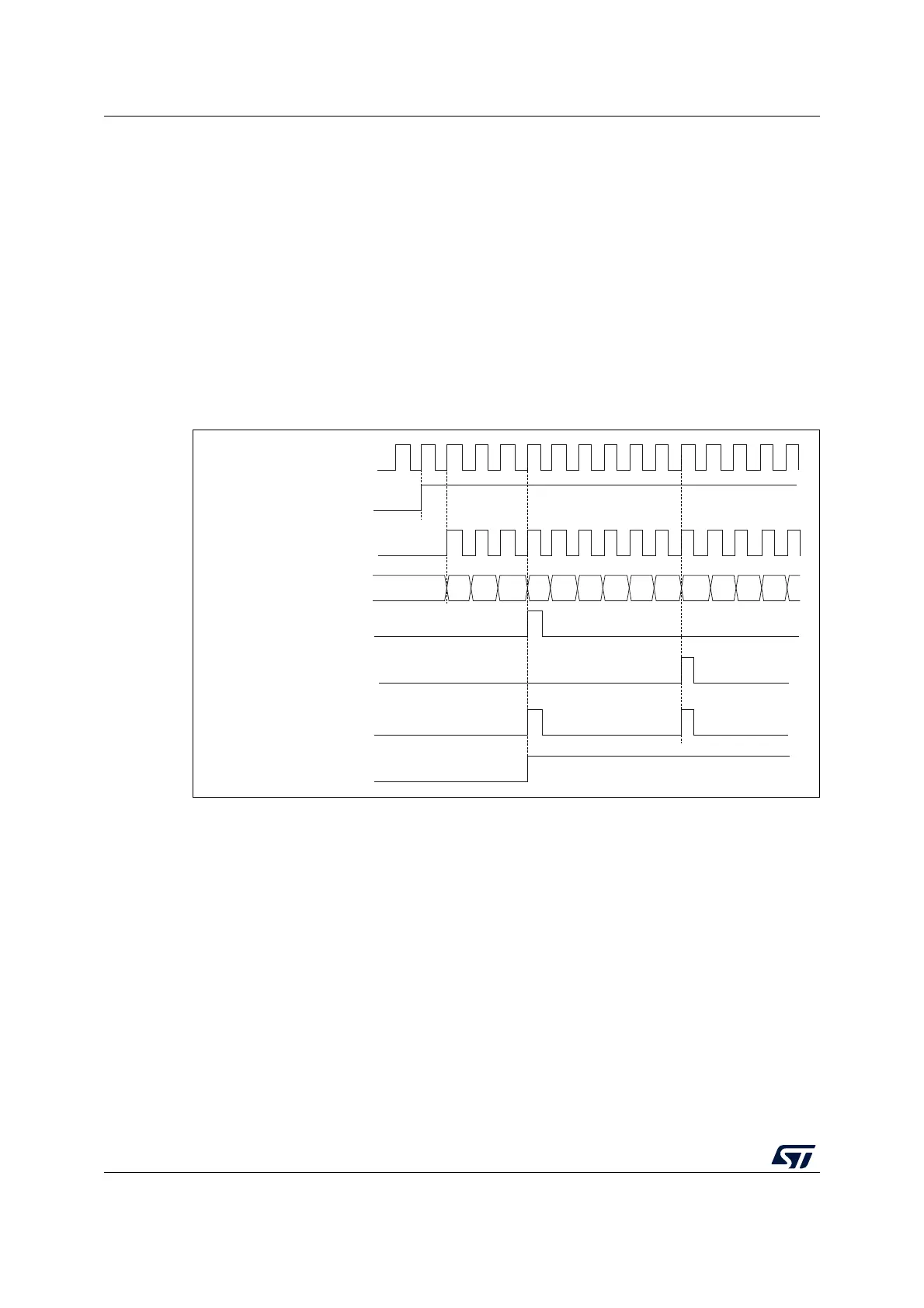

Figure 202. Counter timing diagram, internal clock divided by 1, TIMx_ARR=0x6
1. Here, center-aligned mode 1 is used (for more details refer to Section 26.4.1: TIM2 control register 1
(TIM2_CR1) on page 867).
MS31189V3
CK_PSC
Timerclock = CK_CNT
Counter register
Update event (UEV)
Counter overflow
Update interrupt flag (UIF)
CEN
Counter underflow
00020304 05 0601 02 03 0401 05 0304
