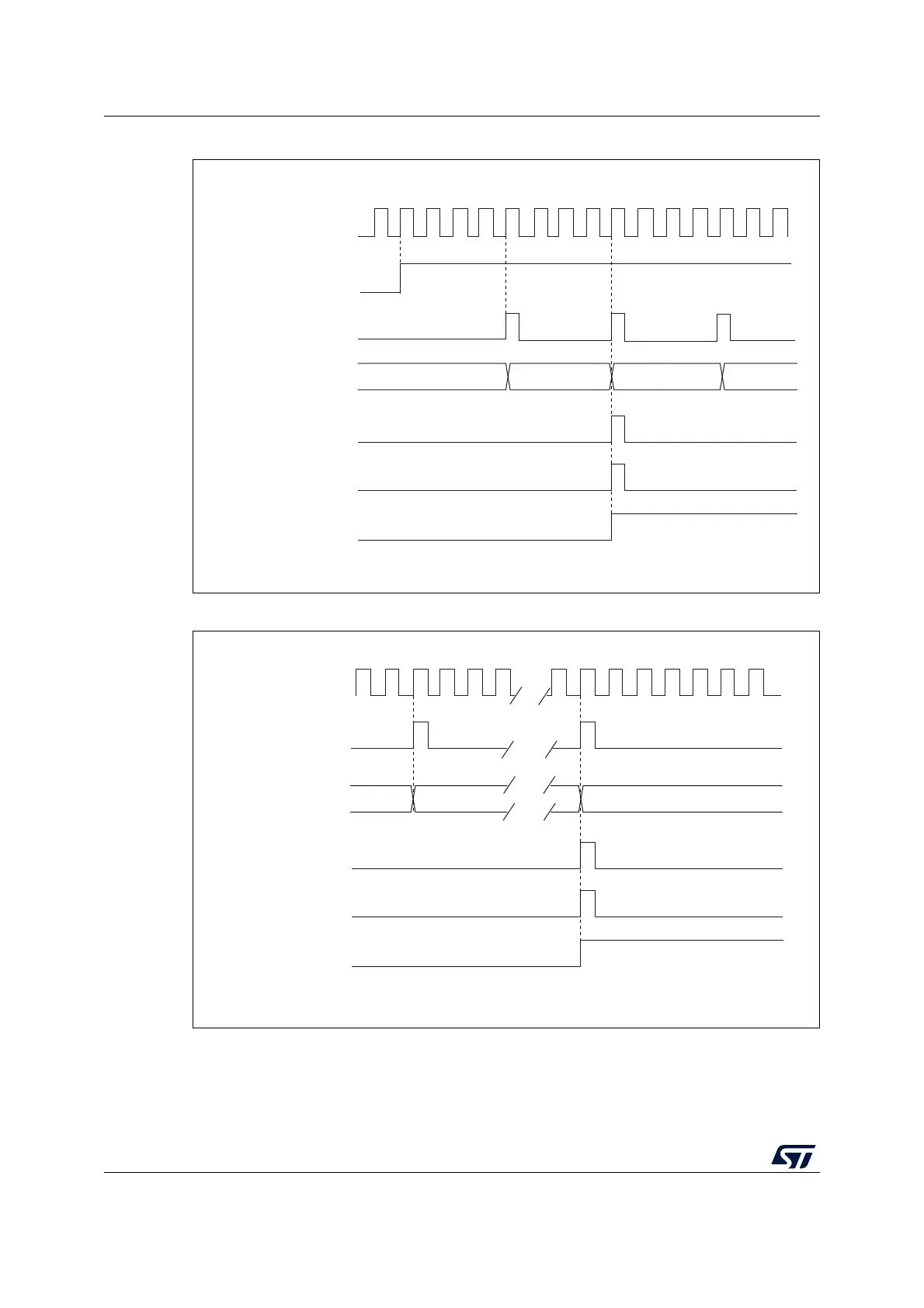

Figure 242. Counter timing diagram, internal clock divided by 4
Figure 243. Counter timing diagram, internal clock divided by N
0000 0001
0035
0036
MS31080V2
CK_PSC
Timerclock = CK_CNT
Counter register
Update event (UEV)
Counter overflow
Update interrupt flag
(UIF)
CNT_EN
00
1F
20
MS31081V2
CK_PSC
Timerclock = CK_CNT
Counter register
Update event (UEV)
Counter overflow
Update interrupt flag
(UIF)
