5.5.8 Position of the plug connectors/terminal box

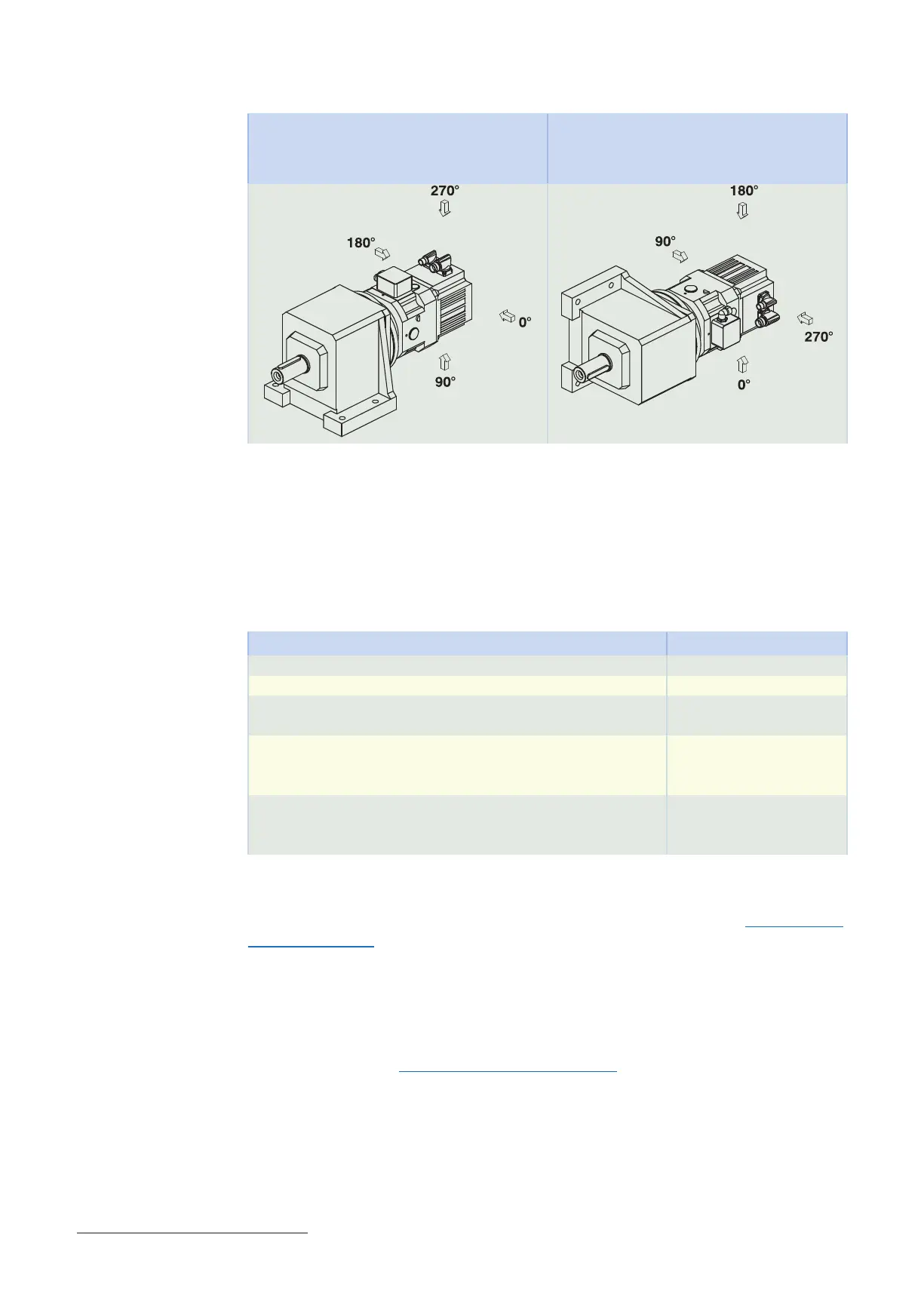

Mounting position EL1
Plug connector/terminal box in 270° position (stan-
dard)
Mounting position EL4
Plug connector/terminal box in 270° position (stan-
dard)
As standard, the plug connectors of the motor or the terminal box/plug connector of the motor adapter are
mounted in the 270° position. The position of the terminal box/plug connector of the motor adapter can be
selected separately from the position of the motor plug connectors.
Indicate variations for your geared motor in the order.
Note that the plug connector position rotates along with the geared motor if the geared motor is in another
mounting position.
5.5.9 Other product features
Feature Value
Max. permitted gear unit temperature (on the surface of the gear unit) ≤ 80°C
Paint Black RAL 9005
Explosion-proof design in accordance with (ATEX) Directive 2014/34/EU
(optional)
Not available
Efficiency:
η
get
two-stage
η
get
three-stage
97%
96%
Protection class:
1
Gear unit
Motor
IP65
IP56, optionally IP66
5.5.10 Maintenance
The instructions for maintenance can be found in the operating manual, ID 443027_en, at http://www.stoe-
ber.de/en/downloads/. Enter the ID of the documentation in the Search... field.
Ventilation
Air release valves are fitted as a standard feature and independently of installation position for gear unit
sizes C6 to C9.
For the position and dimensions of the air release valve, refer to the 3D model.
Download the 3D model at https://configurator.stoeber.de/en-US/
.
1
Observe the protection class of all the components.
