Stober PK - Nameplate; Type Designation PH9 K_ − PH10 K

8.4.2 Type designation PH9K_ − PH10K_
This chapter shows you an explanation of the type designation with the associated options.
Additional ordering information not included in the type designation can be found at the end of the chapter.
Example code
PH 9 3 1 F 0040 K513VF 0100 MB33 EZ703U
Explanation
Code Designation Design
PH Type Planetary gear unit
9 Size 9 (example)
3 Generation Generation 3
1 Stages Single-stage
F Shaft Flange shaft
0040 Transmission ratio of output
(i x 10)
i = 4 (example)
K513VF Input K5 right-angle gear unit (example)
0100 Transmission ratio of input
(i x 10)
i = 10 (example)
MB Motor adapter ServoStop motor adapter with brake
3 Size 3 (example)
3 Generation Generation 3
EZ703U Motor EZ synchronous servo motor
To complete the type designation, also specify the following in your order:
• A detailed type designation of the motor, see the chapter [}11]
• Mounting position, see the chapter [}8.5.4]
• Output gear unit side3 or 4, see the chapter [}8.5.4]
• Radial shaft seal rings at the output made of NBR or FKM (option), see the chapter [}8.6.3]
• Position of the plug connectors, see the chapter [}8.5.6]
• For reverse operation of the output shaft from ±20° to ±90° and horizontal installation, note the chap-
ter [}8.6.4]

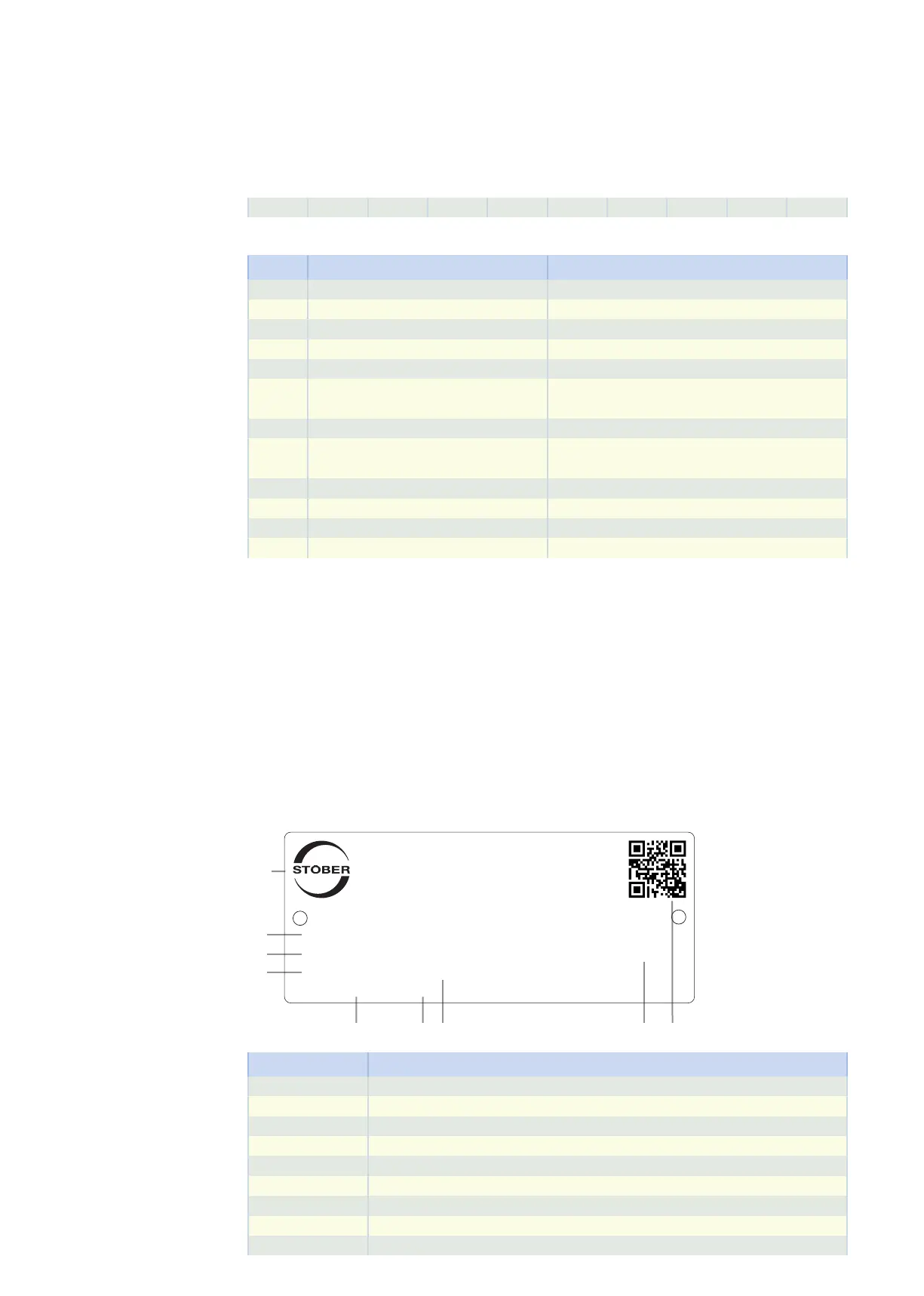

8.4.3 Nameplate
An example gear unit nameplate is explained in the figure below.
1
2
5 76
8 9
3
4
K913AF0320MB43EZ805U
i=32,12 21/34
Oil: CLP 220 Volume=21,0 l
SN: 10080005 CD: 48283012345
STÖBER Antriebstechnik GmbH + Co. KG
Kieselbronner Str. 12, 75177 Pforzheim, DE
Made in Germany
Code Designation
1 Name of manufacturer
2 Type designation
3 Gear ratio of the gear unit
4 Lubricant specification
5 Serial number of the gear unit
6 Customer-specific data
7 Lubricant fill volume
8 Date of manufacture (year/calendar week)
9 QR code (link to product information)
8 PHKright-angle planetary geared motors 8.4 Type designation
243
