8.6.4 Reverse operation
To ensure lubrication for circulating gearing parts during cyclic reverse operation from ±20°to ±90° at the
output, pay careful attention to the position of the output shaft for the horizontal mounting of the gear
unit, as shown in the diagrams below.

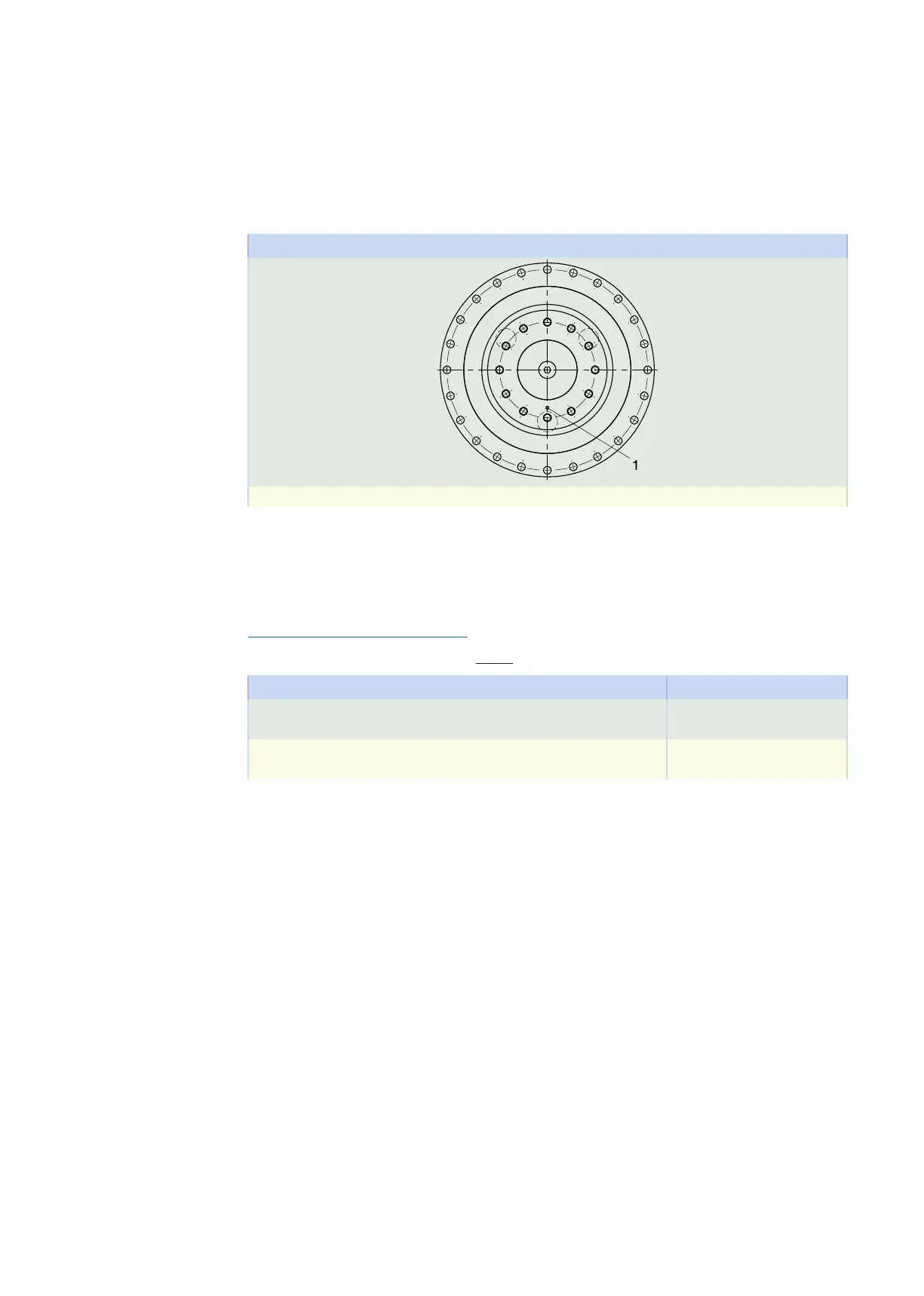

The images show the center position of reverse operation.
Cyclic reverse operation ≤±20° on request.
Size 3 − 10
1 Position of the mark: bottom
Please note that the hole pattern may be different, depending on the size of the planetary gear unit.
8.7 Additional documentation
Additional documentation related to the product can be found at
http://www.stoeber.de/en/downloads/
Enter the ID of the documentation in the Search field.
Documentation ID
Operating manual for KL/KS/PHK/PHKX/PHQK/PK/PKX right-angle servo
gear units and right-angle servo geared motors
443150_en
Operating manual for MB23/MB33/MB43/MB53 ServoStop motor
adapters with brake
443287_en
8 PHKright-angle planetary geared motors 8.7 Additional documentation
257
