Stober PK - 10.3.15 Oil Expansion Tank

10.3.15 Oil expansion tank

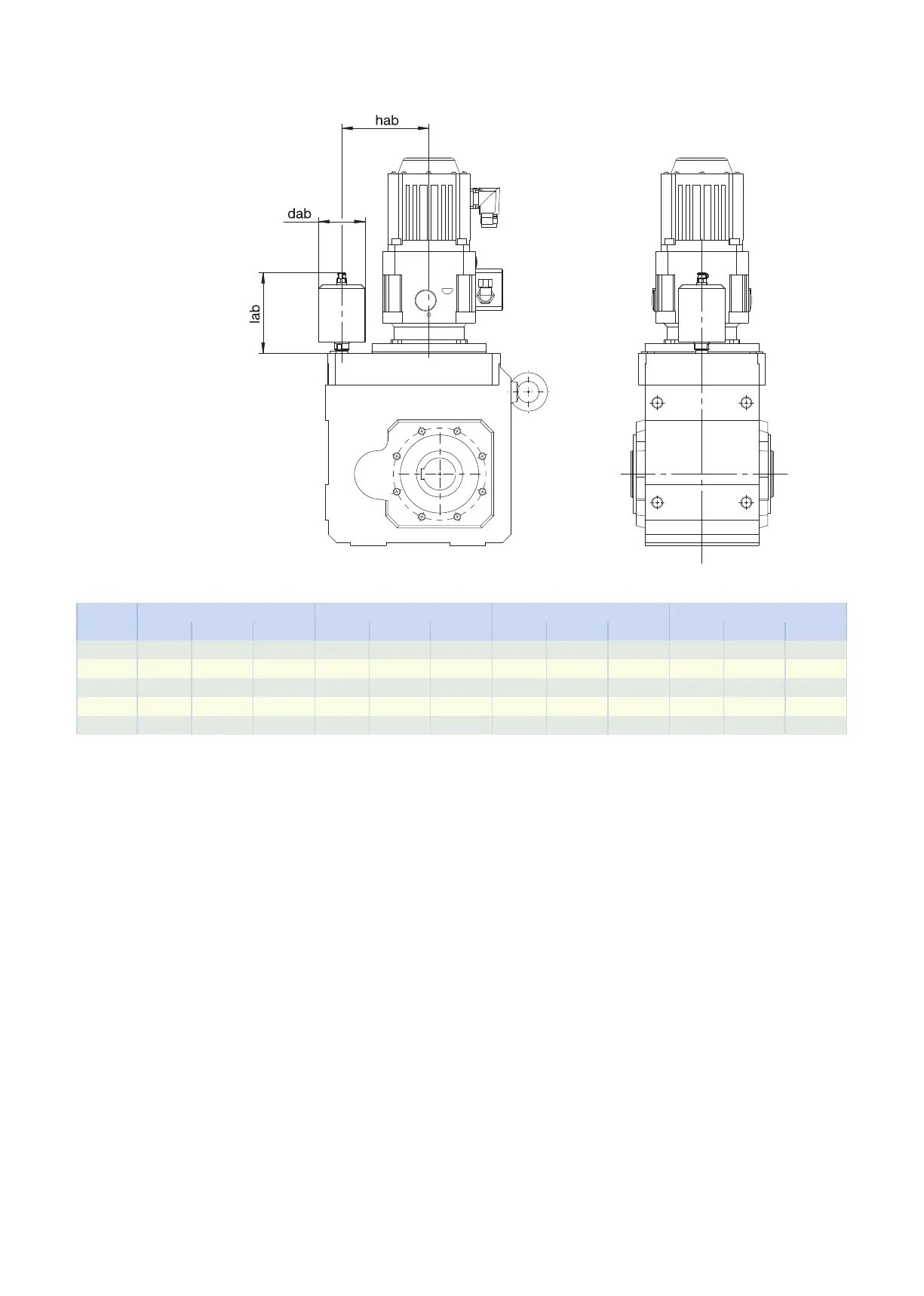

Dimensions
Type MB23_EZ4 MB23_EZ5 MB33_EZ7 MB43_EZ8
dab hab lab dab hab lab dab hab lab dab hab lab
K513 65 122.0 113.5 65 122.0 113.5 65 130.0 165.0 65 167.0 165.0
K613 65 148.5 116.5 65 148.5 116.5 65 148.5 116.5 65 198.5 165.0
K713 – – – – – – 65 170.0 114.5 65 170.0 115.5
K813 – – – – – – 73 205.0 129.5 73 205.0 129.5
K913 – – – – – – – – – 73 255.0 129.5
More information can be found in the chapter [}10.6.4]
10.3 Dimensional drawings 10 Khelical bevel geared motors
352
