13.1.2 Plug connectors
STOBER synchronous servo motors are equipped with angled, round plug connectors (INTERCONTEC brand)
for power and encoder connection in the standard version. You can find detailed technical information
about the plug connectors at http://www.intercontec.biz
.
For motors with forced ventilation, avoid collisions between the motor connection cables and the plug con-
nector of the forced ventilation unit. In the event of a collision, turn the motor plug connectors accordingly.
Details regarding the position of the plug connector for the forced ventilation unit can be found in the "Di-
mensional drawings" chapter.
The figures represent the position of the plug connectors upon delivery.

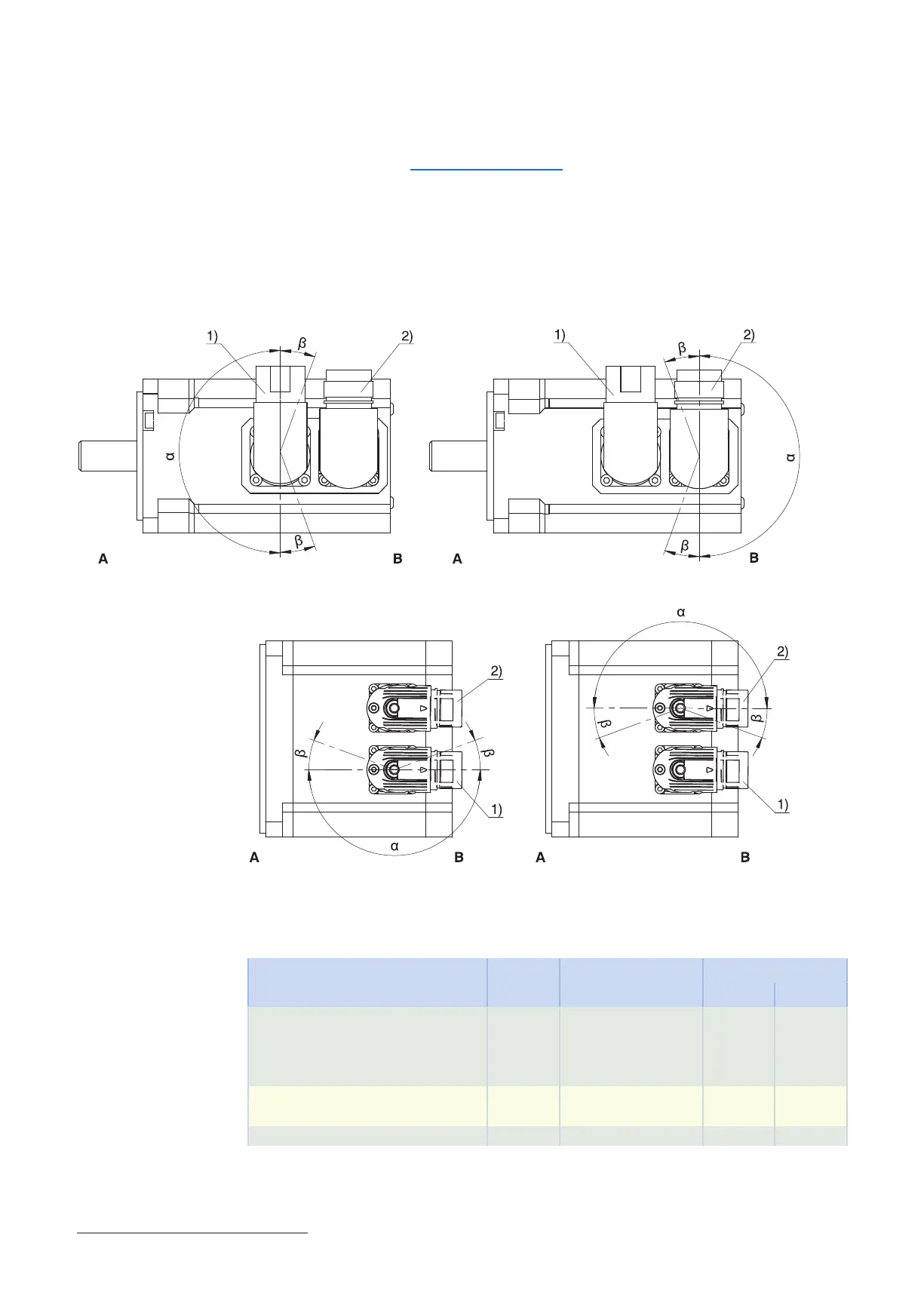

Turning ranges of plug connectors (EZ2 – EZ3 motors)
Turning ranges of plug connectors (motors EZ4 – EZ8, EZHD, EZM, EZS)
1 Power plug connector 2 Encoder plug connector
A Attachment or output side of the motor B Rear side of the motor
Power plug connector features
Motor type Size Connection Turning range
α β
EZ2 – EZ5, EZ701, EZ703
EZHD_4, EZHD_5,
EZHD_711 – EZHD_713
EZM, EZS
con.23 Quick lock 180° 20°
EZ705, EZ802, EZ803, EZ805U
EZHD_715
con.40 Quick lock 180° 20°
EZ805B con.58 Screw thread
1
0° 0°
1
Specify the alignment on sideA or B in the order.
