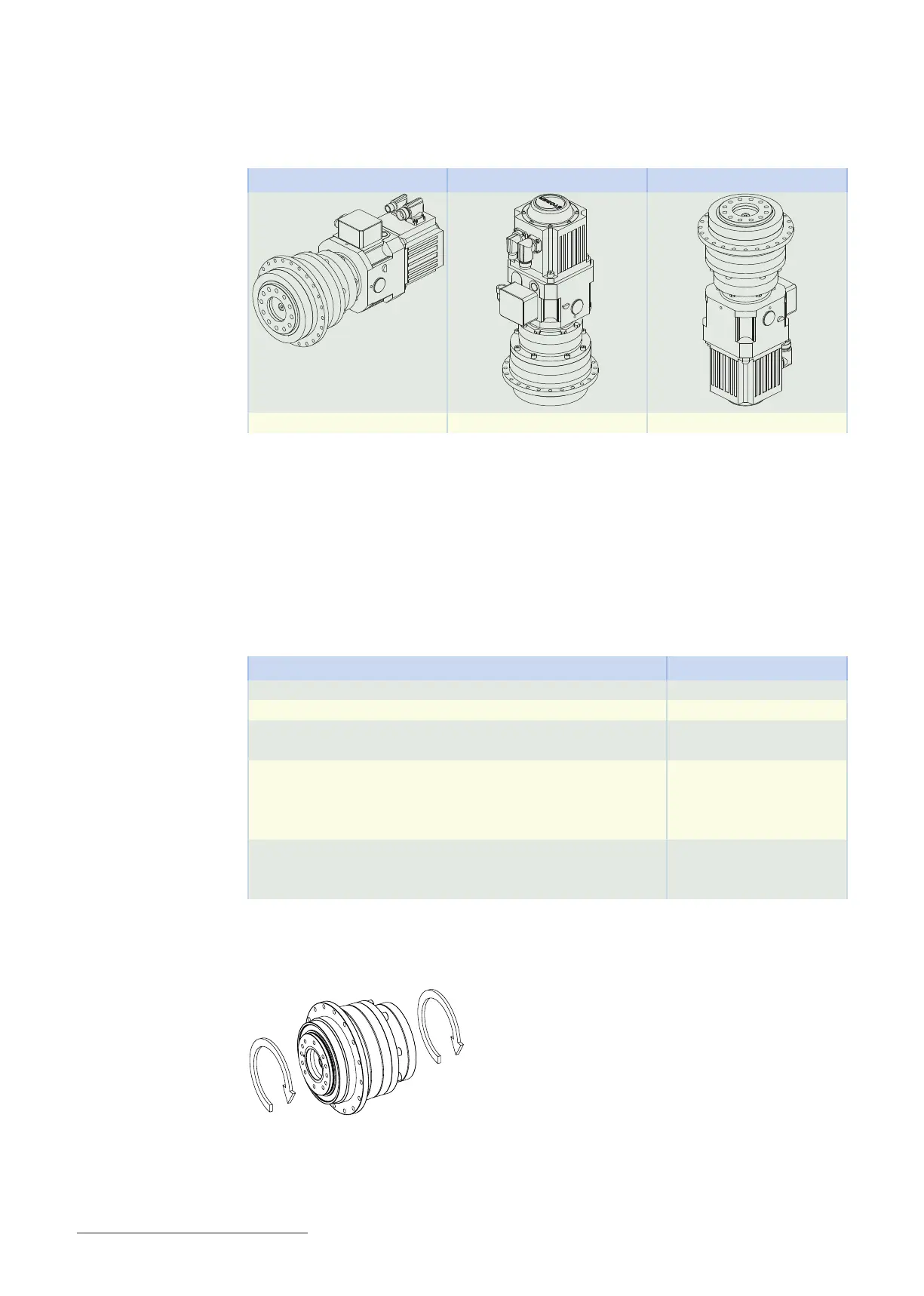

4.5.4 Mounting positions
The following table shows the standard mounting positions.
Please indicate the mounting position when ordering three-stage geared motors.
EL1 EL5 EL6
Horizontal output Vertical downward output Vertical upward output
4.5.5 Lubricants
STOBER fills the gear units with the amount and type of lubricant specified on the nameplate. The filling vol-
ume and the structure of the gear units depend on the mounting position.
Only install the gear units in the intended mounting position! Reposition the gear units only after consulting
STOBER. Otherwise, STOBER assumes no liability for the gear units.
You will receive lubricants for use in the food industry upon request.
4.5.6 Other product features
Feature Value
Max. permitted gear unit temperature (on the surface of the gear unit) ≤ 90°C
Paint Black RAL 9005
Explosion-proof design in accordance with (ATEX) Directive 2014/34/EU
(optional)
Not available
Efficiency:
η
get
single-stage
η
get
two-stage
η
get
three-stage
96%
93%
90%
Protection class:
1
Gear unit
Motor
IP65
IP56, optionally IP66
4.5.7 Direction of rotation
The input and output rotate in the same direction.
1
Observe the protection class of all the components.
4.5 Product description 4 PHQplanetary geared motors
