6.4 Type designation
This chapter shows you an explanation of the type designation with the associated options.
Additional ordering information not included in the type designation can be found at the end of the chapter.
Example code
F 6 0 2 A G 0560 MB23 EZ501U
Explanation
Code Designation Design
F Type Offset helical gear unit
6 Size 6 (example)
0 Generation Generation 0
2
3
Stages Two-stage
Three-stage
A
S
V
Shaft Hollow shaft with keyway
Hollow shaft with shrink ring
Solid shaft
G
F
Q
GN
Housing Pitch circle diameter
Round flange
Square flange
Pitch circle diameter + side fastening
0560 Transmission ratio (i x 10 rounded) i = 55.71 (example)
MB Motor adapter ServoStop motor adapter with brake
2 Size 2 (example)
3 Generation Generation 3
EZ501U Motor EZ synchronous servo motor
To complete the type designation, also specify the following in your order:
• A detailed type designation of the motor, see the chapter [}11]
• Mounting position, see the chapter [}6.5.6]
• Position of the plug connectors, see the chapter [}6.5.8]
6.4.1 Nameplate

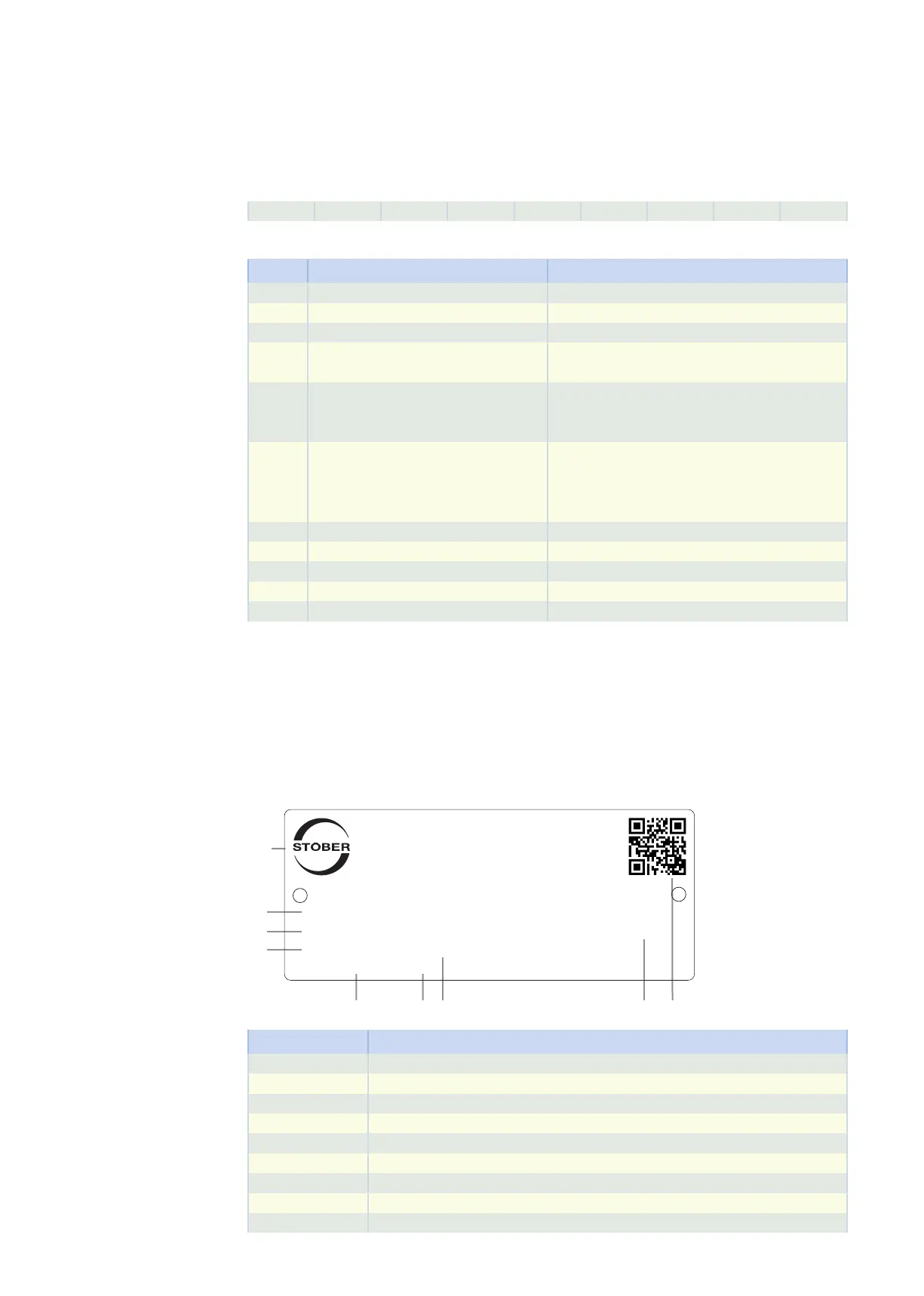

An example gear unit nameplate is explained in the figure below.
1
2
5 76
8 9
3
4
K913AF0320MB43EZ805U
i=32,12 21/34
Oil: CLP 220 Volume=21,0 l
SN: 10080005 CD: 48283012345
STÖBER Antriebstechnik GmbH + Co. KG
Kieselbronner Str. 12, 75177 Pforzheim, DE
Made in Germany
Code Designation
1 Name of manufacturer
2 Type designation
3 Gear ratio of the gear unit
4 Lubricant specification
5 Serial number of the gear unit
6 Customer-specific data
7 Lubricant fill volume
8 Date of manufacture (year/calendar week)
9 QR code (link to product information)
