Stober PK - EZ4 - EZ8 Motors with Convection Cooling

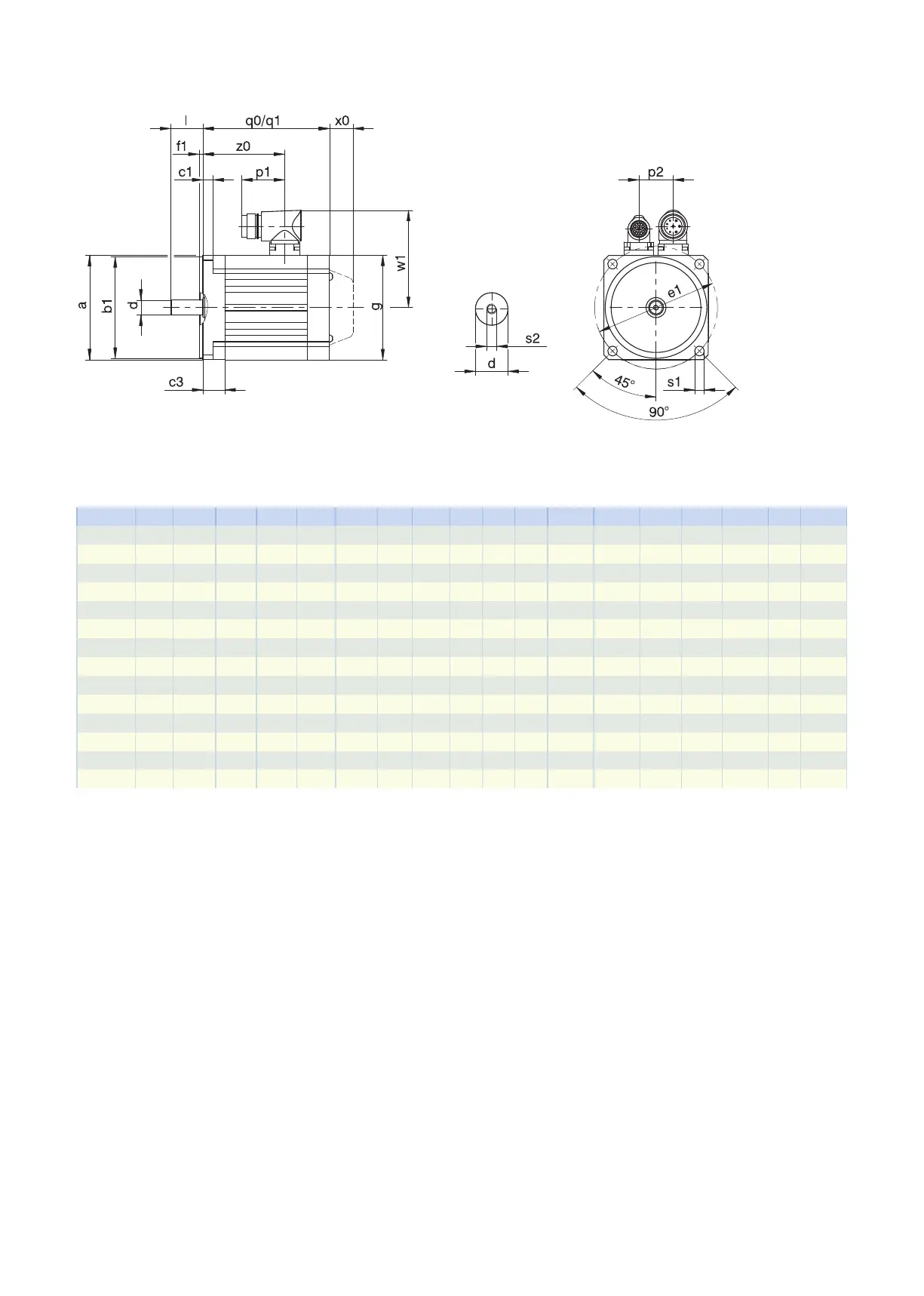

11.4.4 EZ4 – EZ8 motors with convection cooling
q0 Applies to motors without holding brake q1 Applies to motors with holding brake
x0 Applies to encoders based on an optical measuring
method
Type
☐
a
∅
b1
c1 c3
∅
d
∅
e1
f1
☐
g
l p1 p2 q0 q1
∅
s1
s2 w1 x0 z0
EZ401U 98 95
j6
9.5 20.5 14
k6
115 3.5 98 30 40 32 118.5 167.0 9 M5 91.0 22 76.5
EZ402U 98 95
j6
9.5 20.5 19
k6
115 3.5 98 40 40 32 143.5 192.0 9 M6 91.0 22 101.5
EZ404U 98 95
j6
9.5 20.5 19
k6
115 3.5 98 40 40 32 193.5 242.0 9 M6 91.0 22 151.5
EZ501U 115 110
j6
10.0 16.0 19
k6
130 3.5 115 40 40 36 109.0 163.5 9 M6 100.0 22 74.5
EZ502U 115 110
j6
10.0 16.0 19
k6
130 3.5 115 40 40 36 134.0 188.5 9 M6 100.0 22 99.5
EZ503U 115 110
j6
10.0 16.0 24
k6
130 3.5 115 50 40 36 159.0 213.5 9 M8 100.0 22 124.5
EZ505U 115 110
j6
10.0 16.0 24
k6
130 3.5 115 50 40 36 209.0 263.5 9 M8 100.0 22 174.5
EZ701U 145 130
j6
10.0 19.0 24
k6
165 3.5 145 50 40 42 121.0 180.0 11 M8 115.0 22 83.0
EZ702U 145 130
j6
10.0 19.0 24
k6
165 3.5 145 50 40 42 146.0 205.0 11 M8 115.0 22 108.0
EZ703U 145 130
j6
10.0 19.0 24
k6
165 3.5 145 50 40 42 171.0 230.0 11 M8 115.0 22 133.0
EZ705U 145 130
j6
10.0 19.0 32
k6
165 3.5 145 58 71 42 226.0 285.0 11 M12 134.0 22 184.0
EZ802U 190 180
j6
15.0 25.0 32
k6
215 3.5 190 58 71 60 222.0 299.0 13.5 M12 156.5 22 168.0
EZ803U 190 180
j6
15.0 25.0 38
k6
215 3.5 190 80 71 60 263.0 340.0 13.5 M12 156.5 22 209.0
EZ805U 190 180
j6
15.0 25.0 38
k6
215 3.5 190 80 71 60 345.0 422.0 13.5 M12 156.5 22 277.0
