Since the lubricant filling volume of the gear unit depends on the mounting position, the mounting position
must be specified when ordering.
10.5.7 Lubricants
STOBER fills the gear units with the amount and type of lubricant specified on the nameplate. The filling vol-
ume and the structure of the gear units depend on the mounting position.
Only install the gear units in the intended mounting position! Reposition the gear units only after consulting
STOBER. Otherwise, STOBER assumes no liability for the gear units.
You will receive lubricants for use in the food industry upon request.
10.5.8 Position of the plug connectors/terminal box

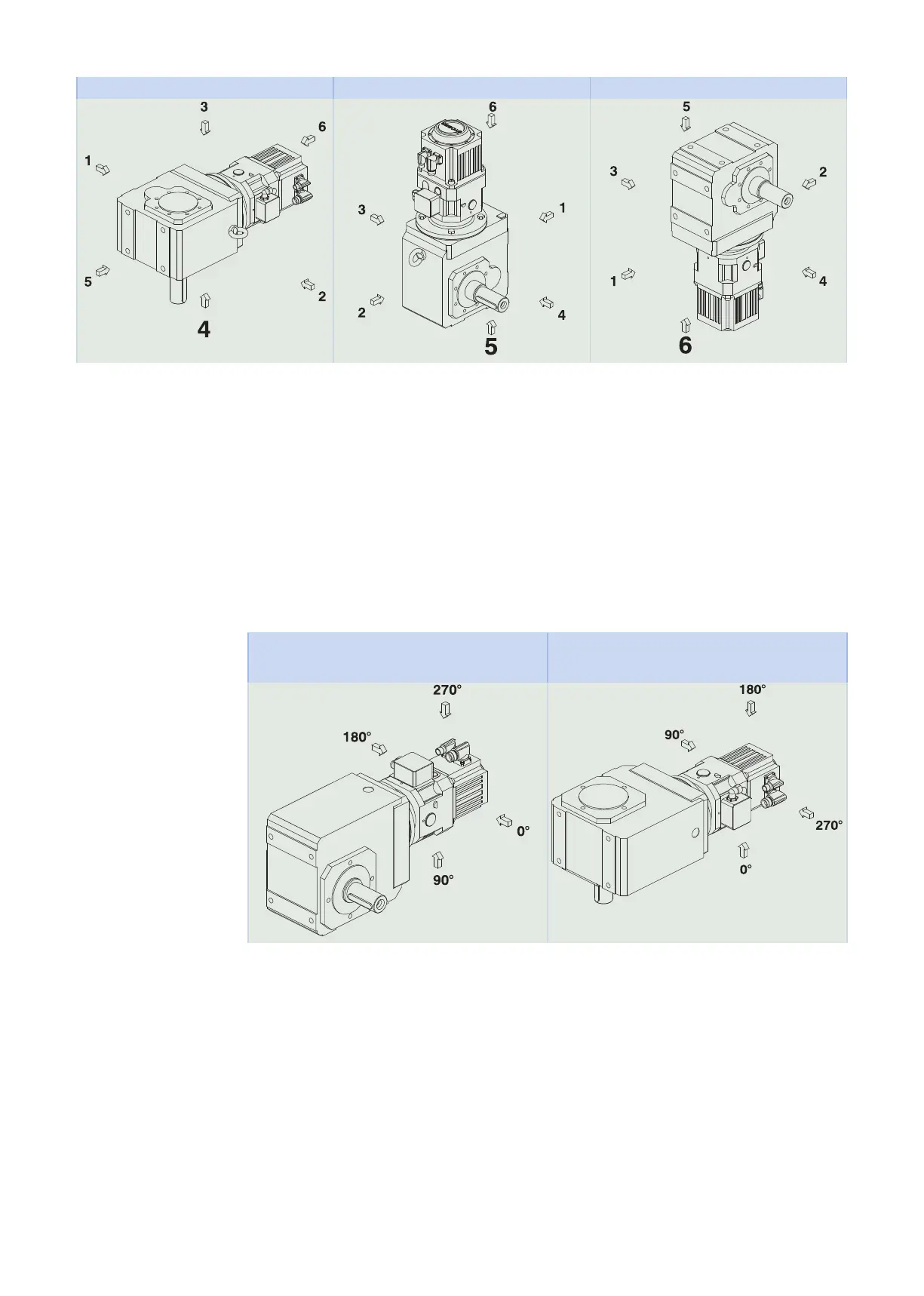

Mounting position EL1
Plug connector in 270° position (standard)
Mounting position EL4
Plug connector in 270° position (standard)
As standard, the plug connectors of the motor or the terminal box/plug connector of the motor adapter are
mounted in the 270° position. The position of the terminal box/plug connector of the motor adapter can be
selected separately from the position of the motor plug connectors.
Indicate variations for your geared motor in the order.
Note that the plug connector position rotates along with the geared motor if the geared motor is in another
mounting position.
