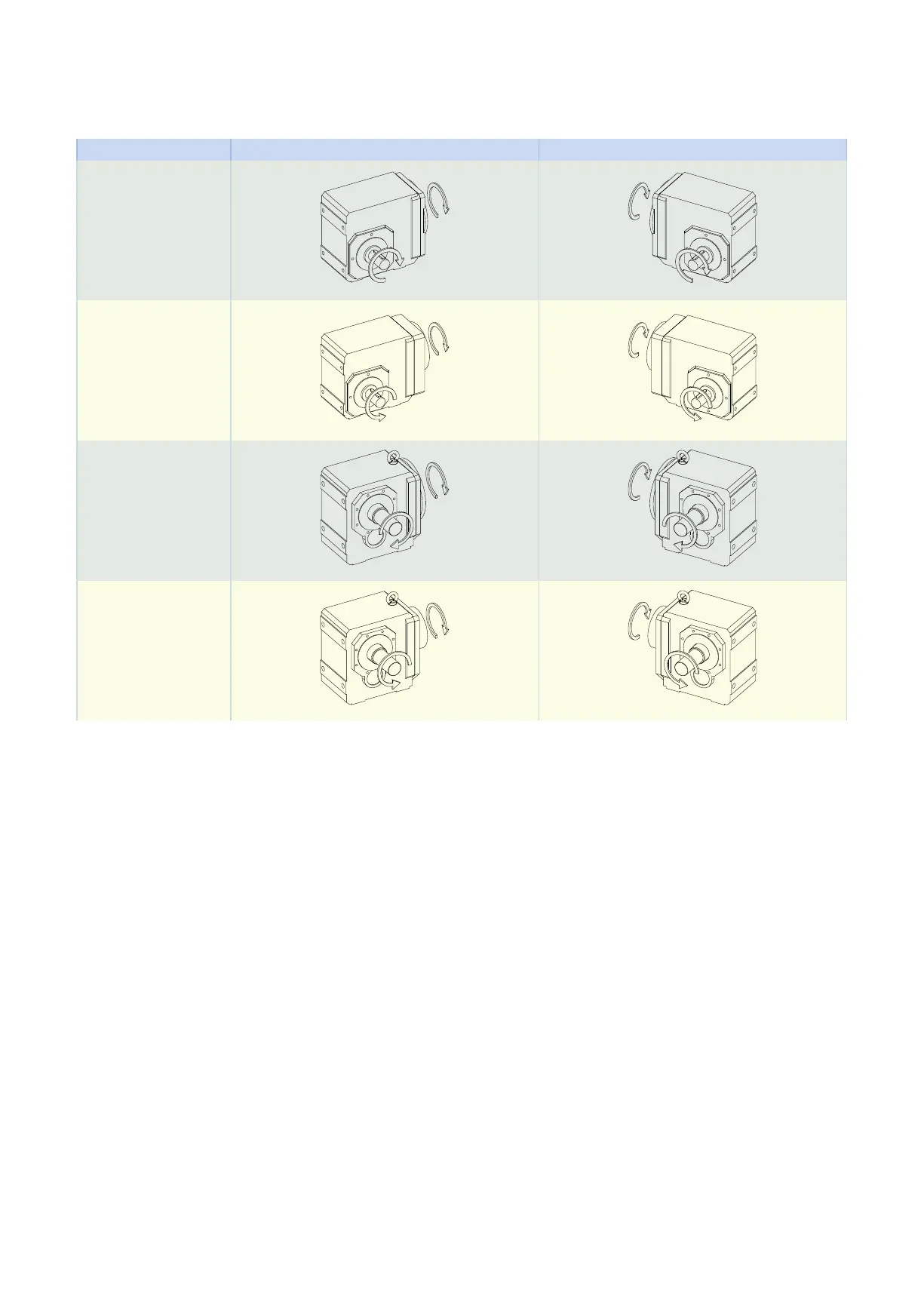

10.5.11 Direction of rotation
Solid shaft (V), solid shaft on both sides (V), hollow shaft with keyway (A)
Type Output side 4 Output side 3
K102 − K402
K203 − K403
K513 − K1013
K514 − K1014
The specified directions of rotation also apply to gear units with hollow shaft (A) if the entry side of the ma-
chine shaft corresponds to the side of the solid shaft that is shown.
The direction of rotation for the shaft design of a solid shaft on both sides corresponds to the direction of
rotation for output side 4.
The pictures show mounting position EL1.
10 Khelical bevel geared motors 10.5 Product description
363
