5.3.2 Solid shaft design with feather key, G housing design (pitch circle diameter)
q1 Applies to motors with brake. x0 Applies to encoders using an optical measuring method.
w1 Different for the One Cable Solution (OCS), see the chap-
ter [}11.4]
C612: Motor adapter and gear unit are sometimes non-coaxial.
Options: C0 − C5 also available with solid shaft without feather key; on request starting at C6.

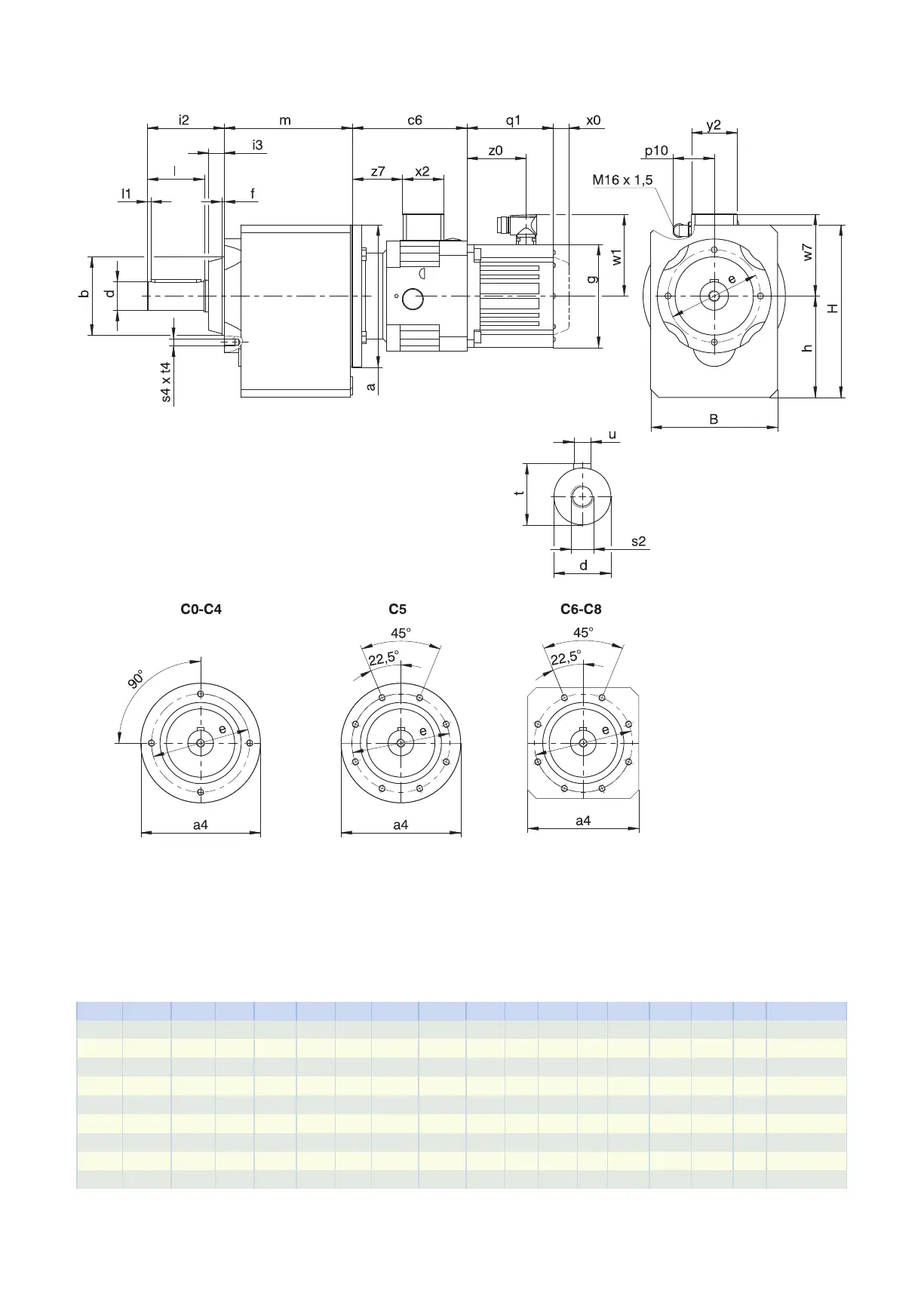

Dimensions of gear units
Type a4
∅
b
B
∅
d
∅
e
f h H i2 i3 l l1 s2 s4 t t4 u
C0 ∅87 55
j6
97 20
k6
75 3.0 79.0 141.0 58 14 40 3 M6 M6 22.5 10 A6×6×32
C1 ∅120 80
j6
130 25
k6
100 3.0 100.0 175.0 71 17 50 5 M10 M6 28.0 13 A8×7×40
C2 ∅140 95
j6
142 30
k6
115 3.0 112.0 192.0 87 22 60 5 M10 M8 33.0 13 A8×7×50
C3 ∅140 95
j6
154 30
k6
115 3.0 127.0 212.0 87 22 60 5 M10 M8 33.0 13 A8×7×50
C4 ∅160 110
j6
178 40
k6
130 3.5 142.5 242.5 108 22 80 5 M16 M10 43.0 16 A12×8×70
C5 ∅192 130
j6
195 40
k6
165 3.5 166.0 286.0 109 23 80 5 M16 M10 43.0 16 A12×8×70
C6 ☐180 140
j6
225 50
k6
165 5.0 195.0 310.0 136 30 100 5 M16 M10 53.5 16 A14×9×90
C7 ☐195 155
j6
265 60
m6
185 8.0 231.0 371.0 164 37 120 5 M20 M12 64.0 19 A18×11×100
C8 ☐226 185
j6
310 70
m6
215 5.0 285.0 445.0 185 37 140 5 M20 M12 74.5 19 A20×12×125
