13.4.3 Connection assignment of the power plug connector
The size and connection plan of the power plug connector depend on the size of the motor. The colors of
the connecting wires inside the motor are specified in accordance with IEC 60757.

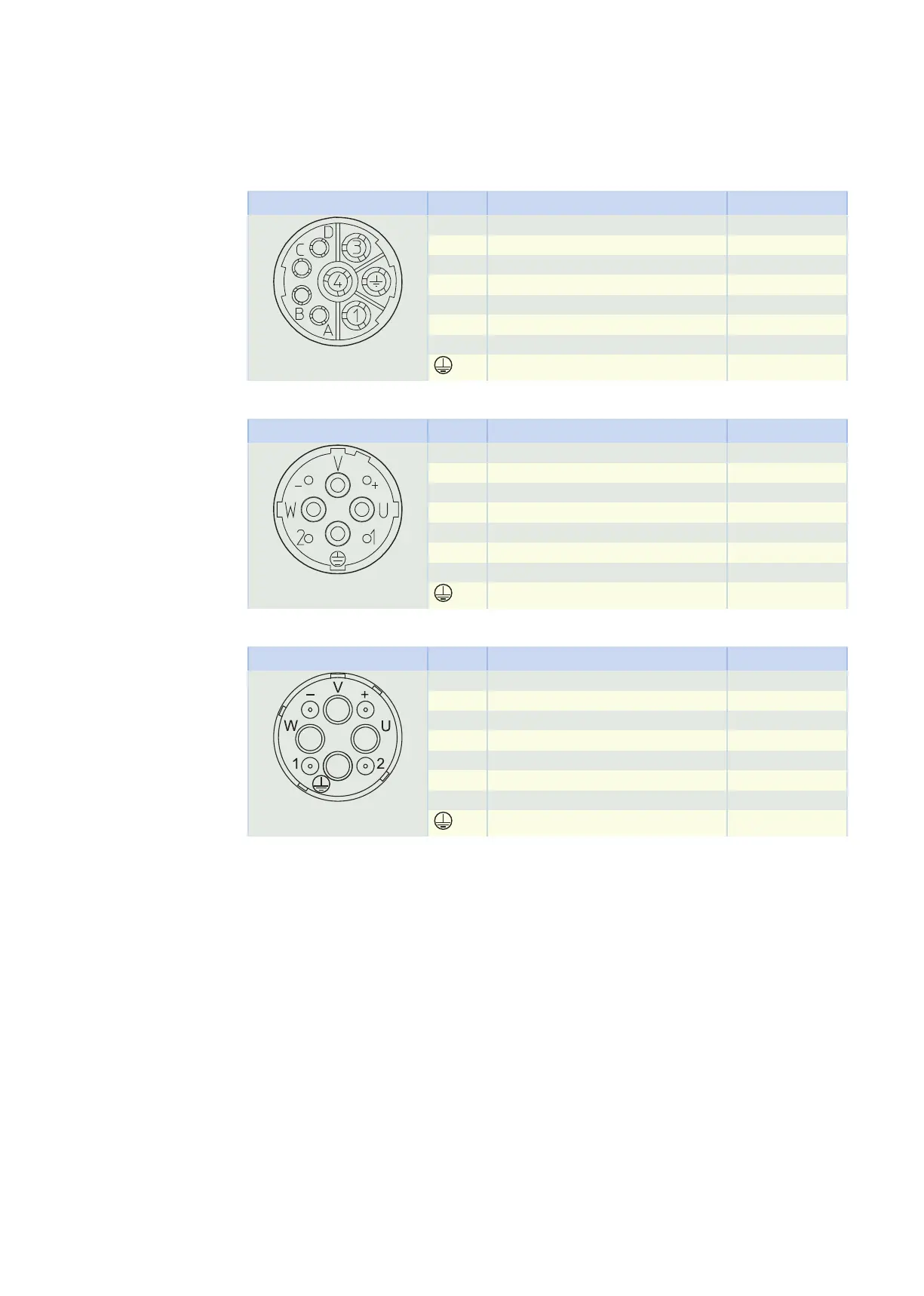

Plug connector size con.23
Connection diagram Pin Connection Color
1 U phase BK
3 W phase RD
4 V phase BU
A Brake + RD
B Brake − BK
C
D
Grounding conductor GNYE
Plug connector size con.40 (1.5)
Connection diagram Pin Connection Color
U U phase BK
V V phase BU
W W phase RD
+ Brake + RD
− Brake − BK
1
2
Grounding conductor GNYE
Plug connector size con.58 (3)
Connection diagram Pin Connection Color
U U phase BK
V V phase BU
W W phase RD
+ Brake + RD
− Brake − BK
1
2
Grounding conductor GNYE
