Stober PK - EZ4 - EZ7 Motors with Forced Ventilation (One Cable Solution)

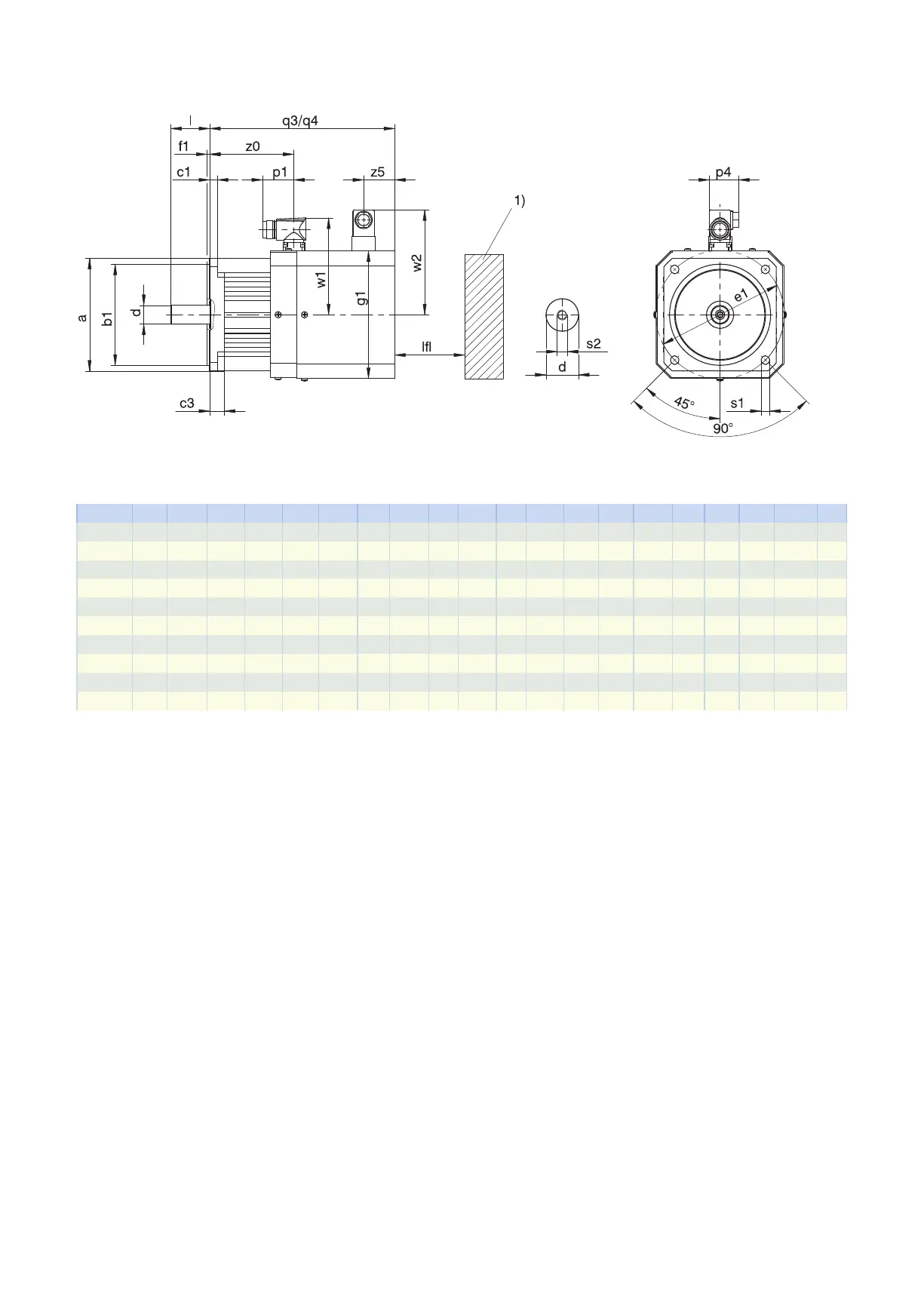

11.4.5 EZ4 – EZ7 motors with forced ventilation (One Cable Solution)
q3 Applies to motors without holding brake q4 Applies to motors with holding brake
1) Machine wall
Type
☐
a
∅
b1
c1 c3
∅
d
∅
e1
f1
☐
g1
l lfl
min
p1 p4 q3 q4
∅
s1
s2 w1 w2 z0 z5
EZ401B 98 95
j6
9.5 20.5 14
k6
115 3.5 118 30 20 40 37.5 175 224 9.0 M5 99 111 76.5 25
EZ402B 98 95
j6
9.5 20.5 19
k6
115 3.5 118 40 20 40 37.5 200 249 9.0 M6 99 111 101.5 25
EZ404B 98 95
j6
9.5 20.5 19
k6
115 3.5 118 40 20 40 37.5 250 299 9.0 M6 99 111 151.5 25
EZ501B 115 110
j6
10.0 16.0 19
k6
130 3.5 135 40 20 40 37.5 179 234 9.0 M6 110 120 74.5 25
EZ502B 115 110
j6
10.0 16.0 19
k6
130 3.5 135 40 20 40 37.5 204 259 9.0 M6 110 120 99.5 25
EZ503B 115 110
j6
10.0 16.0 24
k6
130 3.5 135 50 20 40 37.5 229 284 9.0 M8 110 120 124.5 25
EZ505B 115 110
j6
10.0 16.0 24
k6
130 3.5 135 50 20 40 37.5 279 334 9.0 M8 110 120 174.5 25
EZ701B 145 130
j6
10.0 19.0 24
k6
165 3.5 165 50 30 40 37.5 213 272 11.0 M8 125 134 83.0 40
EZ702B 145 130
j6
10.0 19.0 24
k6
165 3.5 165 50 30 40 37.5 238 297 11.0 M8 125 134 108.0 40
EZ703B 145 130
j6
10.0 19.0 24
k6
165 3.5 165 50 30 40 37.5 263 322 11.0 M8 125 134 133.0 40
