Stober PK - Shaft Design (Solid Shaft), NG Housing Design (Foot + Pitch Circle Diameter)

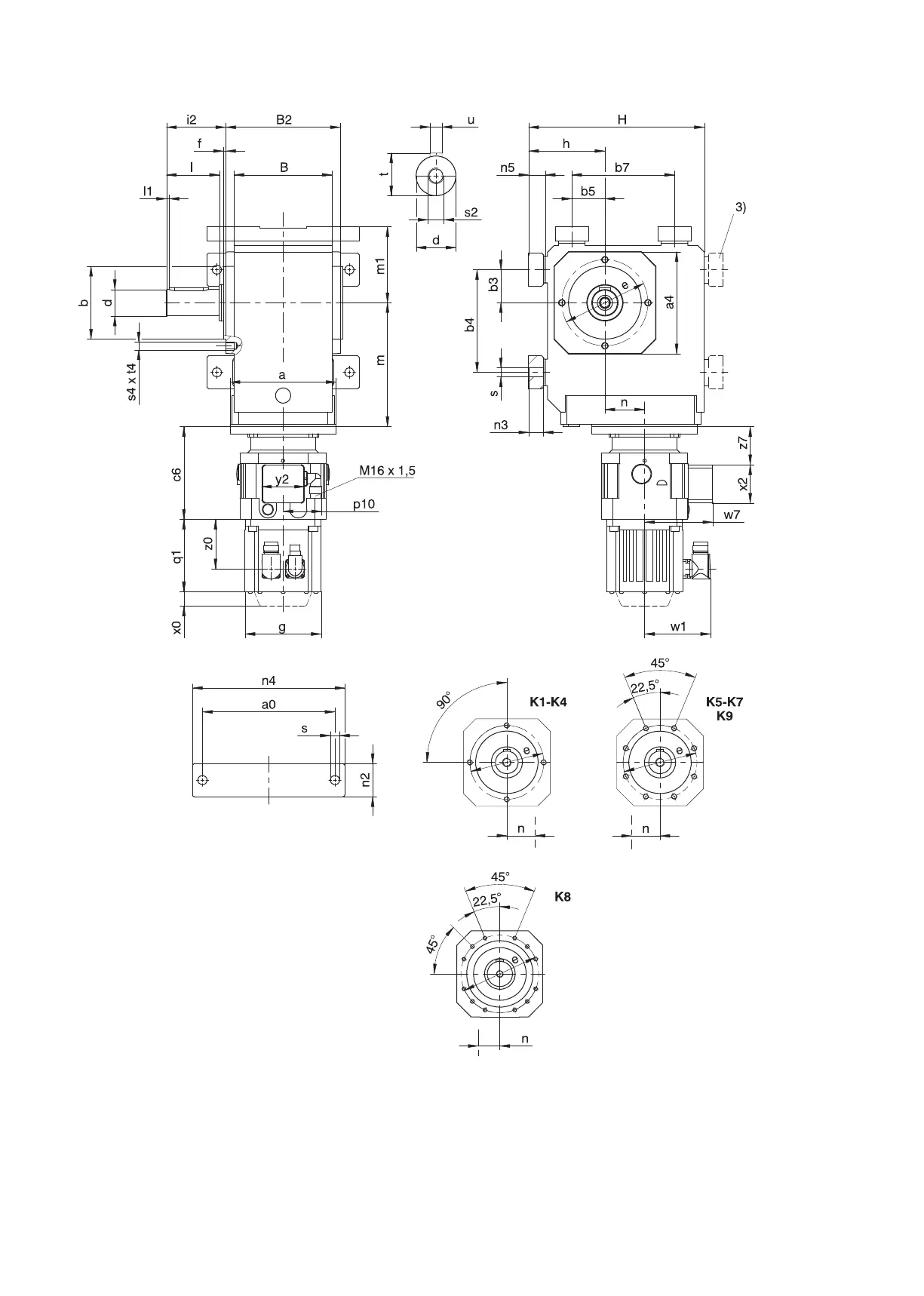

10.3.12 V shaft design (solid shaft), NG housing design (foot + pitch circle diameter)
q1 Applies to motors with brake. x0 Applies to encoders using an optical measuring method.
w1 Different for the One Cable Solution (OCS), see the chap-
ter [}11.4]
3) Only for K1 (other sizes on request)
− K1 – K4: Solid shaft without feather key available, on re-
quest starting at K5.
− K1 − K10: Solid shaft on both sides available.
10.3 Dimensional drawings 10 Khelical bevel geared motors
346
