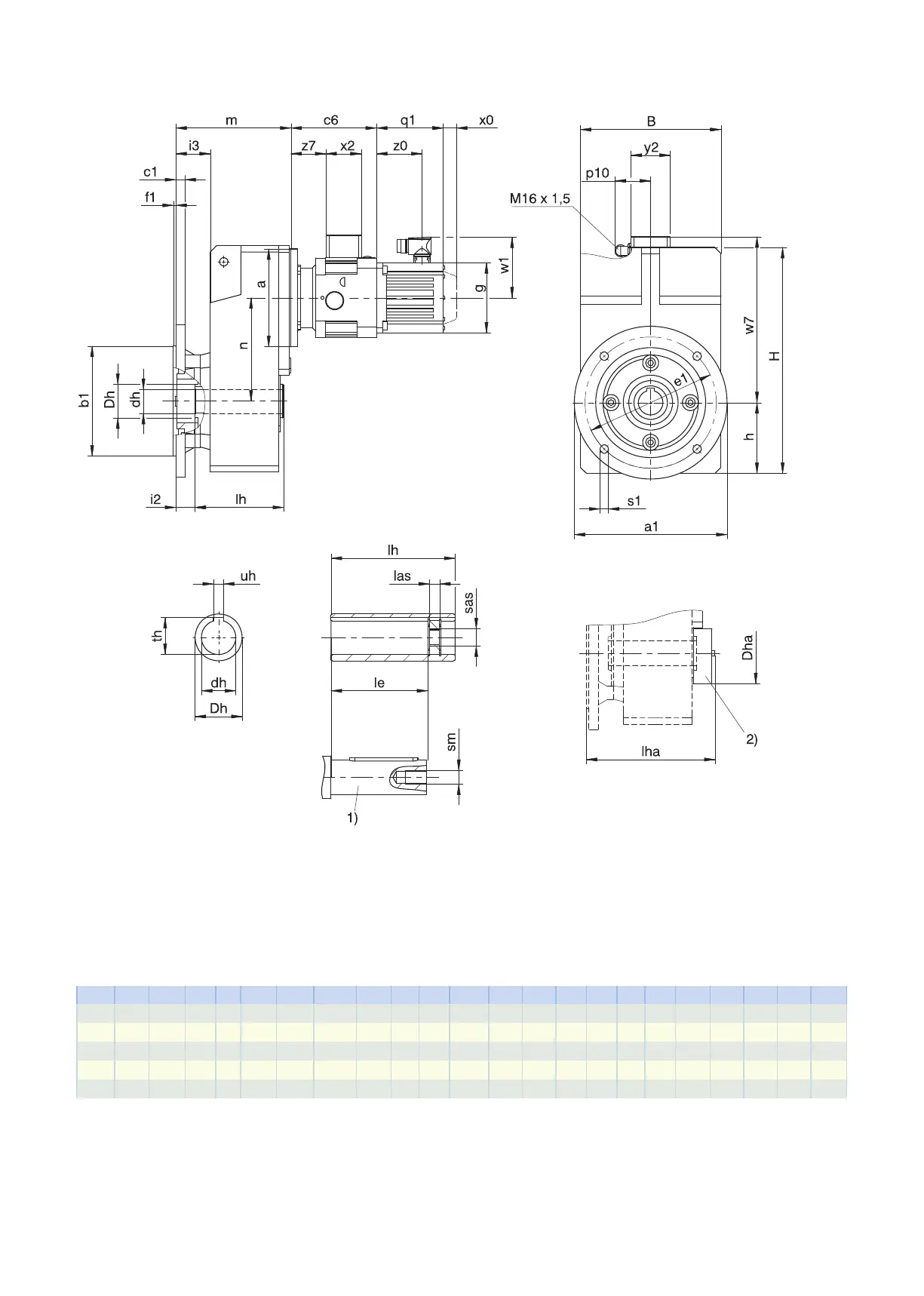

6.3.3 A shaft design (hollow shaft), F housing design (round flange)
q1 Applies to motors with brake. x0 Applies to encoders using an optical measuring method.
w1 Different for the One Cable Solution (OCS), see the chap-
ter [}11.4]
1) The length of the machine shaft must be at least 2.2 x
∅dh and the length of the feather key must be at least 2 x
∅dh.
2) Cover (optional)
Dimensions of gear units
Type
∅
a1
∅
b1
B c1
∅
dh
∅
Dh
∅
Dha
∅
e1
f1 h H i2 i3 le lh las lha
∅
s1
sm sas th uh
F1 160 110
j6
145 10 20
H7
35 70 130 3.5 74 238.0 25.5 44.5 73 95 12 112 9 M6 M8 22.8 6
JS9
F2 200 130
j6
180 14 25
H7
45 82 165 3.5 93 299.0 30.0 53.0 92 115 12 132 11 M10 M12 28.3 8
JS9
F3 250 180
j6
206 15 30
H7
50 88 215 4.0 106 335.5 31.5 56.5 103 130 12 157 14 M10 M12 33.3 8
JS9
F4 250 180
j6
230 15 40
H7
55 100 215 4.0 116 370.0 31.5 56.5 114 145 12 175 14 M16 M20 43.3 12
JS9
F6 300 230
j6
265 17 50
H7
70 115 265 4.0 137 433.0 29.5 60.5 143 180 12 194 14 M16 M20 53.8 14
JS9
