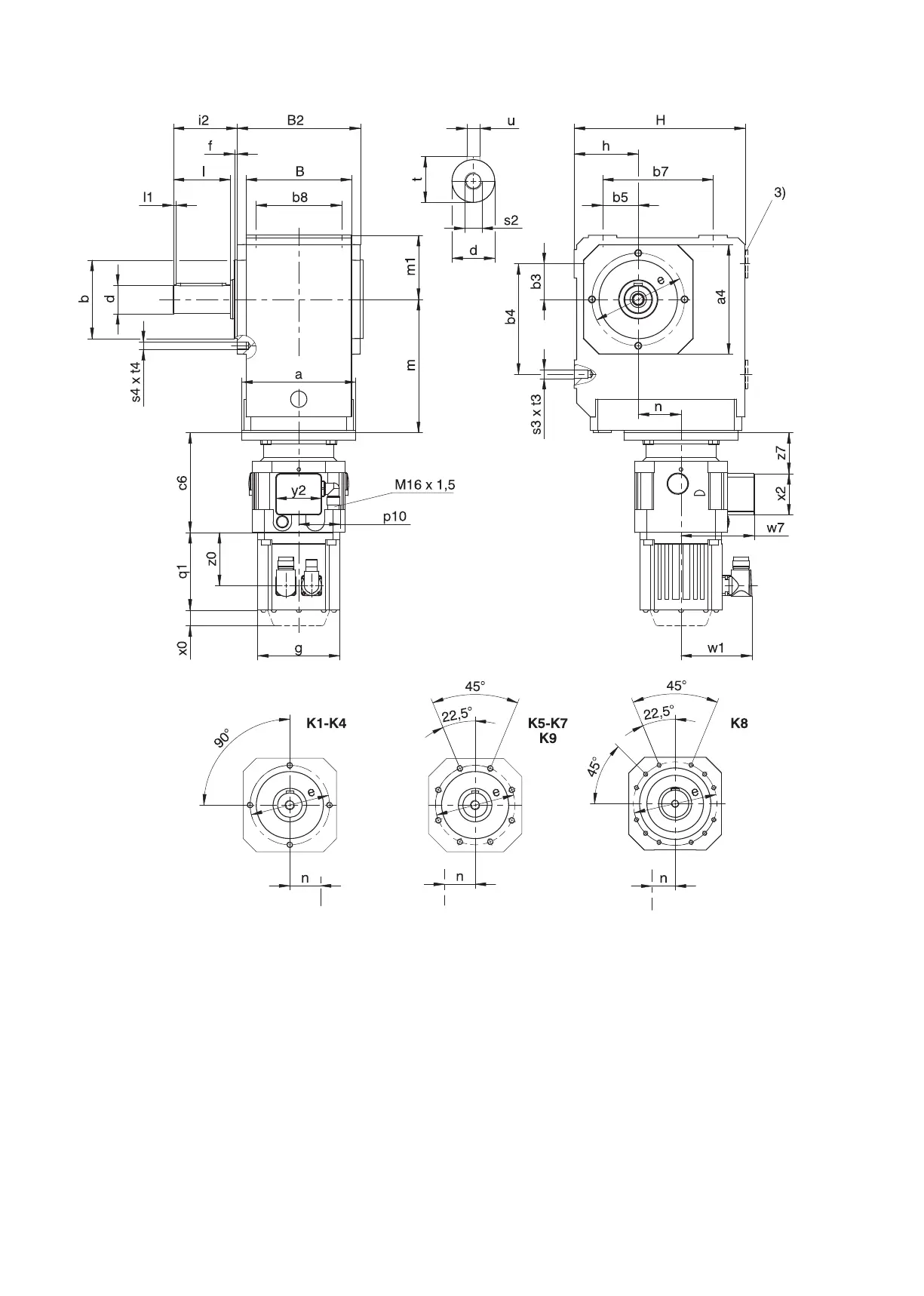

10.3.11 V shaft design (solid shaft), G housing design (pitch circle diameter)
q1 Applies to motors with brake. x0 Applies to encoders using an optical measuring method.
w1 Different for the One Cable Solution (OCS), see the chap-
ter [}11.4]
3) Only for K1 (other sizes on request)
− K1 – K4: Solid shaft without feather key available, on re-
quest starting at K5.
− K1 − K9: Solid shaft on both sides available.
10.3 Dimensional drawings 10 Khelical bevel geared motors
344
