13.5.4 Connection assignment of the encoder plug connector
The size and connection assignment of the encoder plug connectors depend on the model of encoder in-
stalled and the size of the motor. The colors of the connecting wires inside the motor are specified in accor-
dance with IEC 60757.
EnDat 2.1 encoder with sin/cos incremental signals, plug connector size con.23
This connection assignment only applies to the IndraDrive C/Cs drive controller.

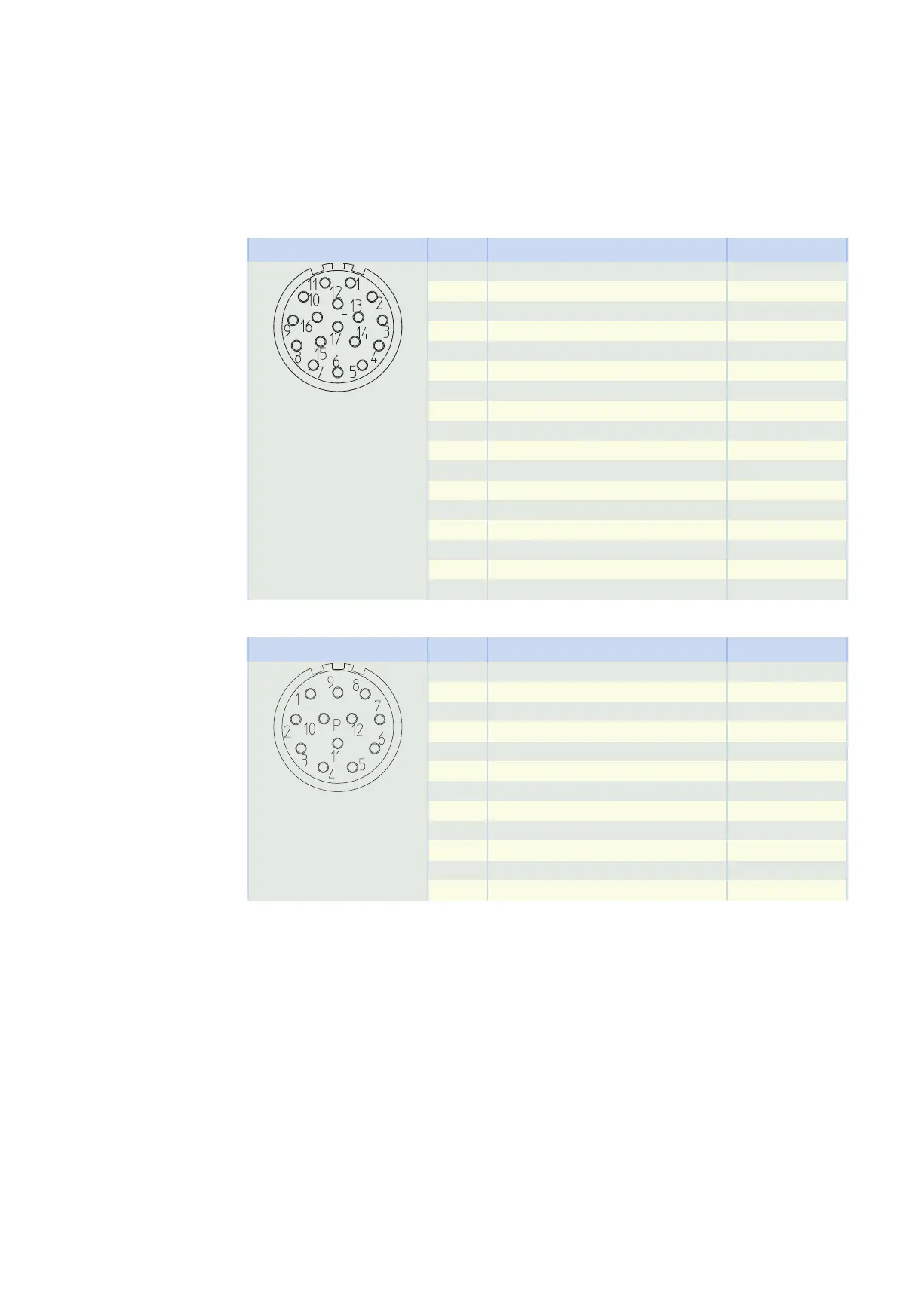

Connection diagram Pin Connection Color
1 Up sense BU
2
3
4 0 V sense WH
5
6
7 Up + BNGN
8 Clock + VT
9 Clock − YE
10 0 V GND WHGN
11
12 B + (Sin +) BUBK
13 B − (Sin −) RDBK
14 Data + GY
15 A + (Cos +) GNBK
16 A − (Cos −) YEBK
17 Data − PK
Hiperface encoder, plug connector size con.23
Connection diagram Pin Connection Color
1 Us RD
2 0 V GND BU
3 REFSIN BN
4 REFCOS BK
5 Data + GY
6 Data − GN
7 + SIN WH
8 + COS PK
9
10
11
12
