Stober PK - S Shaft Design (Hollow Shaft with Shrink Ring), F Housing Design (Round Flange)

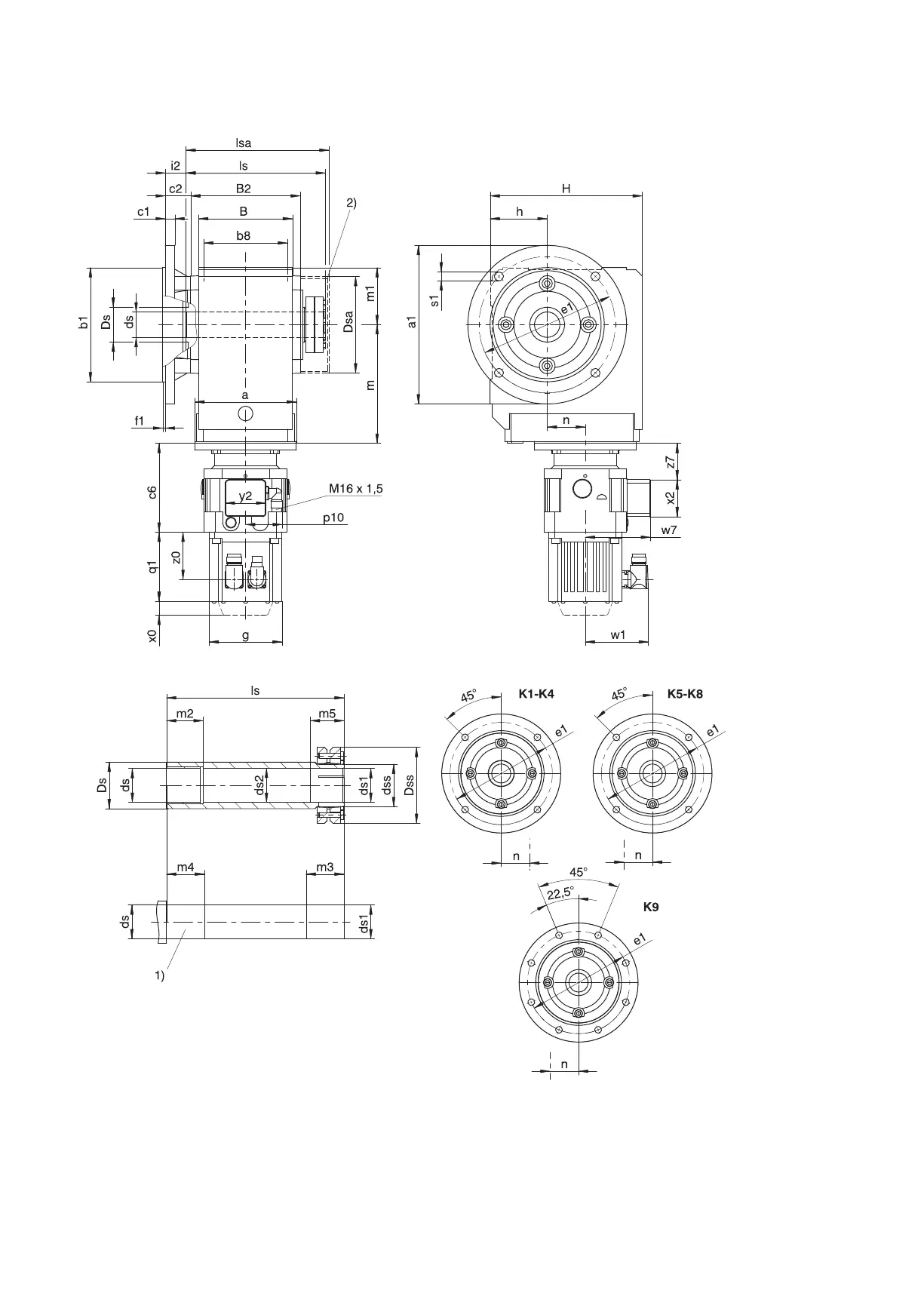

10.3.9 S shaft design (hollow shaft with shrink ring), F housing design (round
flange)
q1 Applies to motors with brake. x0 Applies to encoders using an optical measuring method.
w1 Different for the One Cable Solution (OCS), see the chap-
ter [}11.4]
1) Machine shaft: The dimension ls must meet or exceed the
specified value.
2) Cover (optional)
10.3 Dimensional drawings 10 Khelical bevel geared motors
340
